LRD05

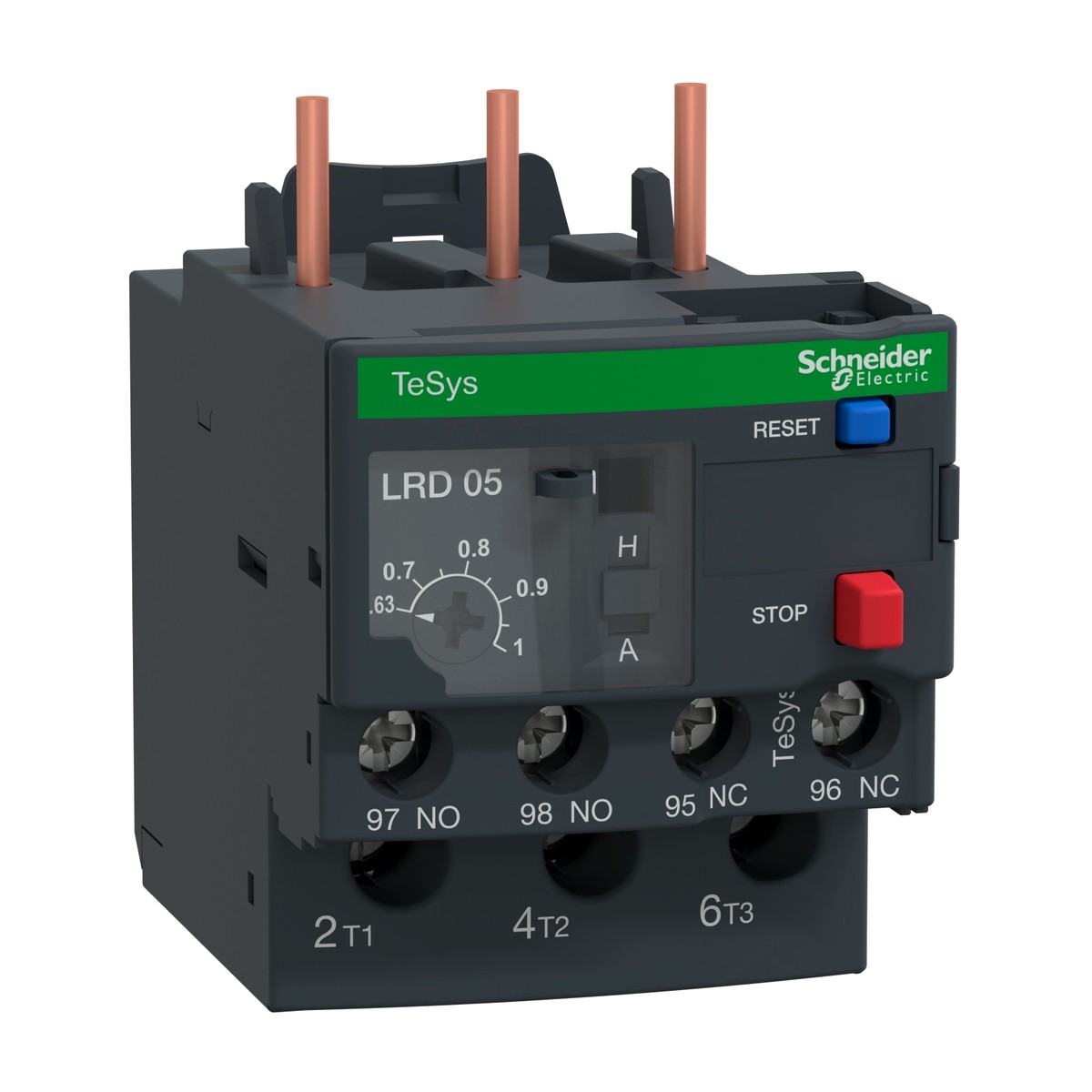

Schneider Electric LRD05 TeSys Deca Thermal Overload Relay 0.63-1A 1NO+1NC Class 10A. Ensure robust motor protection in demanding industrial environments with the Schneider Electric LRD05 thermal overload relay. Part of the renowned TeSys Deca range, this differential thermal overload relay is engineered to safeguard motors against sustained overloads and phase failure, crucial for operational continuity. The Schneider Electric LRD05 offers a precise thermal protection adjustment range from 0.63 to 1 Ampere and features a Class 10A tripping characteristic, compliant with IEC 60947-4-1 standards. It integrates seamlessly with Schneider Electric LC1D contactors, including LC1D09 to LC1D38 models, and provides essential signalling through its 1 NO + 1 NC auxiliary contacts. Rated for 690V AC operational voltage and suitable for both AC and DC networks, this relay is vital for applications requiring reliable motor control. Typical installations can be found across various sectors in Egypt and the Gulf, such as water treatment plants, HVAC systems in large buildings, light machinery in food and beverage facilities, and textile manufacturing. Its compact design, IP20 protection, and screw clamp terminals make installation straightforward. For dependable motor protection, request a quote for the Schneider Electric LRD05 today.
Details
- Brand: Schneider Electric
- Part number: LRD05
- Series: TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- TeSys Deca LRD06 Thermal Overload Relay 1-1.6A Class 10A
- Schneider Electric LRD08 — TeSys Deca Thermal Overload Relay 2.5-4A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LRD10 thermal overload relay, 690VAC, 3P, 4-6A, 1NO+1NC, Class 10A
- Schneider Electric LRD12 — Thermal overload relay, 5.5-8A, 1NO+1NC, Class 10A, screw clamp
- Schneider Electric LRD14 — TeSys Deca thermal overload relay 7-10A 1NO+1NC Class 10A screw clamp
- TeSys Deca LRD3322 Thermal Overload Relay
- TeSys Deca LRD3363 thermal overload relay 63-80A Class 10A
- Schneider Electric LRD35 — TeSys Deca Thermal Overload Relay 690VAC 30-38A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LC2D09B7 Reversing Contactor, 3P 9A AC-3, 24V AC Coil, Mechanical Interlock
- TeSys Deca LC2D09BD Reversing Contactor 9A AC-3 3P with 24V DC coil
- TeSys Deca LC2D09BL reversing contactor 9A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D09E7 reversing contactor 9 A AC-3 3P with 48 V AC 50/60Hz coil
Specifications
- Net weight
- 0.124 Kg
- Control type
- Red push-button: stop, Blue push-button: reset
- Network type
- AC, DC
- Mounting support
- Under contactor
- Product compatibility
- LC1D25, LC1D38, LC1D12, LC1D32, LC1D18, LC1D09
- Dimensions (H x W x D)
- 66 Mm x 45 Mm x 70 Mm
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LRD05
- Temperature compensation
- -20…60 °C
- Product or component type
- Differential thermal overload relay
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ue] rated operational voltage
- 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
- Tightening torque (Power circuit)
- 1.7 N.m - on screw clamp terminals
- Thermal protection adjustment range
- 0.63…1 A
- Ambient air temperature for operation
- -20…60 °C without derating conforming to IEC 60947-4-1
- Power circuit connections - terminals
- screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end
