LRD3363

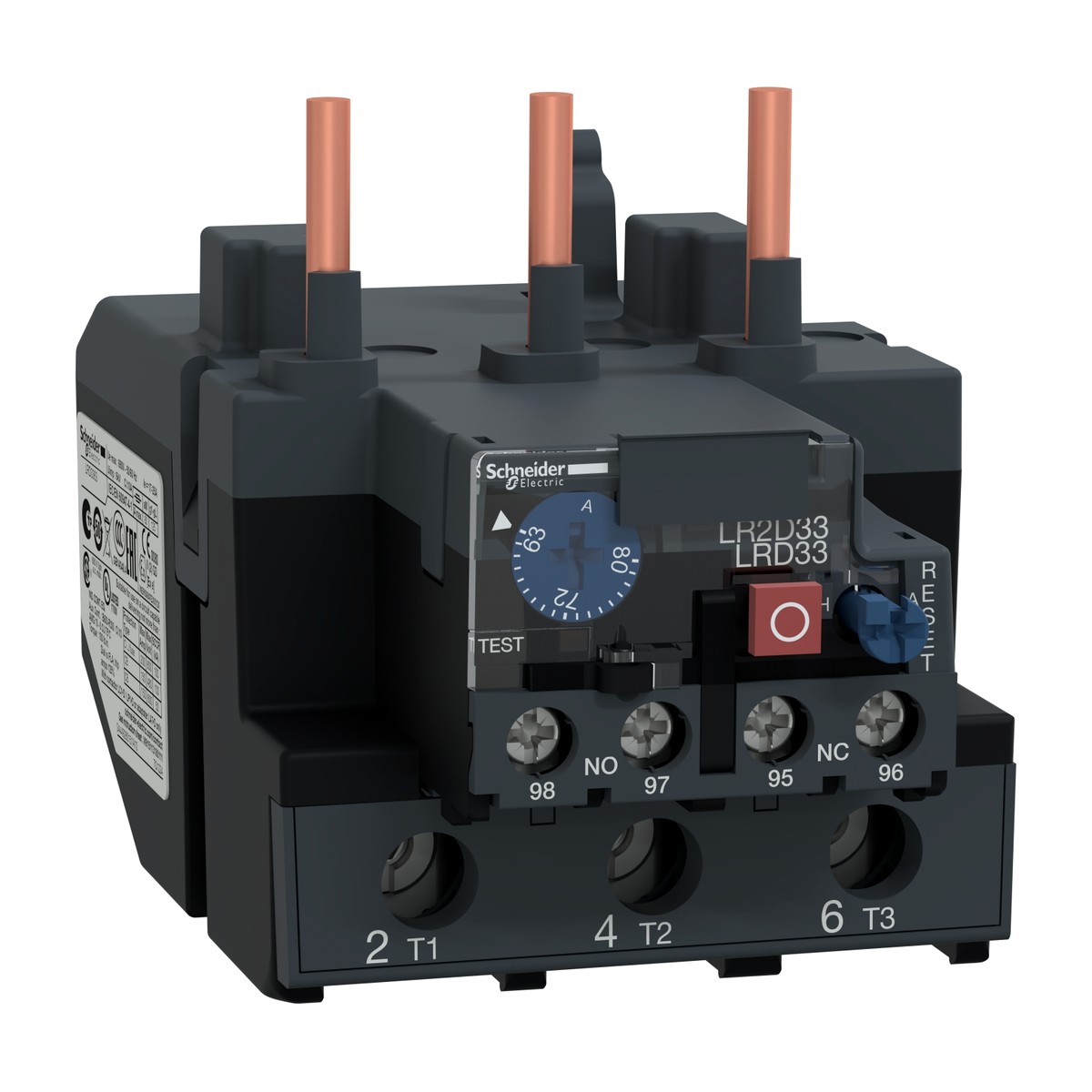

Schneider Electric LRD3363 TeSys Deca thermal overload relay 63-80A Class 10A. The Schneider Electric LRD3363 is a TeSys Deca thermal overload relay providing essential motor protection against sustained overloads and phase failure. This differential relay features an adjustable thermal protection range of 63 to 80 Amperes, Class 10A, ensuring rapid and reliable tripping. It is compatible with LC1D80 and LC1D95 contactors, offering flexible mounting options (plate, rail, or under contactor). Supporting AC and DC networks from 0 to 400 Hz and rated for operational voltages up to 1000V AC, the LRD3363 includes 1 NO + 1 NC auxiliary contacts and an IP20 protection rating. This Schneider Electric relay is crucial for motor control in demanding industrial environments across Egypt and the Gulf, including cement, oil and gas, water treatment, food and beverage, textiles, and building services.
Details
- Brand: Schneider Electric
- Part number: LRD3363
- Series: TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- Schneider Electric LRD35 — TeSys Deca Thermal Overload Relay 690VAC 30-38A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LC2D09B7 Reversing Contactor, 3P 9A AC-3, 24V AC Coil, Mechanical Interlock
- TeSys Deca LC2D09BD Reversing Contactor 9A AC-3 3P with 24V DC coil
- TeSys Deca LC2D09BL reversing contactor 9A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D09E7 reversing contactor 9 A AC-3 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC2D09FE7 Reversing Contactor 9A AC-3 3P with 115V AC 50/60Hz coil
- TeSys Deca LC2D09M7 reversing contactor 9A AC-3 3P with 220V AC coil
- TeSys Deca LC2D09P7 Reversing Contactor, 9A AC-3, 3P, 230V AC Coil
- TeSys Deca LC2D09Q7 Reversing Contactor 9A AC-3 3P 380V AC 50/60Hz coil
- TeSys Deca LC2D09U7 Reversing Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC2D09V7 Reversing Contactor, 3P(3NO), 9A AC-3, 400V AC Coil, Screw Clamp
- TeSys Deca LC2D12B7 reversing contactor 3P(3NO) AC-3 12A with 24V AC 50/60Hz coil
Specifications
- Standards
- EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495
- Net weight
- 0.51 Kg
- Control type
- Red push-button: stop; Blue push-button: reset
- Network type
- DC, AC
- Mounting support
- Plate, with specific accessories; Rail, with specific accessories; Under contactor
- Network frequency
- 0...400 Hz
- Product compatibility
- LC1D80, LC1D95
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LRD3363
- Phase failure sensitivity
- Tripping current 130 % of Ir on two phase, the last one at 0
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ui] rated insulation voltage
- Power circuit: 1000 V conforming to IEC 60947-4-1
- [Ue] rated operational voltage
- 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
- Thermal protection adjustment range
- 63…80 A
- Ambient air temperature for operation
- -20…60 °C without derating conforming to IEC 60947-4-1
- Connections - terminals (Power circuit)
- screw clamp terminals 1 cable(s) 4…35 mm²
- Connections - terminals (Control circuit)
- screw clamp terminals 2 cable(s) 1…2.5 mm²
