LC2D09B7

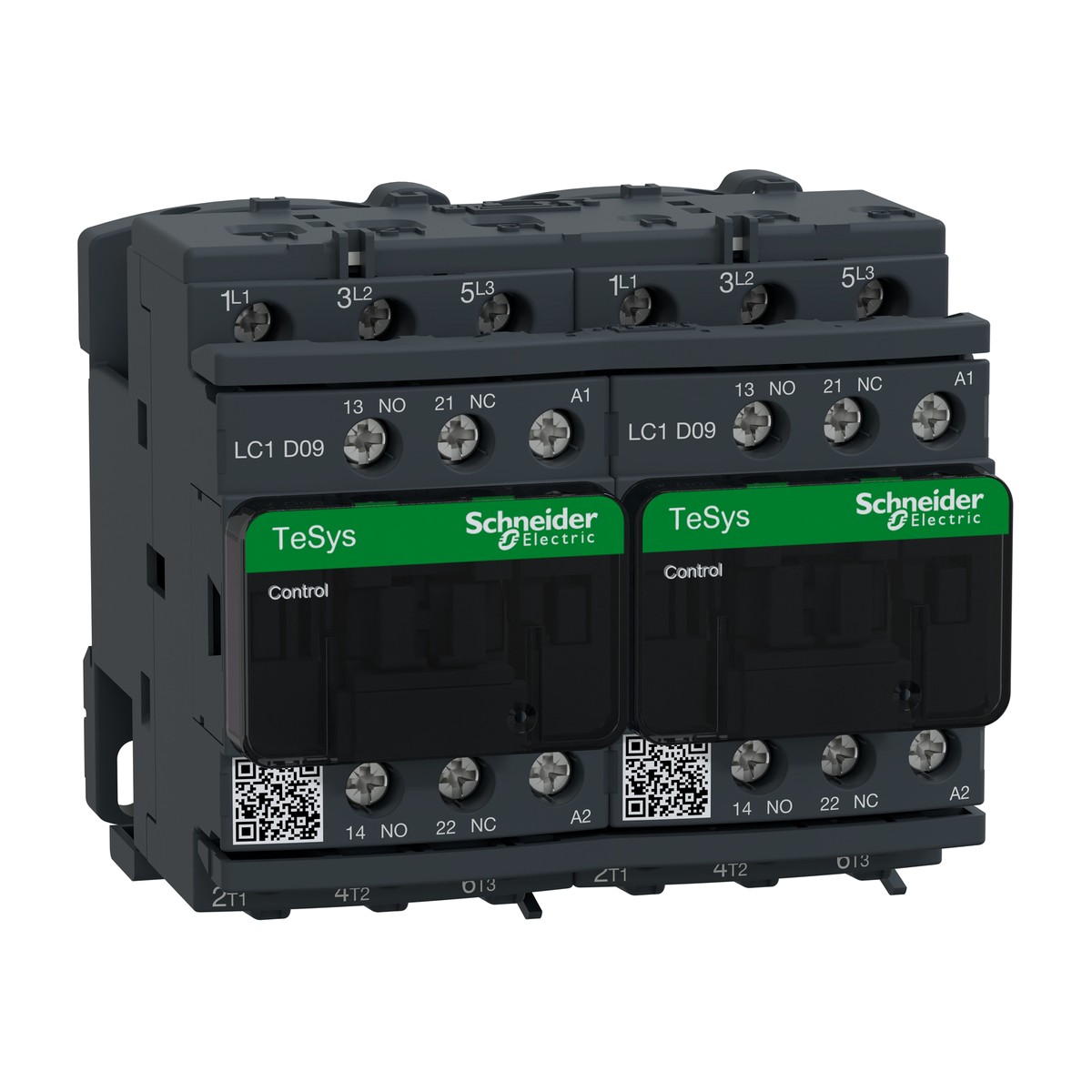

Schneider Electric LC2D09B7 TeSys Deca Reversing Contactor, 3P 9A AC-3, 24V AC Coil, Mechanical Interlock. The Schneider Electric LC2D09B7 is a TeSys Deca reversing contactor, pre-assembled with a power busbar and robust mechanical interlocking, engineered for reliable motor control and resistive load applications. This robust 3-pole unit features 3 NO contacts, rated for an operational current of 9A (AC-3) at <=440V and capable of handling 4 kW motor power at 380-400V AC. Its 24V AC 50/60Hz coil is ideally suited for common industrial control systems throughout Egypt and the Gulf region, making it a critical component for maintaining operational continuity. Equipped with convenient screw clamp terminals for both power and control circuits, installation and wiring are straightforward. The integrated mechanical interlock enhances safety by preventing simultaneous closure of both contactors. Suitable for demanding environments with an IP20 front face rating and an operating temperature range of -40 to 60 °C, the LC2D09B7 ensures consistent performance in sectors like water treatment, oil and gas, cement production, food and beverage, textiles, and building services. Its high mechanical durability of 15 Mcycles underscores its long-term reliability.
Details
- Brand: Schneider Electric
- Part number: LC2D09B7
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D09BD Reversing Contactor 9A AC-3 3P with 24V DC coil
- TeSys Deca LC2D09BL reversing contactor 9A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D09E7 reversing contactor 9 A AC-3 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC2D09FE7 Reversing Contactor 9A AC-3 3P with 115V AC 50/60Hz coil
- TeSys Deca LC2D09M7 reversing contactor 9A AC-3 3P with 220V AC coil
- TeSys Deca LC2D09P7 Reversing Contactor, 9A AC-3, 3P, 230V AC Coil
- TeSys Deca LC2D09Q7 Reversing Contactor 9A AC-3 3P 380V AC 50/60Hz coil
- TeSys Deca LC2D09U7 Reversing Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC2D09V7 Reversing Contactor, 3P(3NO), 9A AC-3, 400V AC Coil, Screw Clamp
- TeSys Deca LC2D12B7 reversing contactor 3P(3NO) AC-3 12A with 24V AC 50/60Hz coil
- TeSys Deca LC2D12BD reversing contactor 12 A AC-3 3P with 24V DC coil
- Schneider Electric LC2D12BL — TeSys Deca LC2D Reversing Contactor, 3P 12A AC-3, 24V DC Coil
Specifications
- Net weight
- 0.687 Kg
- Motor power kW
- 4 KW at 380...400 V AC 50...60 Hz
- Device short name
- LC2D
- Interlocking type
- Mechanical
- Poles description
- 3P
- Control circuit type
- AC at 50/60 Hz
- Utilisation category
- AC-3, AC-1, AC-3e
- Contactor application
- Motor control, Resistive load
- Mechanical durability
- 15 Mcycles
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D09B7
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 24 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1
- [Ie] rated operational current
- 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
- Ambient air temperature for operation
- -40…60 °C
