LC2D09BL

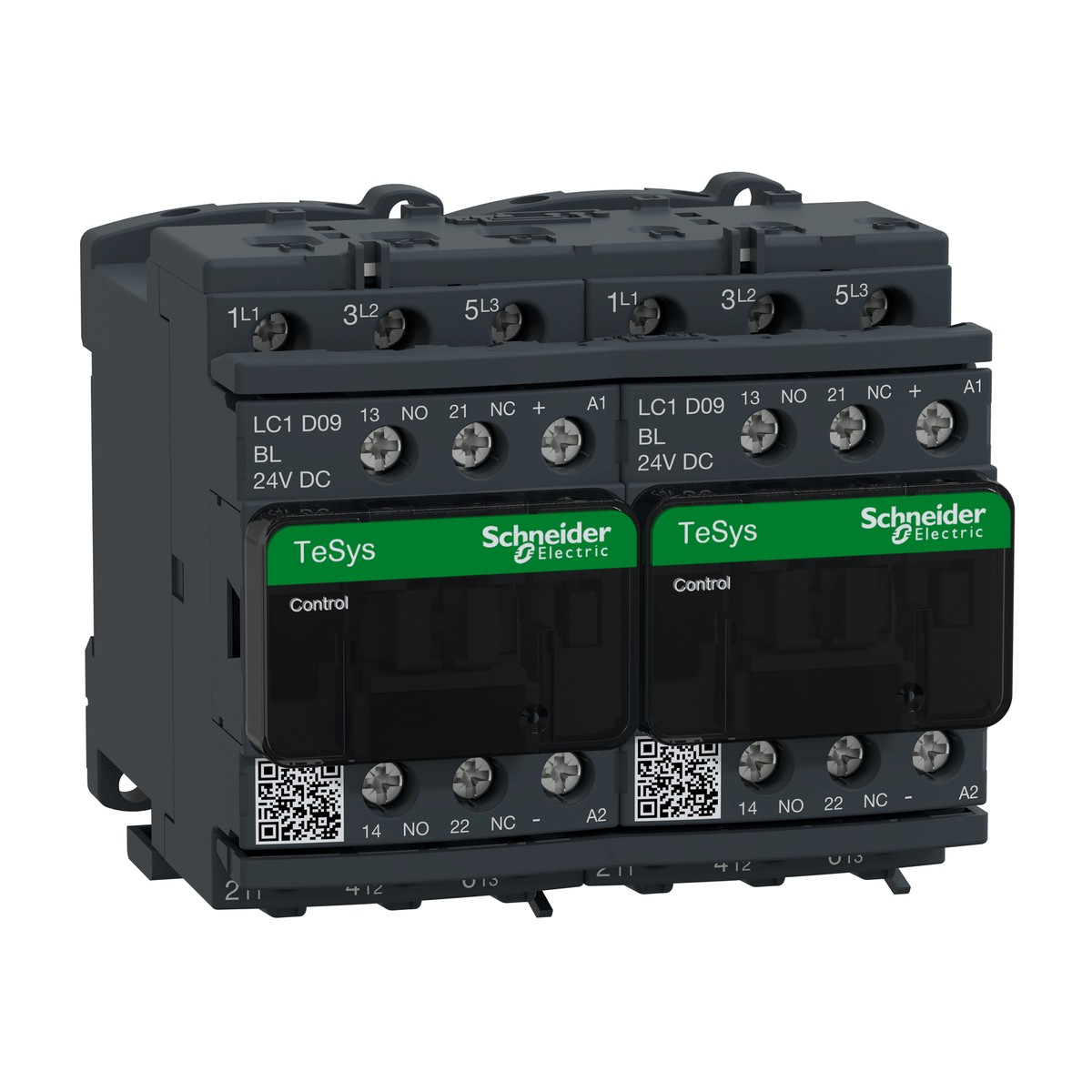

Schneider Electric LC2D09BL TeSys Deca reversing contactor 9A AC-3 3P 24V DC low consumption coil. The Schneider Electric LC2D09BL is a high-performance TeSys Deca reversing contactor, pre-assembled with a power busbar and integrated mechanical interlock for reliable motor control applications. This robust 3-pole contactor is rated for 9A AC-3 at <=440V, making it suitable for motor switching and other demanding industrial loads up to 4 kW at 380-400V AC. It features a highly efficient 24V DC low consumption control coil, ideal for modern control systems, and includes screw clamp terminals for secure and straightforward wiring. The LC2D09BL also provides 1 NO + 1 NC auxiliary contacts for versatile control circuit integration. Designed for durability, the LC2D09BL boasts an IP20 front face protection and a mechanical durability of 30 million cycles, ensuring long-term operation even in challenging environments. This Schneider Electric reversing contactor is a crucial component for applications requiring directional control of motors in industries prevalent across Egypt and the Gulf, such as cement plants, oil and gas facilities, water treatment plants, and food and beverage processing. Its reliable performance and 24V DC coil make it an excellent choice for replacement or new installations.
Details
- Brand: Schneider Electric
- Part number: LC2D09BL
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC2D09E7 reversing contactor 9 A AC-3 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC2D09FE7 Reversing Contactor 9A AC-3 3P with 115V AC 50/60Hz coil
- TeSys Deca LC2D09M7 reversing contactor 9A AC-3 3P with 220V AC coil
- TeSys Deca LC2D09P7 Reversing Contactor, 9A AC-3, 3P, 230V AC Coil
- TeSys Deca LC2D09Q7 Reversing Contactor 9A AC-3 3P 380V AC 50/60Hz coil
- TeSys Deca LC2D09U7 Reversing Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC2D09V7 Reversing Contactor, 3P(3NO), 9A AC-3, 400V AC Coil, Screw Clamp
- TeSys Deca LC2D12B7 reversing contactor 3P(3NO) AC-3 12A with 24V AC 50/60Hz coil
- TeSys Deca LC2D12BD reversing contactor 12 A AC-3 3P with 24V DC coil
- Schneider Electric LC2D12BL — TeSys Deca LC2D Reversing Contactor, 3P 12A AC-3, 24V DC Coil
- TeSys Deca LC2D12E7 Reversing Contactor, 12A AC-3, 3P, 48V AC Coil, Screw Clamp Terminals
- TeSys Deca LC2D12ED Reversing Contactor 12A AC-3 3P 48V DC coil
Specifications
- Net weight
- 1.017 Kg
- Motor power kW
- 4 KW at 380...400 V AC 50...60 Hz
- Device short name
- LC2D
- Interlocking type
- Mechanical
- Poles description
- 3P
- Device presentation
- Preassembled with reversing power busbar
- Control circuit type
- DC low consumption
- Utilisation category
- AC-3, AC-1, AC-3e
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D09BL
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1
- [Ie] rated operational current
- 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Ambient air temperature for operation
- -40…60 °C
