LC2D12ED

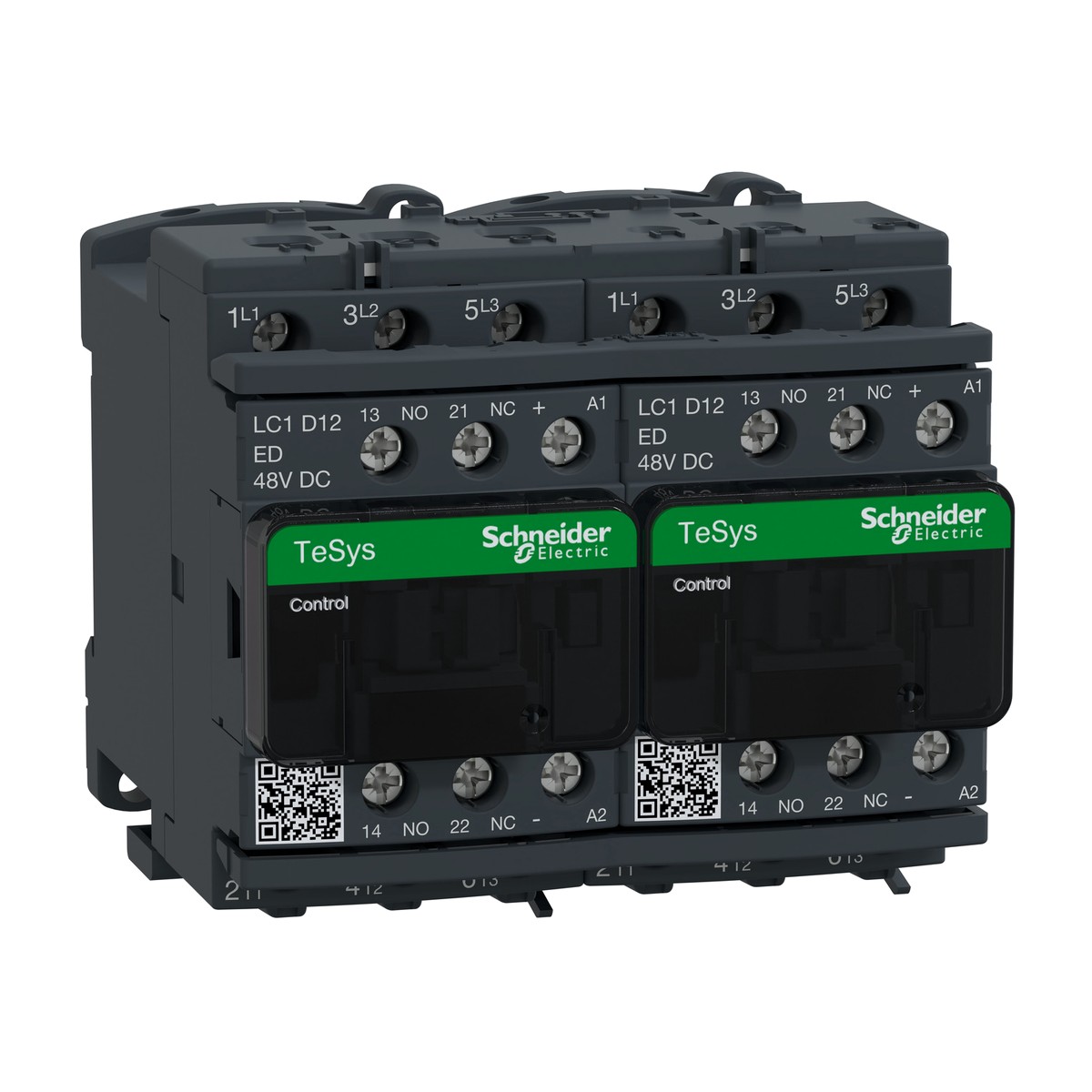

Schneider Electric LC2D12ED TeSys Deca Reversing Contactor 12A AC-3 3P 48V DC coil. The Schneider Electric TeSys Deca LC2D12ED is a robust, pre-assembled reversing contactor engineered for reliable motor control and resistive load applications. This 3-pole contactor features 3 normally open (NO) power contacts and is rated for a 12 A AC-3 operational current (for motor control) and 25 A AC-1 (for resistive loads) at up to 440 V AC. It incorporates a 48 V DC control coil and convenient screw clamp terminals for secure and straightforward wiring. Designed with a mechanical interlock for enhanced safety in reversing operations, it also includes a 1 NO + 1 NC auxiliary contact composition. With an IP20 front face protection and compliance with key standards like IEC 60947-4-1, the LC2D12ED is suitable for diverse industrial environments across Egypt and the Gulf. Typical applications include pump control in water treatment, conveyor systems in cement and food & beverage facilities, and various building services.
Details
- Brand: Schneider Electric
- Part number: LC2D12ED
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- Schneider Electric LC2D12F7 — TeSys Deca reversing contactor 12A AC-3 3P with 110V AC 50/60Hz coil
- TeSys Deca LC2D12FD Reversing Contactor 12A AC-3 3P with 110V DC coil
- TeSys Deca LC2D12FE7 reversing contactor 12A AC-3 3P 115V AC 50/60Hz coil
- Schneider Electric LC2D12M7 — TeSys Deca LC2D reversing contactor 12A AC-3 3P with 220V AC coil screw clamp terminals
- Schneider Electric LC2D12P7 — TeSys Deca Reversing Contactor 12A AC-3 3P 230V AC Coil
- TeSys Deca LC2D18B7 reversing contactor 18A AC-3 3P with 24V AC coil
- LC2D18BD Reversing Contactor, TeSys Deca, 3P 18A AC-3, 24V DC Coil
- LC2D18BL reversing contactor 18A AC-3 3P with 24V DC low consumption coil
- TeSys Deca LC2D18E7 reversing contactor, 3P(3NO), 18A AC-3, 48V AC 50/60Hz coil
- TeSys Deca LC2D18ED reversing contactor 18A AC-3 3P 48V DC coil
- TeSys Deca LC2D18F7 Reversing Contactor, 3P(3NO), 18A AC-3, 110V AC 50/60Hz coil
- Schneider Electric LC2D18FE7 — TeSys Deca LC2D Reversing Contactor 3P 18A AC-3 115V AC Coil Screw Clamp
Specifications
- Standards
- IEC 60947-4-1, EN 60947-4-1
- Net weight
- 1.027 Kg
- Product type
- Reversing contactor
- Device short name
- LC2D
- Interlocking type
- Mechanical
- Poles description
- 3P
- Dimensions (HxWxD)
- 77 Mm x 90 Mm x 95 Mm
- Utilisation category
- AC-3, AC-1, AC-3e
- Connections - terminals
- screw clamp terminals
- Control circuit voltage
- 48 V DC
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D12ED
- Pole contact composition
- 3 NO
- Auxiliary contact composition
- 1 NO + 1 NC
- Motor power kW (380-400V AC 50 Hz)
- 5.5 KW
- Ambient air temperature for operation
- -40…60 °C
- [Ie] rated operational current (AC-1)
- 25 A (at <60 °C) at <= 440 V AC
- [Ie] rated operational current (AC-3)
- 12 A (at <60 °C) at <= 440 V AC
- [Ui] rated insulation voltage (Power circuit)
- 690 V conforming to IEC 60947-4-1
