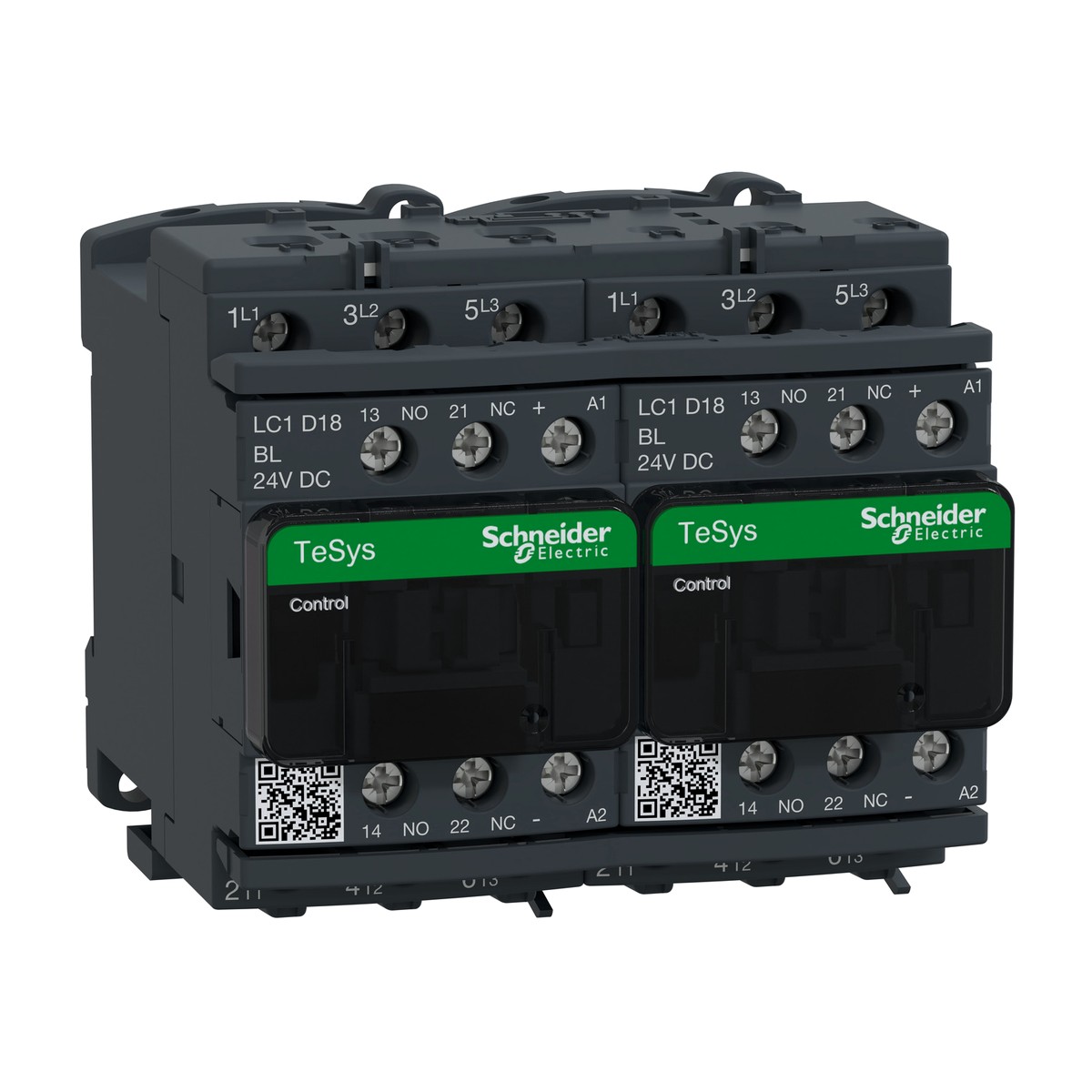

LC2D18BL
Schneider Electric LC2D18BL reversing contactor 18A AC-3 3P with 24V DC low consumption coil. The Schneider Electric LC2D18BL is a high-performance reversing contactor, part of the TeSys Deca range, engineered for reliable motor control and resistive load applications. This pre-assembled unit features a robust 3-pole configuration with 3 NO power contacts, handling operational currents up to 18 A at <= 440 V AC (AC-3). Its 24 V DC low consumption coil ensures efficient operation, complemented by convenient screw clamp terminals for secure wiring. Designed for demanding industrial environments, the LC2D18BL incorporates a mechanical interlock for enhanced safety and seamless reversing functionality. It delivers a motor power of 7.5 kW at 380-400 V AC 50-60 Hz, making it highly suitable for the power grids prevalent across Egypt and the Gulf region. With an IP20 front face rating and a wide operating temperature range of -40 to 60 °C, this contactor offers exceptional durability (30 Mcycles mechanical) for critical operations in sectors such as cement production, oil and gas, water treatment, food and beverage processing, textile manufacturing, and building services. For further details or to request a quote for the Schneider Electric LC2D18BL reversing contactor, please contact us.
Details
- Brand: Schneider Electric
- Part number: LC2D18BL
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D18E7 reversing contactor, 3P(3NO), 18A AC-3, 48V AC 50/60Hz coil
- TeSys Deca LC2D18ED reversing contactor 18A AC-3 3P 48V DC coil
- TeSys Deca LC2D18F7 Reversing Contactor, 3P(3NO), 18A AC-3, 110V AC 50/60Hz coil
- Schneider Electric LC2D18FE7 — TeSys Deca LC2D Reversing Contactor 3P 18A AC-3 115V AC Coil Screw Clamp
- TeSys Deca LC2D18M7 Reversing Contactor 18A AC-3 3P with 220V AC coil
- Schneider Electric LC2D18P7 — TeSys Deca LC2D Reversing Contactor 18A AC-3 3P 230V AC coil
- TeSys Deca Reversing Contactor LC2D18V7, 3P, 18A AC-3, 400V AC Coil
- TeSys Deca LC2D25B7 reversing contactor 25 A AC-3 3P with 24 V AC coil
- Schneider Electric LC2D25BD — TeSys Deca LC2D Reversing Contactor Pair 25A AC-3 3P 24V DC Coil
- TeSys Deca LC2D25BL Reversing Contactor 25A AC-3 3P with 24V DC low consumption coil
- TeSys Deca LC2D25E7 reversing contactor 25A AC-3 3P with 48V AC coil
- TeSys Deca LC2D25ED Reversing Contactor 25 A AC-3 3P with 48 V DC coil, screw clamp terminals
Specifications
- Net weight
- 1.037 Kg
- Motor power kW
- 7.5 KW at 380...400 V AC 50...60 Hz
- Device short name
- LC2D
- Interlocking type
- Mechanical
- Poles description
- 3P
- Control circuit type
- DC low consumption
- Utilisation category
- AC-1, AC-3, AC-3e
- Mechanical durability
- 30 Mcycles
- Dimensions (H x W x D)
- 77 mm x 90 mm x 95 mm
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D18BL
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Ambient air temperature for operation
- -40…60 °C
