LC2D18ED

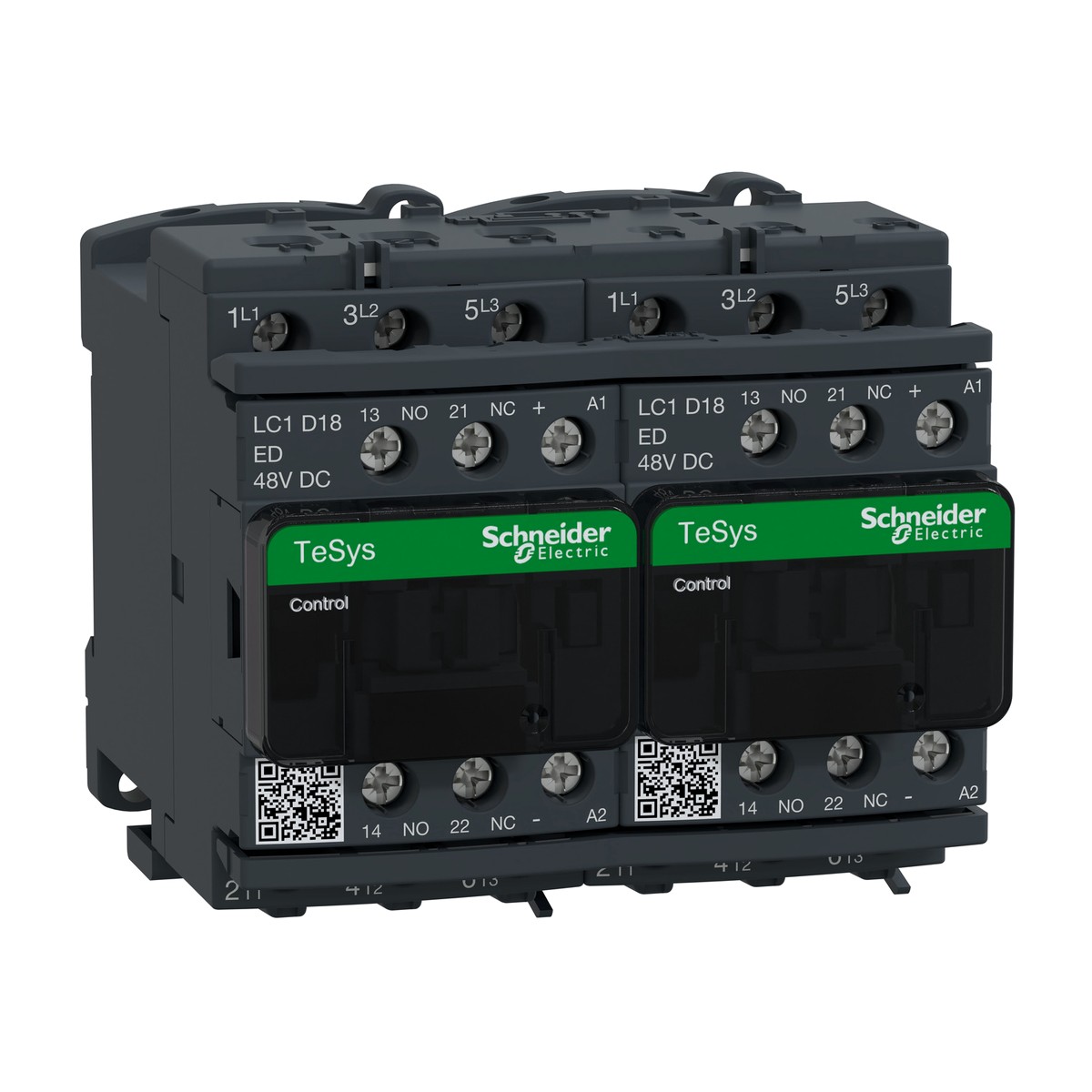

Schneider Electric LC2D18ED TeSys Deca reversing contactor 18A AC-3 3P 48V DC coil. The Schneider Electric LC2D18ED is a robust TeSys Deca reversing contactor, pre-assembled with a power busbar and mechanical interlock, designed for reliable motor control and resistive load applications. This 3-pole unit features 3 normally open power contacts and an 18 A AC-3 rated operational current at <= 440 V, making it suitable for a wide range of industrial duties. The LC2D18ED is equipped with a 48 V DC control coil for precise operation and offers convenient screw clamp terminals for both power and control circuits. Its integrated 1 NO + 1 NC auxiliary contacts provide essential feedback and interlocking capabilities. Ideal for critical applications in Egypt and the Gulf, such as motor control in water treatment plants, pumping stations, HVAC systems in large buildings, or material handling in food and beverage production, this Schneider Electric contactor ensures safety and efficiency. Certified to international standards, it offers high mechanical durability of 30 Mcycles.
Details
- Brand: Schneider Electric
- Part number: LC2D18ED
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D18F7 Reversing Contactor, 3P(3NO), 18A AC-3, 110V AC 50/60Hz coil
- Schneider Electric LC2D18FE7 — TeSys Deca LC2D Reversing Contactor 3P 18A AC-3 115V AC Coil Screw Clamp
- TeSys Deca LC2D18M7 Reversing Contactor 18A AC-3 3P with 220V AC coil
- Schneider Electric LC2D18P7 — TeSys Deca LC2D Reversing Contactor 18A AC-3 3P 230V AC coil
- TeSys Deca Reversing Contactor LC2D18V7, 3P, 18A AC-3, 400V AC Coil
- TeSys Deca LC2D25B7 reversing contactor 25 A AC-3 3P with 24 V AC coil
- Schneider Electric LC2D25BD — TeSys Deca LC2D Reversing Contactor Pair 25A AC-3 3P 24V DC Coil
- TeSys Deca LC2D25BL Reversing Contactor 25A AC-3 3P with 24V DC low consumption coil
- TeSys Deca LC2D25E7 reversing contactor 25A AC-3 3P with 48V AC coil
- TeSys Deca LC2D25ED Reversing Contactor 25 A AC-3 3P with 48 V DC coil, screw clamp terminals
- TeSys Deca LC2D25F7 reversing contactor 25 A AC-3 3P with 110 V AC 50/60 Hz coil
- TeSys Deca LC2D25FE7 reversing contactor 25 A AC-3 3P with 115 V AC coil
Specifications
- Motor power kW
- 7.5 KW at 380...400 V AC 50...60 Hz
- Mounting support
- Plate, Rail
- Interlocking type
- Mechanical
- Poles description
- 3P
- Utilisation category
- AC-1, AC-3, AC-3e
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- Control circuit: screw clamp terminals, Power circuit: screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D18ED
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- [Uc] control circuit voltage
- 48 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1
- [Ie] rated operational current
- 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Ambient air temperature for operation
- -40…60 °C
