LC2D25ED

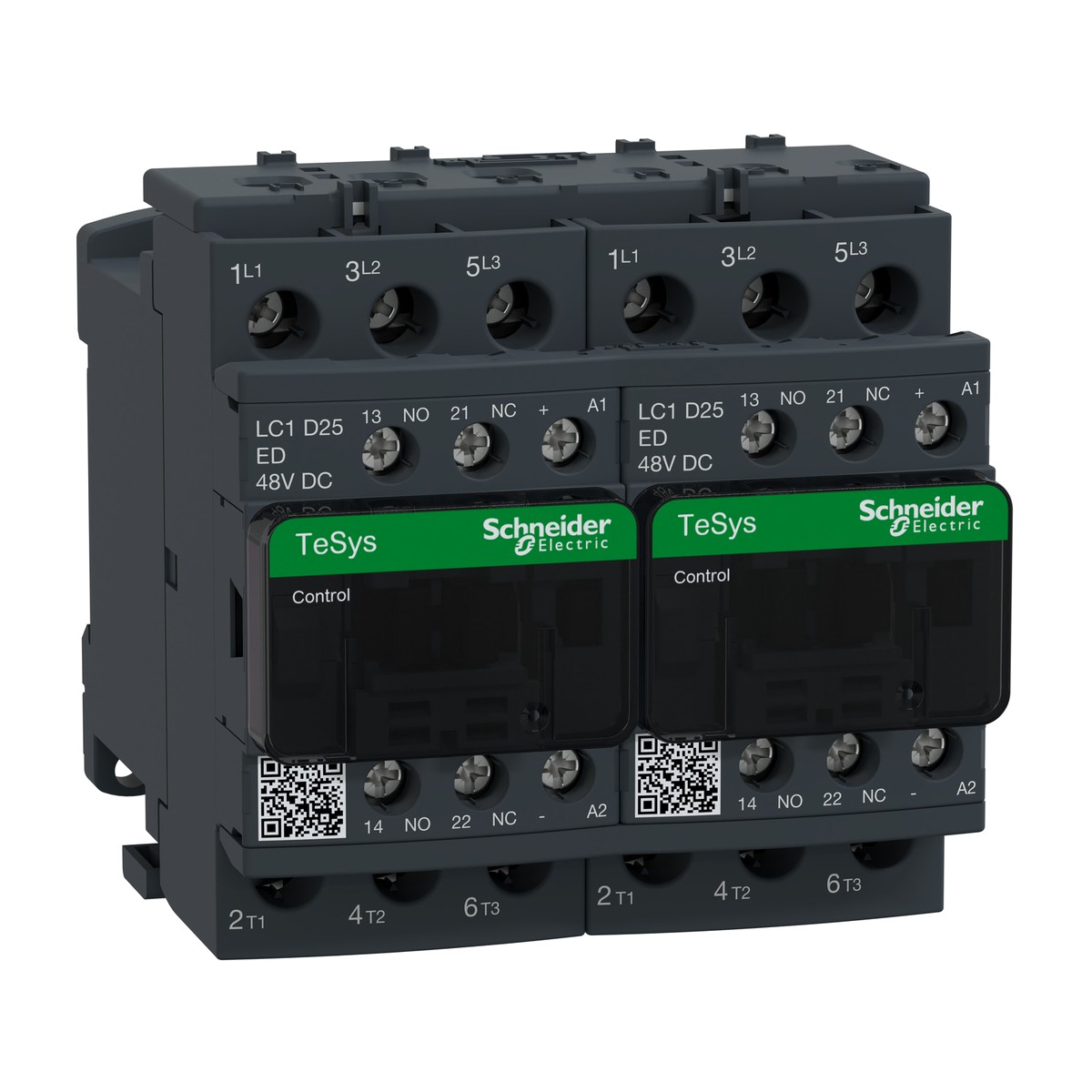

Schneider Electric LC2D25ED TeSys Deca Reversing Contactor 25 A AC-3 3P with 48 V DC coil, screw clamp terminals. The Schneider Electric LC2D25ED is a high-performance TeSys Deca reversing contactor pair, meticulously pre-assembled with a robust reversing power busbar and integrated mechanical interlock, ensuring safe and reliable motor control. This powerful 3-pole contactor is engineered for a 25 A AC-3 operational current at <= 440 V AC, making it perfectly suited for managing motor power up to 11 kW at 380-400 V AC (50-60 Hz). It incorporates a 48 V DC control coil for precise and responsive operation, complemented by 1 NO + 1 NC auxiliary contacts to provide extensive flexibility for various control circuits. Featuring versatile screw clamp terminals for both power and control circuits, installation is straightforward and secure. The Schneider Electric LC2D25ED is an optimal choice for diverse industrial applications across Egypt and the Gulf, including critical functions in cement production, oil and gas operations, water treatment facilities, food and beverage processing, textiles manufacturing, and comprehensive building services, delivering consistent and dependable performance. Its IP20 front face protection and impressive mechanical durability of 30 Mcycles highlight its robust design for challenging industrial environments. For a trusted and efficient motor reversing solution, request a quote for the Schneider Electric LC2D25ED today.
Details
- Brand: Schneider Electric
- Part number: LC2D25ED
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D25F7 reversing contactor 25 A AC-3 3P with 110 V AC 50/60 Hz coil
- TeSys Deca LC2D25FE7 reversing contactor 25 A AC-3 3P with 115 V AC coil
- TeSys Deca LC2D25M7 Reversing Contactor, 3P 25A AC-3, 220V AC 50/60Hz coil
- TeSys Deca LC2D25P7 reversing contactor 25A AC-3 3P 230V AC coil
- TeSys Deca LC2D25U7 reversing contactor 25A AC-3 3P 240V AC 50/60Hz coil
- TeSys Deca LC2D32B7 reversing contactor 32 A AC-3 3P with 24 V AC coil
- Schneider Electric LC2D32BD — TeSys Deca LC2D Reversing Contactor 3P 32A AC-3 24V DC Coil
- TeSys Deca LC2D32BL Reversing Contactor 32A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D32E7 reversing contactor 32A AC-3 3P with 48V AC 50/60Hz coil
- TeSys Deca LC2D32F7 reversing contactor 32A AC-3 3P with 110V AC 50/60Hz coil
- Schneider Electric LC2D32FE7 — TeSys Deca LC2D Reversing Contactor 32A AC-3 3P 115V AC 50/60Hz Coil
- TeSys Deca LC2D32M7 reversing contactor 32 A AC-3 3P 220 V AC 50/60Hz coil
Specifications
- Net weight
- 1.117 Kg
- Product name
- TeSys Deca
- Motor power kW
- 11 KW at 380...400 V AC 50...60 Hz
- Device short name
- LC2D
- Interlocking type
- Mechanical
- Poles description
- 3P
- Utilisation category
- AC-1, AC-3, AC-3e
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D25ED
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- [Uc] control circuit voltage
- 48 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Ambient air temperature for operation
- -40…60 °C
