LC2D32BD

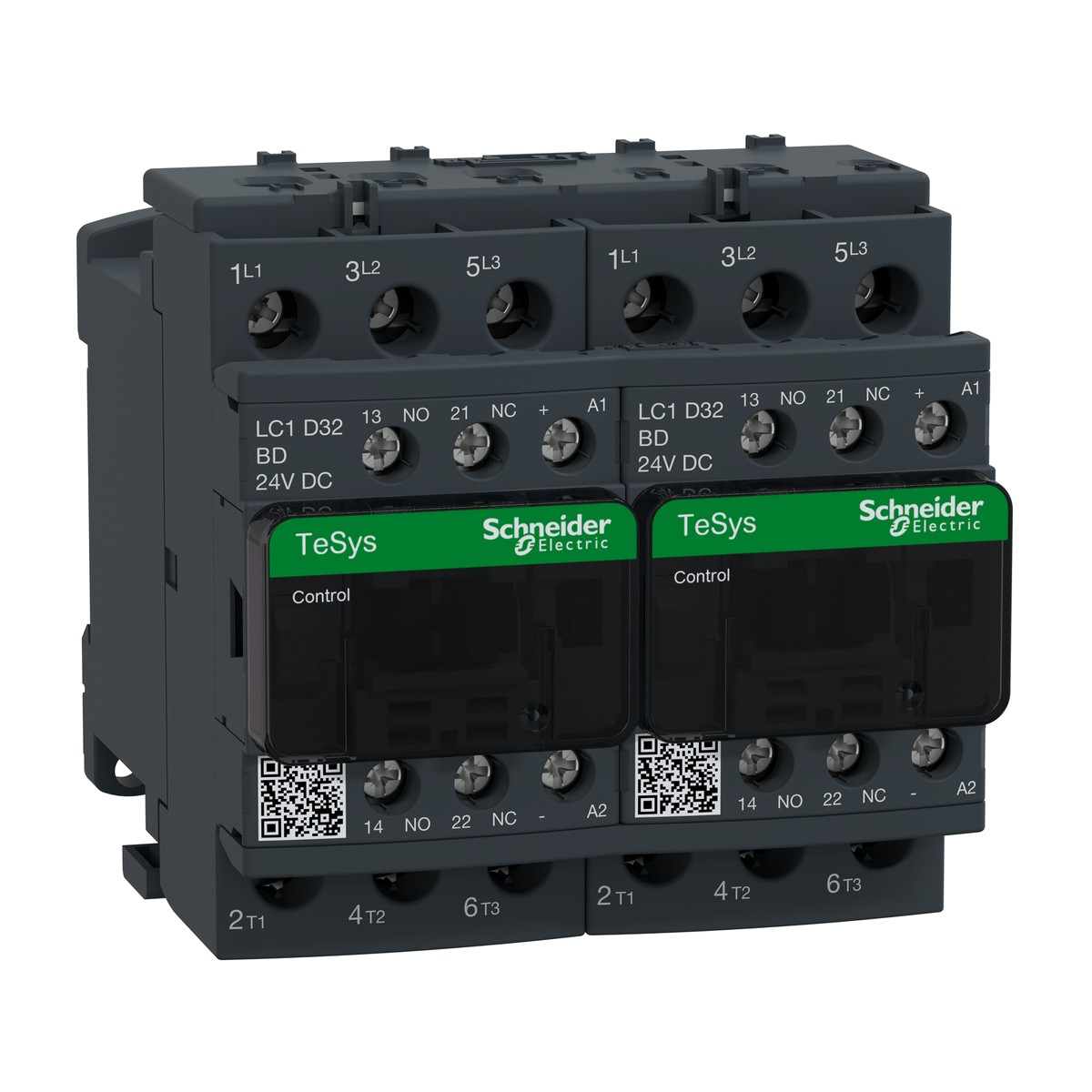

Schneider Electric LC2D32BD TeSys Deca LC2D Reversing Contactor 3P 32A AC-3 24V DC Coil. The Schneider Electric LC2D32BD TeSys Deca reversing contactor is a robust, pre-assembled solution for efficient motor control in demanding industrial environments. This 3-pole contactor features 3 NO power contacts and is rated for a 32 A operational current (AC-3) at up to 440 V AC. It delivers a substantial 15 kW motor power capability at 380-400 V AC, ideal for a wide range of motor applications. Equipped with a reliable 24 V DC control coil, the LC2D32BD includes both mechanical and electrical interlocking (via 1 NO + 1 NC auxiliary contacts) to ensure safe, precise operation. Its screw clamp terminals provide secure connections, and an IP20 front face rating offers dust protection. This unit is perfectly suited for critical applications across Egypt and the Gulf, including cement, oil and gas, water treatment, food and beverage, textiles, and building services. For dependable Schneider Electric spare parts, request a quote today.
Details
- Brand: Schneider Electric
- Part number: LC2D32BD
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D32BL Reversing Contactor 32A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D32E7 reversing contactor 32A AC-3 3P with 48V AC 50/60Hz coil
- TeSys Deca LC2D32F7 reversing contactor 32A AC-3 3P with 110V AC 50/60Hz coil
- Schneider Electric LC2D32FE7 — TeSys Deca LC2D Reversing Contactor 32A AC-3 3P 115V AC 50/60Hz Coil
- TeSys Deca LC2D32M7 reversing contactor 32 A AC-3 3P 220 V AC 50/60Hz coil
- TeSys Deca LC2D32P7 reversing contactor 32A AC-3 3P with 230V AC coil
- Schneider Electric LC2D32Q7 — TeSys Deca Reversing Contactor 3P 32A AC-3 with 380V AC Coil
- TeSys Deca LC2D32V7 Reversing Contactor 32A AC-3 3P with 400V AC 50/60Hz coil
- TeSys Deca LC2D38B7 Reversing Contactor 3P 38A AC-3 24V AC 50/60Hz Coil
- TeSys Deca LC2D38BD Reversing Contactor, 3P 38A AC-3, 24V DC coil, screw clamp
- TeSys Deca LC2D38E7 reversing contactor 38A AC-3 3P with 48V AC coil
- TeSys Deca LC2D38F7 Reversing Contactor 3P 38A AC-3 110V AC Coil
Specifications
- Net weight
- 1.127 Kg
- Motor power kW
- 15 KW at 380...400 V AC 50...60 Hz
- Mounting support
- Rail, Plate
- Interlocking type
- Mechanical
- Poles description
- 3P
- Utilisation category
- AC-1, AC-3, AC-3e
- Electrical durability
- 1.65 Mcycles 32 A AC-3 at Ue <= 440 V
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D32BD
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Ambient air temperature for operation
- -40…60 °C
- [Ui] rated insulation voltage (Power circuit)
- 690 V conforming to IEC 60947-4-1
