LC2D38BD

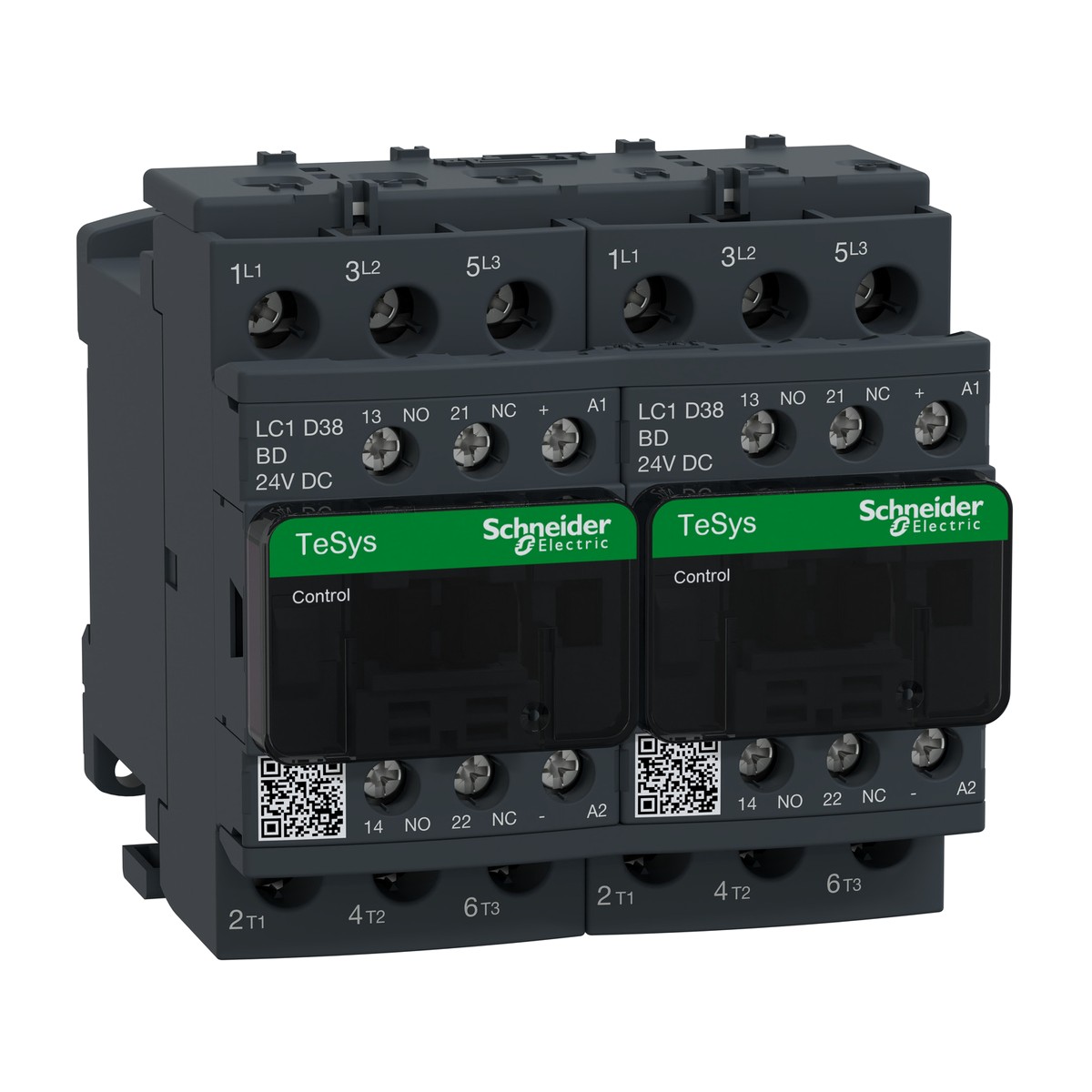

Schneider Electric LC2D38BD TeSys Deca Reversing Contactor, 3P 38A AC-3, 24V DC coil, screw clamp. The Schneider Electric LC2D38BD is a pre-assembled TeSys Deca reversing contactor pair, engineered for reliable motor control and resistive load applications in industrial environments across Egypt and the Gulf. This robust electrical component features a 3-pole configuration with 3 normally open (NO) power contacts and a rated operational current of 38 A for AC-3 utilization category at up to 440 V AC. It comes equipped with a highly responsive 24 V DC coil for precise control operations, along with convenient screw clamp terminals for secure wiring. A key safety feature is its integrated mechanical interlock, ensuring safe and reliable reversing functions. Capable of handling motors up to 18.5 kW at 380-400 V AC, 50-60 Hz, the LC2D38BD is ideal for critical machinery in sectors such as cement production, oil and gas, water treatment, food and beverage processing, textiles, and various building services. For seamless integration and dependable performance, request a quote for the Schneider Electric LC2D38BD today.
Details
- Brand: Schneider Electric
- Part number: LC2D38BD
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D38E7 reversing contactor 38A AC-3 3P with 48V AC coil
- TeSys Deca LC2D38F7 Reversing Contactor 3P 38A AC-3 110V AC Coil
- TeSys Deca LC2D38P7 Reversing Contactor 38A AC-3 3P with 230V AC 50/60Hz coil
- LAD9V6 Reversing Contactor Busbar Kit for TeSys D
- Schneider Electric LADN04 — Auxiliary contact block, TeSys Deca, 4NC, front mounting, screw clamp
- Schneider Electric LADN11 — TeSys Deca Auxiliary Contact Block, 1NO + 1NC, Front Mounting, Screw Clamp Terminals
- Schneider Electric LADN20 — TeSys Deca Auxiliary Contact Block 2NO Front Mounting Screw Clamp Terminals
- Schneider Electric LADN31 — Auxiliary contact block, 3NO + 1NC, front mounting, screw clamp terminals
- Schneider Electric LADN40 — TeSys Deca Auxiliary Contact Block, 4 NO, Front Mounting, Screw Clamp Terminals
- Schneider Electric GV2ME01 — TeSys Deca Motor Circuit Breaker 3P 0.1-0.16A Thermal Magnetic
- Schneider Electric GV2ME03 — TeSys GV2 motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp button control
- TeSys Deca GV2ME04 3P Motor Circuit Breaker 0.4-0.63A
Specifications
- Depth
- 101 Mm
- Width
- 90 Mm
- Height
- 85 Mm
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1
- Net weight
- 1.137 Kg
- Motor power kW
- 18.5 KW at 380...400 V AC 50...60 Hz
- Mounting support
- Rail, Plate
- Interlocking type
- Mechanical
- Poles description
- 3P
- Device presentation
- Preassembled with reversing power busbar
- Utilisation category
- AC-3, AC-1, AC-3e
- Product certifications
- UL, CSA, RINA, GOST, CCC, DNV, LROS
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D38BD
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
- Ambient air temperature for operation
- -40…60 °C
