GV2ME01

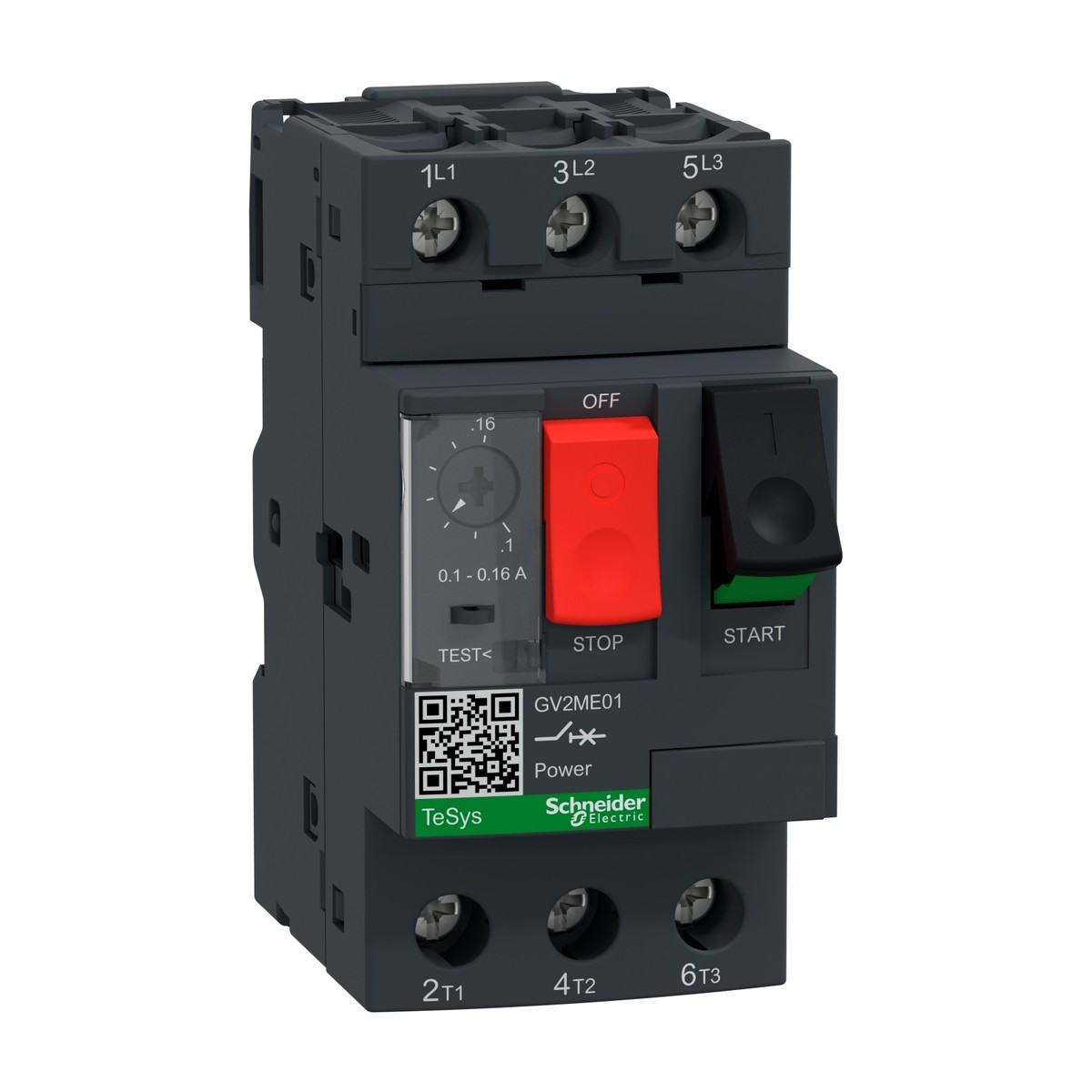

Schneider Electric GV2ME01 TeSys Deca Motor Circuit Breaker 3P 0.1-0.16A Thermal Magnetic. The Schneider Electric GV2ME01 is a compact and reliable TeSys Deca motor circuit breaker designed for robust motor protection. This 3-pole thermal-magnetic device offers an adjustable thermal overload setting from 0.1 to 0.16 A, making it ideal for safeguarding small motors against overloads and short circuits. Featuring a push-button control for straightforward operation and screw clamp terminals for secure connections, the GV2ME01 ensures dependable performance. Key specifications include a high breaking capacity of 100 KA Icu at 400/415 V AC 50/60 Hz, suitable for demanding industrial environments. With an IP20 degree of protection and a compact design (45 mm width), it can be easily mounted on a 35 mm DIN rail. This breaker is well-suited for various applications across Egyptian and Gulf industries, such as small pumps and fans in water treatment facilities, conveyor systems in food and beverage plants, and general machinery in textile manufacturing or building services. Its operating temperature range of -20 to 60 °C further enhances its versatility in challenging climates.
Details
- Brand: Schneider Electric
- Part number: GV2ME01
- Series: TeSys Deca
- Category: Motor Circuit Breaker
Related Schneider Electric parts
- Schneider Electric GV2ME03 — TeSys GV2 motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp button control
- TeSys Deca GV2ME04 3P Motor Circuit Breaker 0.4-0.63A
- Schneider Electric GV2ME05 — TeSys GV2ME motor circuit breaker 3P 0.63-1A thermal-magnetic
- TeSys Deca GV2ME06 motor circuit breaker 3P 1-1.6A thermal magnetic
- TeSys GV2ME07 Motor Circuit Breaker 3P 1.6-2.5A Thermal Magnetic
- TeSys Deca GV2ME32 Motor Circuit Breaker 3P 24-32A Thermal Magnetic Screw Clamp
- Schneider Electric GV2P01 — TeSys GV2 Motor Circuit Breaker 0.1-0.16A 3P Thermal-Magnetic
- Schneider Electric GV2P03 — TeSys Deca motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp rotary handle
- Schneider Electric GV2P04 — TeSys Deca Motor circuit breaker, 3P, 0.4-0.63A, thermal magnetic, screw clamp, rotary handle
- Schneider Electric GV2P05 — TeSys Deca motor circuit breaker 3P 0.63-1A thermal magnetic
- Schneider Electric GV2P06 — TeSys Deca GV2P Motor Circuit Breaker 3P 1 to 1.6A Thermal Magnetic Screw Clamp Rotary Handle
- Schneider Electric GV2P07 — TeSys GV2 motor circuit breaker 3P 1.6-2.5A thermal magnetic
Specifications
- Depth
- 78.5 Mm
- Width
- 45 Mm
- Height
- 89 Mm
- Net weight
- 0.26 Kg
- Fixing mode
- 35 mm symmetrical DIN rail: clipped
- Control type
- Push-button
- Breaking capacity
- 100 KA Icu at 400/415 V AC 50/60 Hz
- Poles description
- 3P
- Trip unit technology
- Thermal-magnetic
- Utilisation category
- AC-3 conforming to IEC 60947-4-1
- Electrical durability
- 100000 Cycles for AC-3 at 415 V In
- Mechanical durability
- 100000 Cycles
- Connections - terminals
- screw clamp terminal
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- GV2ME01
- Magnetic tripping current
- 1.93 A
- Suitability for isolation
- Yes conforming to IEC 60947-1
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Thermal protection adjustment range
- 0.1…0.16 A
- Ambient air temperature for operation
- -20…60 °C
