GV2ME03

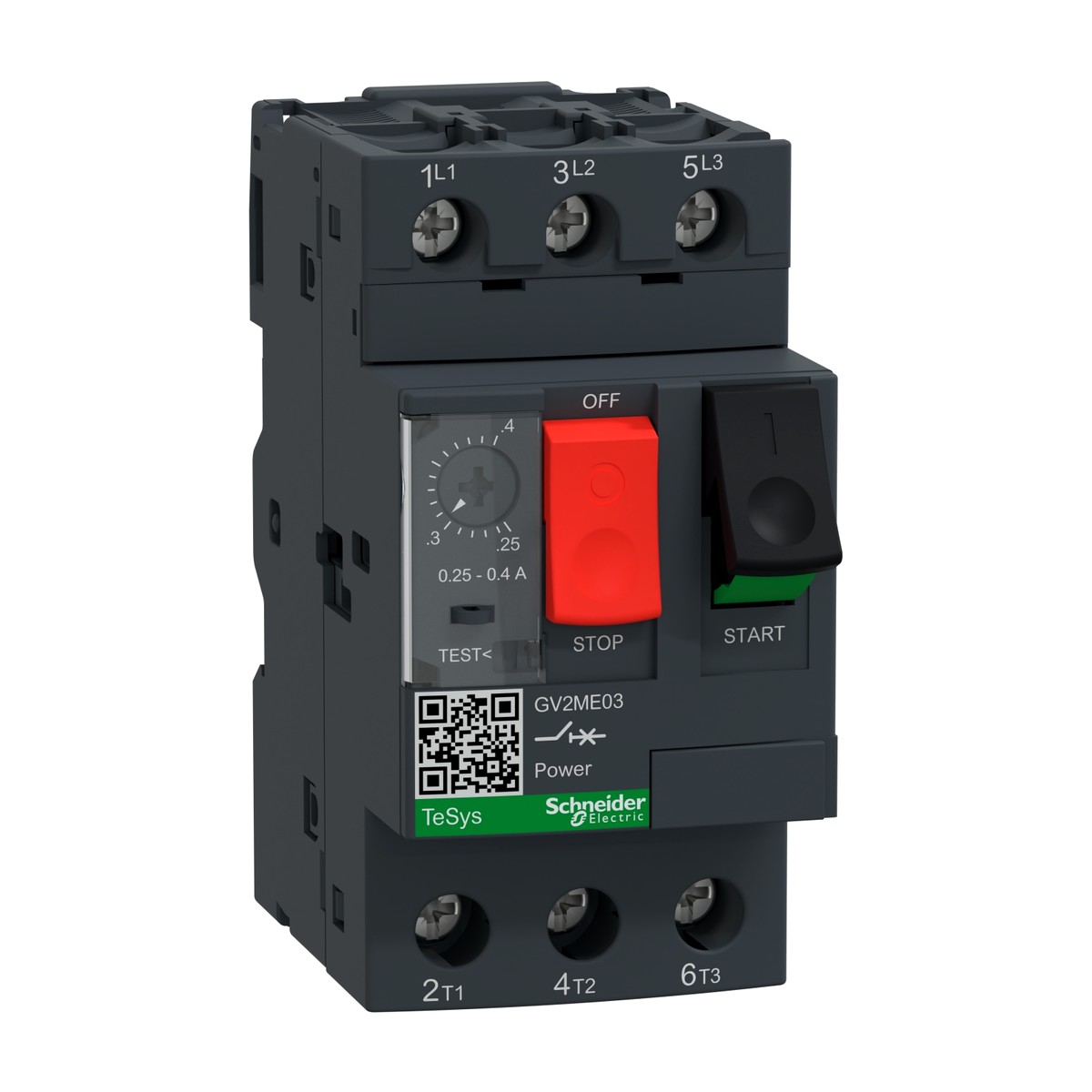

Schneider Electric GV2ME03 TeSys GV2 motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp button control. The Schneider Electric GV2ME03 is a robust 3-pole motor circuit breaker from the TeSys Deca range, engineered for reliable motor protection in demanding industrial environments. This thermal-magnetic breaker features an adjustable overload setting from 0.25 to 0.4 A, ensuring precise protection for smaller motors. It is suitable for motor power ratings from 0.12 to 0.18 kW at 400/415 V AC 50/60 Hz, a common voltage in Egypt and the Gulf. With an impressive breaking capacity of 100 kA at 400/415 V AC, it provides superior short-circuit protection. Control is user-friendly via a push-button mechanism, and installation is straightforward with screw clamp terminals, allowing for DIN rail or panel mounting. Boasting high mechanical and electrical durability of 100,000 cycles, the GV2ME03 is a dependable choice for critical applications in sectors such as oil and gas, water treatment, cement production, and food and beverage processing across the region.
Details
- Brand: Schneider Electric
- Part number: GV2ME03
- Series: TeSys Deca
- Category: Motor Circuit Breaker
Related Schneider Electric parts
- TeSys Deca GV2ME04 3P Motor Circuit Breaker 0.4-0.63A
- Schneider Electric GV2ME05 — TeSys GV2ME motor circuit breaker 3P 0.63-1A thermal-magnetic
- TeSys Deca GV2ME06 motor circuit breaker 3P 1-1.6A thermal magnetic
- TeSys GV2ME07 Motor Circuit Breaker 3P 1.6-2.5A Thermal Magnetic
- TeSys Deca GV2ME32 Motor Circuit Breaker 3P 24-32A Thermal Magnetic Screw Clamp
- Schneider Electric GV2P01 — TeSys GV2 Motor Circuit Breaker 0.1-0.16A 3P Thermal-Magnetic
- Schneider Electric GV2P03 — TeSys Deca motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp rotary handle
- Schneider Electric GV2P04 — TeSys Deca Motor circuit breaker, 3P, 0.4-0.63A, thermal magnetic, screw clamp, rotary handle
- Schneider Electric GV2P05 — TeSys Deca motor circuit breaker 3P 0.63-1A thermal magnetic
- Schneider Electric GV2P06 — TeSys Deca GV2P Motor Circuit Breaker 3P 1 to 1.6A Thermal Magnetic Screw Clamp Rotary Handle
- Schneider Electric GV2P07 — TeSys GV2 motor circuit breaker 3P 1.6-2.5A thermal magnetic
- Schneider Electric GV2P08 — TeSys Deca Motor circuit breaker 3P 2.5-4A thermal magnetic screw clamp rotary handle
Specifications
- Depth
- 78.5 Mm
- Width
- 45 Mm
- Height
- 89 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60947-4-1
- Net weight
- 0.26 Kg
- Control type
- Push-button
- Motor power kW
- 0.12-0.18 KW at 400/415 V AC 50/60 Hz
- Breaking capacity
- 100 KA Icu at 400/415 V AC 50/60 Hz
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- Electrical durability
- 100000 Cycles for AC-3 at 415 V In
- Mechanical durability
- 100000 Cycles
- Connections - terminals
- Power circuit: screw clamp terminal
- IP degree of protection
- IP20
- Manufacturer part number
- GV2ME03
- Magnetic tripping current
- 5.8 A
- Phase failure sensitivity
- Yes
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Thermal protection adjustment range
- 0.25…0.4 A
- Ambient air temperature for operation
- -20…60 °C
