LADN40

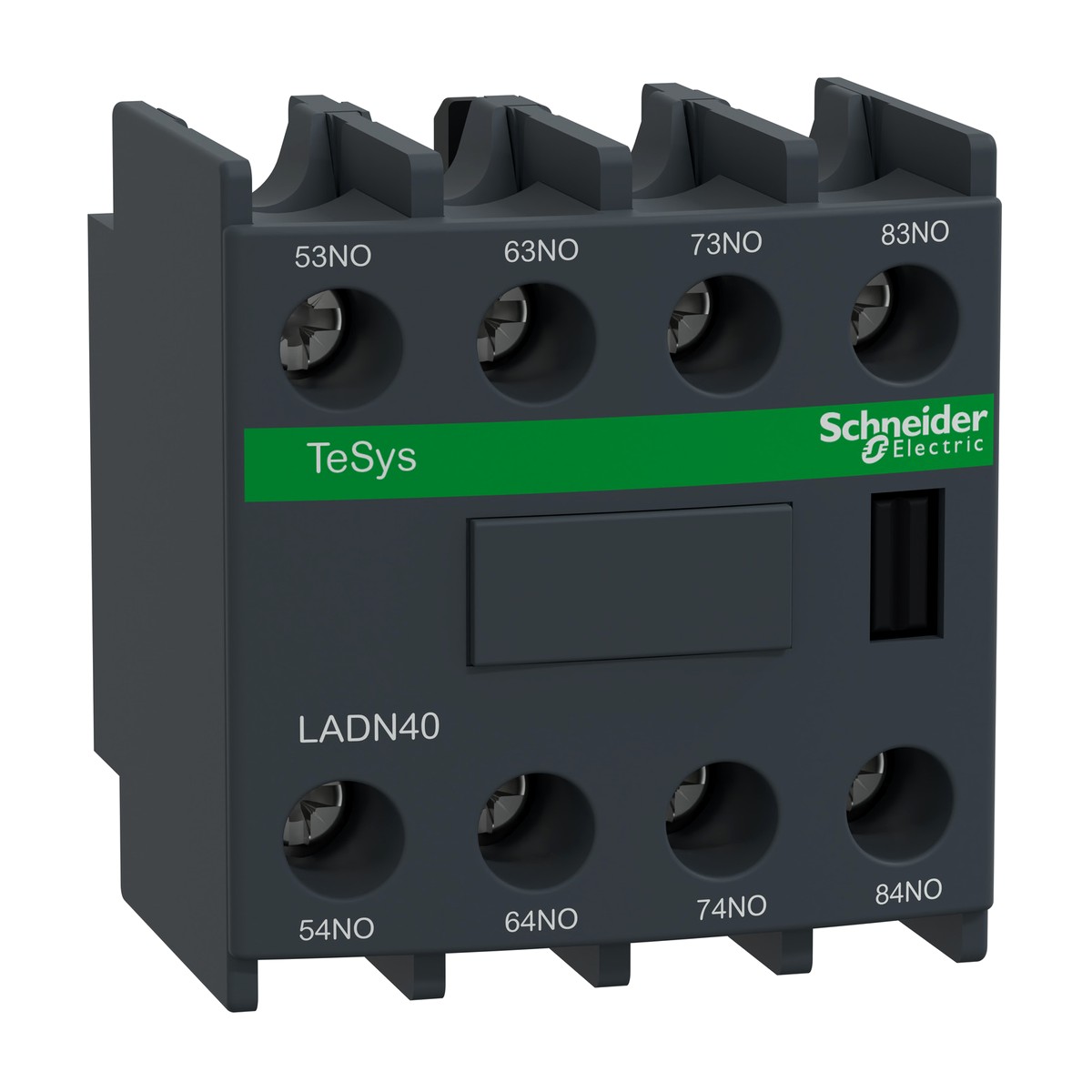

Schneider Electric LADN40 TeSys Deca Auxiliary Contact Block, 4 NO, Front Mounting, Screw Clamp Terminals. The Schneider Electric LADN40 is an essential auxiliary contact block from the TeSys Deca range, designed to seamlessly expand the control capabilities of your TeSys D and TeSys F contactors. This robust front-mounting block provides four normally open (4 NO) instantaneous contacts, ensuring reliable signal transmission and interlocking within complex electrical systems. Its user-friendly screw clamp terminals accommodate a variety of cable sizes, simplifying installation and maintenance. Engineered for demanding industrial environments, the LADN40 boasts a high rated operational voltage of 690 V AC and a substantial mechanical durability of 30 Mcycles. With an IP2X protection rating and an operating temperature range of -5 to 60 °C, it offers dependable performance across diverse conditions. Ideal for applications in Egypt and the Gulf, including oil and gas, water treatment, cement, food and beverage, and building services, the Schneider Electric LADN40 enhances operational safety and efficiency in motor control and process automation.
Details
- Brand: Schneider Electric
- Part number: LADN40
- Series: TeSys Deca
- Category: Auxiliary Contact Block
Related Schneider Electric parts
- Schneider Electric GV2ME01 — TeSys Deca Motor Circuit Breaker 3P 0.1-0.16A Thermal Magnetic
- Schneider Electric GV2ME03 — TeSys GV2 motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp button control
- TeSys Deca GV2ME04 3P Motor Circuit Breaker 0.4-0.63A
- Schneider Electric GV2ME05 — TeSys GV2ME motor circuit breaker 3P 0.63-1A thermal-magnetic
- TeSys Deca GV2ME06 motor circuit breaker 3P 1-1.6A thermal magnetic
- TeSys GV2ME07 Motor Circuit Breaker 3P 1.6-2.5A Thermal Magnetic
- TeSys Deca GV2ME32 Motor Circuit Breaker 3P 24-32A Thermal Magnetic Screw Clamp
- Schneider Electric GV2P01 — TeSys GV2 Motor Circuit Breaker 0.1-0.16A 3P Thermal-Magnetic
- Schneider Electric GV2P03 — TeSys Deca motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp rotary handle
- Schneider Electric GV2P04 — TeSys Deca Motor circuit breaker, 3P, 0.4-0.63A, thermal magnetic, screw clamp, rotary handle
- Schneider Electric GV2P05 — TeSys Deca motor circuit breaker 3P 0.63-1A thermal magnetic
- Schneider Electric GV2P06 — TeSys Deca GV2P Motor Circuit Breaker 3P 1 to 1.6A Thermal Magnetic Screw Clamp Rotary Handle
Specifications
- Colour
- Dark grey
- Standards
- EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1
- Net weight
- 0.05 Kg
- Device short name
- LADN
- Mounting location
- Front
- Tightening torque
- 1.7 N.M
- Range compatibility
- TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F
- Mechanical durability
- 30 Mcycles
- Product certifications
- CB Scheme, UL, CSA, CCC, EAC, UKCA
- Connections - terminals
- Screw clamp terminals, accepts 1 or 2 cables up to 4 mm²
- IP degree of protection
- IP2X conforming to IEC 60529
- Manufacturer part number
- LADN40
- Pole contact composition
- 4 NO
- Product or component type
- Auxiliary contact block
- Auxiliary contacts operation
- Instantaneous
- [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
- [Ie] rated operational current
- 6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13; 0.1 A at 600 V DC-13
- [Ue] rated operational voltage
- 690 V AC 25...400 Hz
- Ambient air temperature for operation
- -5…60 °C
- [Ith] conventional free air thermal current
- 10 A (at 60 °C)
