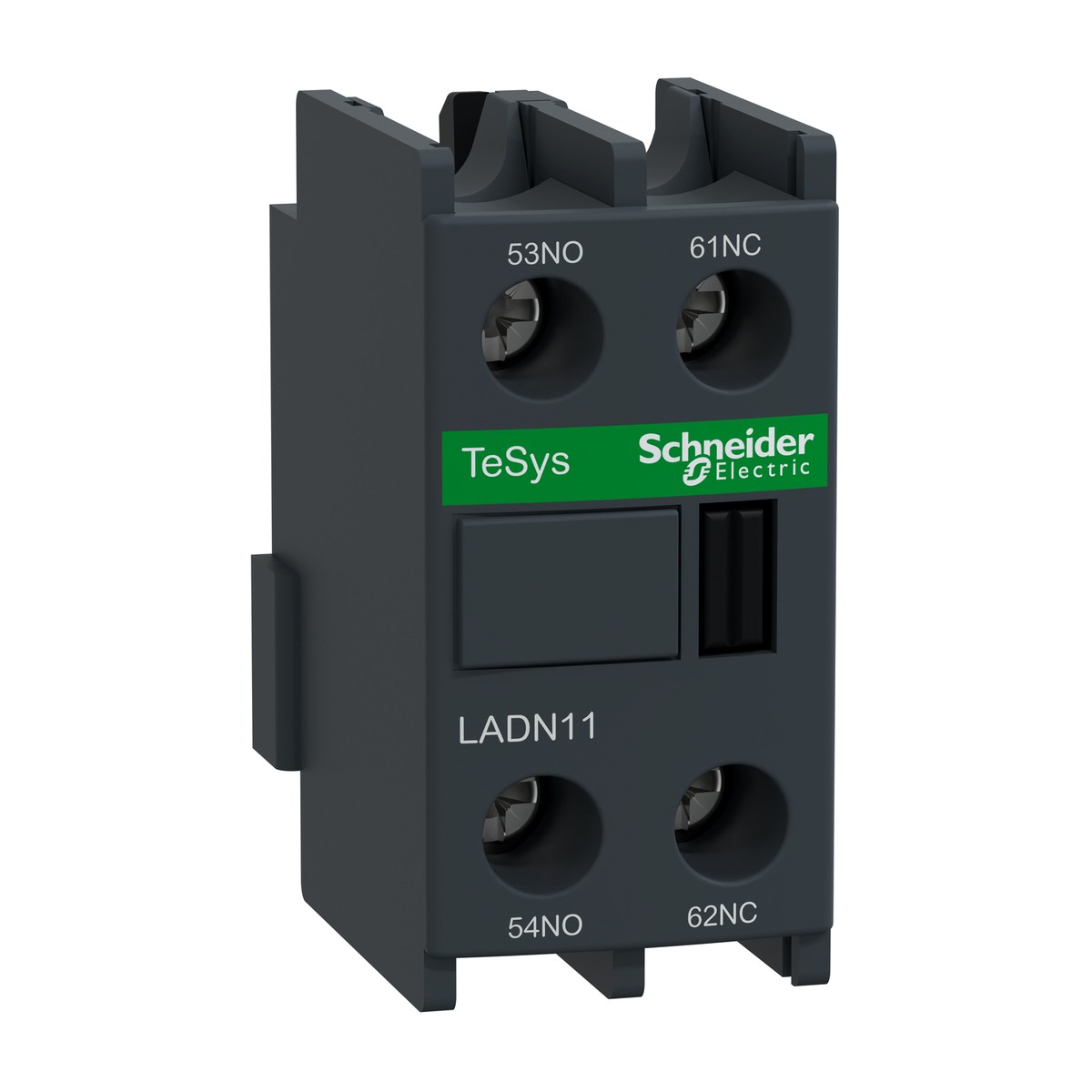

LADN11
Schneider Electric LADN11 TeSys Deca Auxiliary Contact Block, 1NO + 1NC, Front Mounting, Screw Clamp Terminals. Enhance the control capabilities of your TeSys Deca contactors with the Schneider Electric LADN11 Auxiliary Contact Block. This essential component provides a 1 NO (normally open) and 1 NC (normally closed) pole contact composition, designed for instantaneous operation. Engineered for convenient front mounting, the LADN11 features robust screw clamp terminals, accommodating cables up to 4 mm². With a rated operational voltage of 690 V AC (25-400 Hz) and a conventional free air thermal current of 10 A (at 60 °C), this block ensures reliable performance in demanding industrial environments. It boasts a high mechanical durability of 30 Mcycles and an IP20 degree of protection, operating efficiently from -5 to 60 °C. The compact dimensions and dark grey finish integrate seamlessly into control panels. The Schneider Electric LADN11 is an ideal spare part for applications across Egypt and the Gulf, including critical motor control systems in cement plants, oil and gas facilities, water treatment stations, food and beverage processing, textile manufacturing, and building services. Certified by UL, CSA, CCC, and EAC, this block offers global compliance.
Details
- Brand: Schneider Electric
- Part number: LADN11
- Series: TeSys Deca
- Category: Auxiliary Contact Block
Related Schneider Electric parts
- Schneider Electric LADN20 — TeSys Deca Auxiliary Contact Block 2NO Front Mounting Screw Clamp Terminals
- Schneider Electric LADN31 — Auxiliary contact block, 3NO + 1NC, front mounting, screw clamp terminals
- Schneider Electric LADN40 — TeSys Deca Auxiliary Contact Block, 4 NO, Front Mounting, Screw Clamp Terminals
- Schneider Electric GV2ME01 — TeSys Deca Motor Circuit Breaker 3P 0.1-0.16A Thermal Magnetic
- Schneider Electric GV2ME03 — TeSys GV2 motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp button control
- TeSys Deca GV2ME04 3P Motor Circuit Breaker 0.4-0.63A
- Schneider Electric GV2ME05 — TeSys GV2ME motor circuit breaker 3P 0.63-1A thermal-magnetic
- TeSys Deca GV2ME06 motor circuit breaker 3P 1-1.6A thermal magnetic
- TeSys GV2ME07 Motor Circuit Breaker 3P 1.6-2.5A Thermal Magnetic
- TeSys Deca GV2ME32 Motor Circuit Breaker 3P 24-32A Thermal Magnetic Screw Clamp
- Schneider Electric GV2P01 — TeSys GV2 Motor Circuit Breaker 0.1-0.16A 3P Thermal-Magnetic
- Schneider Electric GV2P03 — TeSys Deca motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp rotary handle
Specifications
- Depth
- 42 Mm
- Width
- 26 Mm
- Colour
- Dark grey
- Height
- 48 Mm
- Mounting location
- Front
- Tightening torque
- 1.7 N.M
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- Screw clamp terminals (1-4 mm² flexible/rigid)
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LADN11
- Pole contact composition
- 1 NO + 1 NC
- Irms rated making capacity
- 140 A AC conforming to IEC 60947-5-1
- Auxiliary contacts operation
- Instantaneous
- [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
- [Ie] rated operational current
- 6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13
- [Ue] rated operational voltage
- 690 V AC 25...400 Hz
- Ambient air temperature for operation
- -5…60 °C
- [Ith] conventional free air thermal current
- 10 A (at 60 °C)
