LADN20

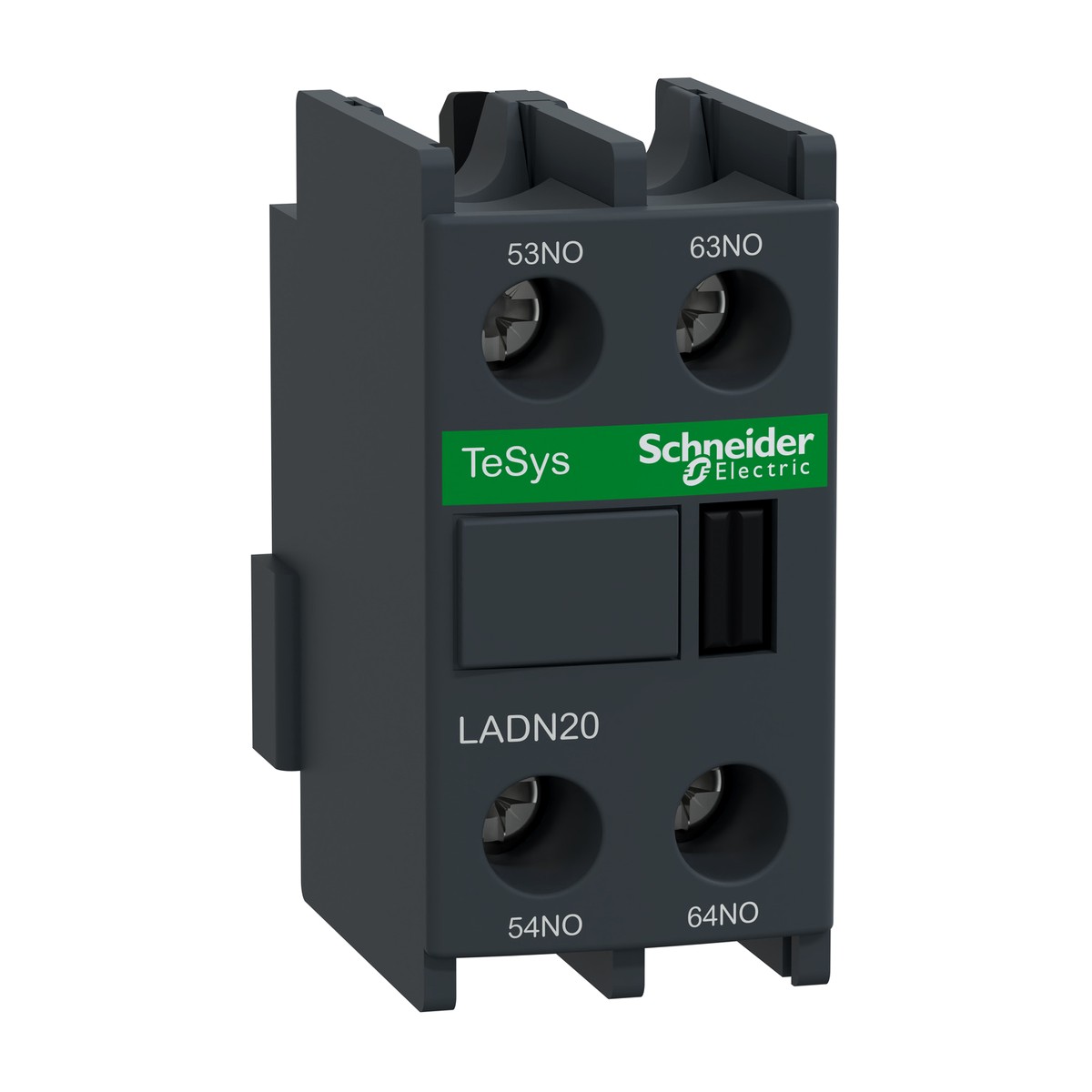

Schneider Electric LADN20 TeSys Deca Auxiliary Contact Block 2NO Front Mounting Screw Clamp Terminals. The Schneider Electric LADN20 is an essential auxiliary contact block from the renowned TeSys Deca range, designed to enhance the functionality of your TeSys D and TeSys F contactors. This reliable front-mounting unit features two normally open (2 NO) instantaneous contacts, crucial for control circuits, signaling, and interlocking applications. Equipped with robust screw clamp terminals, it ensures secure and straightforward wiring. The LADN20 is built to operate reliably across a broad range of industrial environments, offering a rated operational voltage of up to 690 V AC and a rated insulation voltage conforming to IEC 60947-5-1 standards. Its impressive mechanical durability of 30 million cycles and an IP20 degree of protection underscore its robust construction. Ideal for demanding sectors in Egypt and the Gulf, such as cement production, oil and gas extraction, water treatment facilities, food and beverage processing, textile manufacturing, and critical building services, the Schneider Electric LADN20 guarantees consistent performance in diverse operational settings.
Details
- Brand: Schneider Electric
- Part number: LADN20
- Series: TeSys Deca
- Category: Auxiliary contact block
Related Schneider Electric parts
- Schneider Electric LADN31 — Auxiliary contact block, 3NO + 1NC, front mounting, screw clamp terminals
- Schneider Electric LADN40 — TeSys Deca Auxiliary Contact Block, 4 NO, Front Mounting, Screw Clamp Terminals
- Schneider Electric GV2ME01 — TeSys Deca Motor Circuit Breaker 3P 0.1-0.16A Thermal Magnetic
- Schneider Electric GV2ME03 — TeSys GV2 motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp button control
- TeSys Deca GV2ME04 3P Motor Circuit Breaker 0.4-0.63A
- Schneider Electric GV2ME05 — TeSys GV2ME motor circuit breaker 3P 0.63-1A thermal-magnetic
- TeSys Deca GV2ME06 motor circuit breaker 3P 1-1.6A thermal magnetic
- TeSys GV2ME07 Motor Circuit Breaker 3P 1.6-2.5A Thermal Magnetic
- TeSys Deca GV2ME32 Motor Circuit Breaker 3P 24-32A Thermal Magnetic Screw Clamp
- Schneider Electric GV2P01 — TeSys GV2 Motor Circuit Breaker 0.1-0.16A 3P Thermal-Magnetic
- Schneider Electric GV2P03 — TeSys Deca motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp rotary handle
- Schneider Electric GV2P04 — TeSys Deca Motor circuit breaker, 3P, 0.4-0.63A, thermal magnetic, screw clamp, rotary handle
Specifications
- Colour
- Dark grey
- Standards
- EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1
- Device short name
- LADN
- Mounting location
- Front
- Dimensions (HxWxD)
- 48 Mm x 26 Mm x 42 Mm
- Mechanical durability
- 30 Mcycles
- Product certifications
- CB Scheme, UL, CSA, CCC, EAC, UKCA
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LADN20
- Pole contact composition
- 2 NO
- Auxiliary contacts operation
- Instantaneous
- [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
- [Ue] rated operational voltage
- 690 V AC 25...400 Hz
- Ambient air temperature for operation
- -5…60 °C
- [Ie] rated operational current (AC-15)
- 6 A at 120 V AC-15
- [Ie] rated operational current (DC-13)
- 0.55 A at 125 V DC-13
- [Ith] conventional free air thermal current
- 10 A (at 60 °C)
