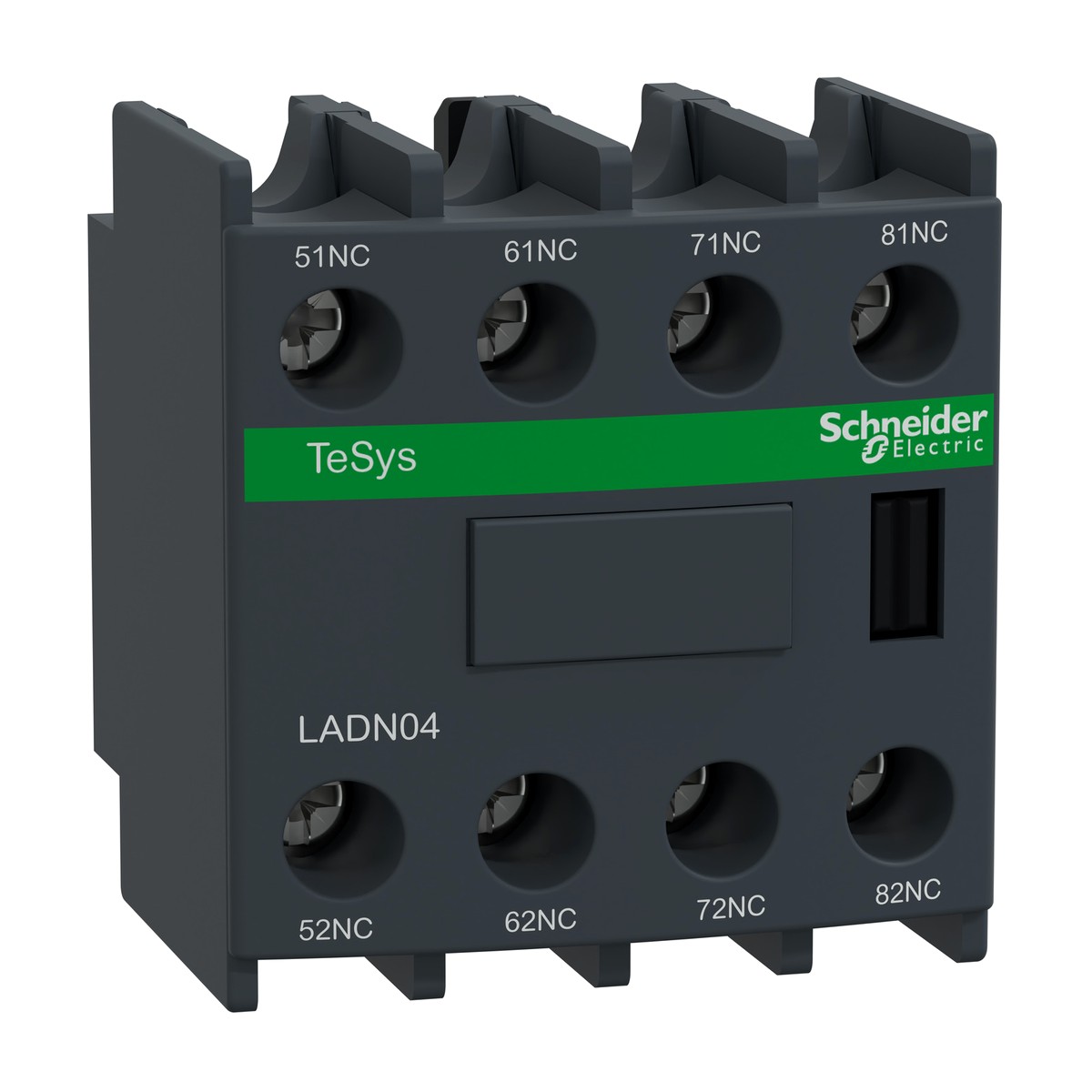

LADN04
Schneider Electric LADN04 Auxiliary contact block, TeSys Deca, 4NC, front mounting, screw clamp. Enhance the control functionality of your TeSys Deca contactors with the Schneider Electric LADN04 auxiliary contact block. This essential component offers four normally closed (4NC) contacts, designed for convenient front mounting and secure screw clamp terminals, accommodating various cable sizes (1-4 mm²). The LADN04 is engineered for reliable performance in demanding industrial environments, featuring a rated operational voltage up to 690 V AC (25-400 Hz) and a robust insulation voltage of 690 V (IEC) / 600 V (UL/CSA). It provides versatile control capabilities with rated operational currents of 6 A at 120 V AC-15 and 0.55 A at 125 V DC-13. Built for mechanical durability of 30 Mcycles and protected to IP20, it operates effectively in ambient air temperatures from -5 to 60 °C. Its compact dimensions (48x44x42 mm) allow for efficient integration. The Schneider Electric LADN04 is an ideal solution for critical applications across Egypt and the Gulf, including motor control in oil and gas facilities, automation systems in water treatment plants, textile machinery, food and beverage processing, and comprehensive building services. This reliable auxiliary contact block ensures precise interlocking and control.
Details
- Brand: Schneider Electric
- Part number: LADN04
- Series: TeSys Deca
- Category: Auxiliary Contact Block
Related Schneider Electric parts
- Schneider Electric LADN11 — TeSys Deca Auxiliary Contact Block, 1NO + 1NC, Front Mounting, Screw Clamp Terminals
- Schneider Electric LADN20 — TeSys Deca Auxiliary Contact Block 2NO Front Mounting Screw Clamp Terminals
- Schneider Electric LADN31 — Auxiliary contact block, 3NO + 1NC, front mounting, screw clamp terminals
- Schneider Electric LADN40 — TeSys Deca Auxiliary Contact Block, 4 NO, Front Mounting, Screw Clamp Terminals
- Schneider Electric GV2ME01 — TeSys Deca Motor Circuit Breaker 3P 0.1-0.16A Thermal Magnetic
- Schneider Electric GV2ME03 — TeSys GV2 motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp button control
- TeSys Deca GV2ME04 3P Motor Circuit Breaker 0.4-0.63A
- Schneider Electric GV2ME05 — TeSys GV2ME motor circuit breaker 3P 0.63-1A thermal-magnetic
- TeSys Deca GV2ME06 motor circuit breaker 3P 1-1.6A thermal magnetic
- TeSys GV2ME07 Motor Circuit Breaker 3P 1.6-2.5A Thermal Magnetic
- TeSys Deca GV2ME32 Motor Circuit Breaker 3P 24-32A Thermal Magnetic Screw Clamp
- Schneider Electric GV2P01 — TeSys GV2 Motor Circuit Breaker 0.1-0.16A 3P Thermal-Magnetic
Specifications
- Depth
- 42 mm
- Width
- 44 mm
- Height
- 48 mm
- Standards
- EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1
- Net weight
- 0.05 Kg
- Mounting location
- Front
- Mechanical durability
- 30 Mcycles
- Product certifications
- CB Scheme, UL, CSA, CCC, EAC, UKCA
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LADN04
- Pole contact composition
- 4 NC
- Product or component type
- Auxiliary contact block
- [Ui] rated insulation voltage
- 690 V (IEC), 600 V (UL/CSA)
- [Ue] rated operational voltage
- 690 V AC 25...400 Hz
- Ambient air temperature for operation
- -5…60 °C
- [Ie] rated operational current (AC-15)
- 6 A at 120 V
- [Ie] rated operational current (DC-13)
- 0.55 A at 125 V
- [Ith] conventional free air thermal current
- 10 A (at 60 °C)
