LC2D25FE7

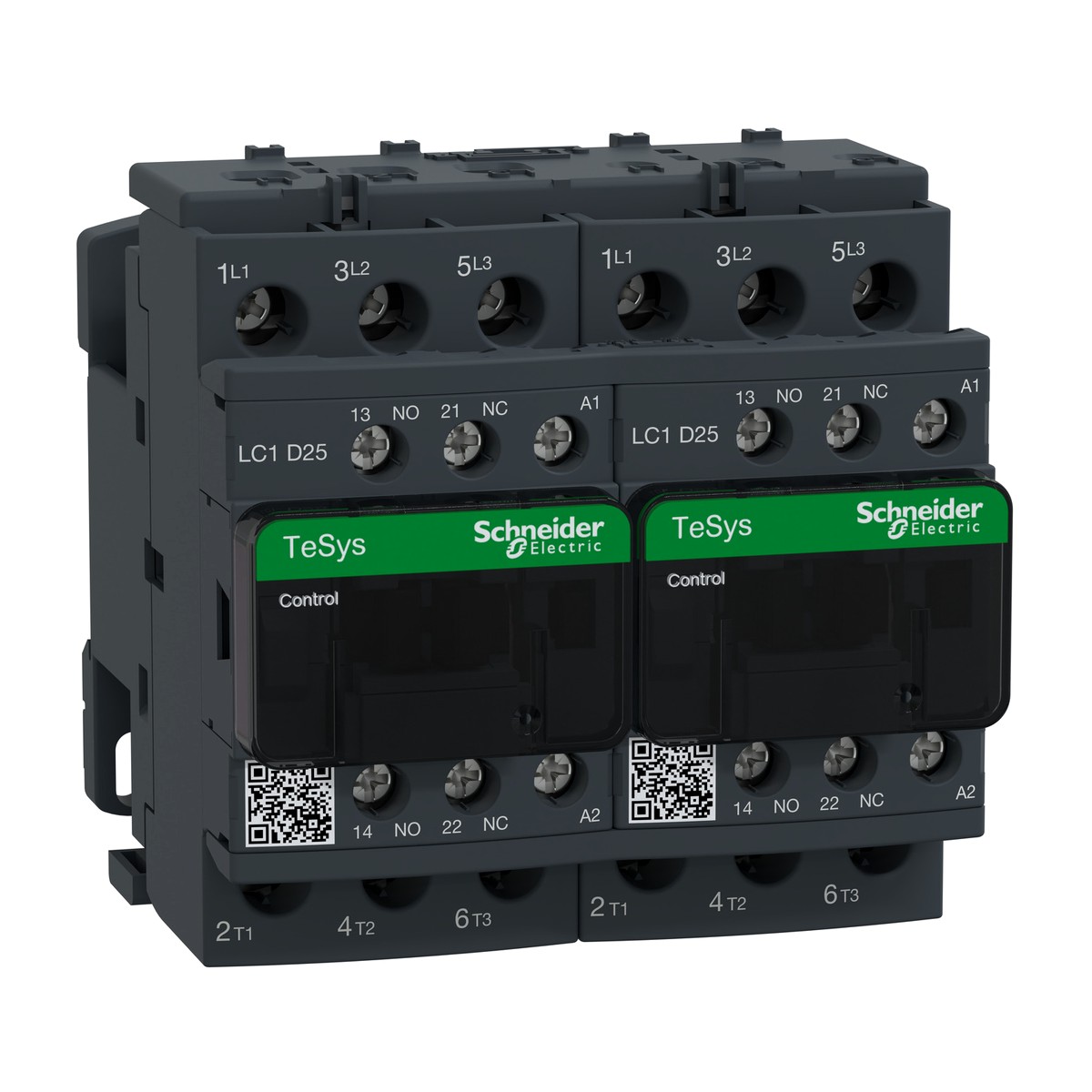

Schneider Electric LC2D25FE7 TeSys Deca reversing contactor 25 A AC-3 3P with 115 V AC coil. The Schneider Electric LC2D25FE7 is a robust TeSys Deca reversing contactor, pre-assembled with a mechanical interlock for safe and reliable motor direction control. Engineered for demanding industrial environments, this 3-pole contactor is rated for 25 A AC-3 at <= 440 V AC and features a 115 V AC 50/60 Hz control coil. It includes 3 NO power poles and an integrated 1 NO + 1 NC auxiliary contact block, all utilizing secure screw clamp terminals for wiring. Capable of controlling motors up to 11 kW at 380-415 V AC, the LC2D25FE7 is ideal for applications requiring forward and reverse operation in sectors such as oil and gas, water treatment, cement, food and beverage, and building services across Egypt and the Gulf region. Its IP20 front face protection and wide operational temperature range of -40 to 60 °C ensure durability. This Schneider Electric component is designed for precise motor control in critical industrial processes.
Details
- Brand: Schneider Electric
- Part number: LC2D25FE7
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D25M7 Reversing Contactor, 3P 25A AC-3, 220V AC 50/60Hz coil
- TeSys Deca LC2D25P7 reversing contactor 25A AC-3 3P 230V AC coil
- TeSys Deca LC2D25U7 reversing contactor 25A AC-3 3P 240V AC 50/60Hz coil
- TeSys Deca LC2D32B7 reversing contactor 32 A AC-3 3P with 24 V AC coil
- Schneider Electric LC2D32BD — TeSys Deca LC2D Reversing Contactor 3P 32A AC-3 24V DC Coil
- TeSys Deca LC2D32BL Reversing Contactor 32A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D32E7 reversing contactor 32A AC-3 3P with 48V AC 50/60Hz coil
- TeSys Deca LC2D32F7 reversing contactor 32A AC-3 3P with 110V AC 50/60Hz coil
- Schneider Electric LC2D32FE7 — TeSys Deca LC2D Reversing Contactor 32A AC-3 3P 115V AC 50/60Hz Coil
- TeSys Deca LC2D32M7 reversing contactor 32 A AC-3 3P 220 V AC 50/60Hz coil
- TeSys Deca LC2D32P7 reversing contactor 32A AC-3 3P with 230V AC coil
- Schneider Electric LC2D32Q7 — TeSys Deca Reversing Contactor 3P 32A AC-3 with 380V AC Coil
Specifications
- Terminal type
- screw clamp terminals
- Mounting support
- Rail, Plate
- Interlocking type
- Mechanical
- Poles description
- 3P
- Utilisation category
- AC-1, AC-3, AC-3e
- Mechanical durability
- 15 Mcycles
- Control circuit voltage
- 115 V AC 50/60 Hz
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D25FE7
- Pole contact composition
- 3 NO
- Rated operational current
- 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Auxiliary contact composition
- 1 NO + 1 NC
- Motor power kW at 380-415V AC
- 11 KW
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
- Ambient air temperature for operation
- -40…60 °C
- [Ith] conventional free air thermal current
- 40 A (at 60 °C) for power circuit
