LC2D25BD

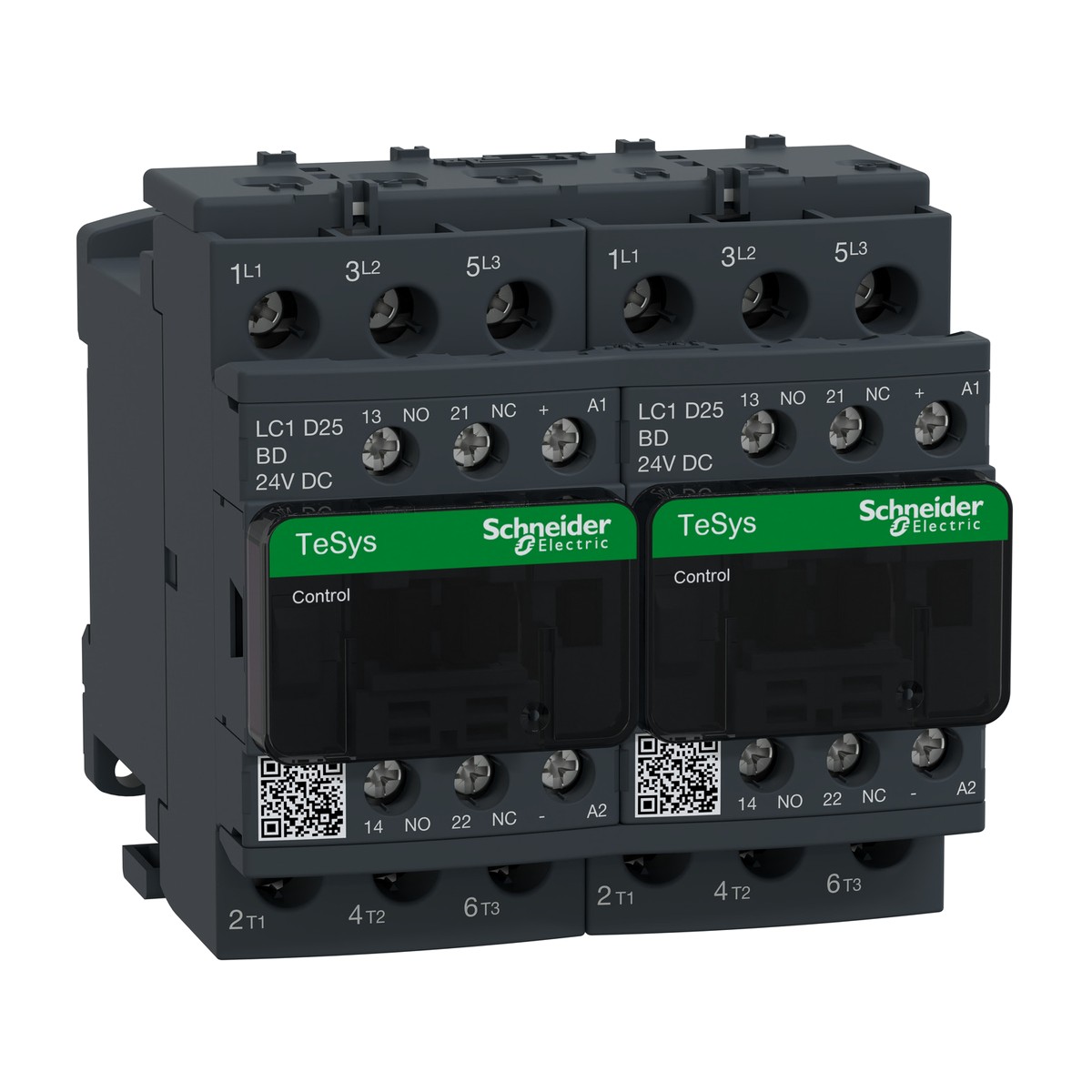

Schneider Electric LC2D25BD TeSys Deca LC2D Reversing Contactor Pair 25A AC-3 3P 24V DC Coil. The Schneider Electric LC2D25BD is a pre-assembled reversing contactor pair from the TeSys Deca series, ideal for reliable motor control and resistive loads. This 3-pole unit has 3 NO power contacts and a 24V DC control coil, suitable for industrial control systems. Rated for 25A AC-3 at <= 440V AC, the LC2D25BD provides 11 kW motor power at 380-400V AC, aligning with standard industrial power in Egypt and the Gulf. Its integrated mechanical interlock and pre-assembled busbar simplify installation. With IP20 front face protection and screw clamp terminals, it ensures secure connections and high durability. The LC2D25BD is excellent for motor reversal in sectors like oil and gas, water treatment, cement, food and beverage, and building services.
Details
- Brand: Schneider Electric
- Part number: LC2D25BD
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D25BL Reversing Contactor 25A AC-3 3P with 24V DC low consumption coil
- TeSys Deca LC2D25E7 reversing contactor 25A AC-3 3P with 48V AC coil
- TeSys Deca LC2D25ED Reversing Contactor 25 A AC-3 3P with 48 V DC coil, screw clamp terminals
- TeSys Deca LC2D25F7 reversing contactor 25 A AC-3 3P with 110 V AC 50/60 Hz coil
- TeSys Deca LC2D25FE7 reversing contactor 25 A AC-3 3P with 115 V AC coil
- TeSys Deca LC2D25M7 Reversing Contactor, 3P 25A AC-3, 220V AC 50/60Hz coil
- TeSys Deca LC2D25P7 reversing contactor 25A AC-3 3P 230V AC coil
- TeSys Deca LC2D25U7 reversing contactor 25A AC-3 3P 240V AC 50/60Hz coil
- TeSys Deca LC2D32B7 reversing contactor 32 A AC-3 3P with 24 V AC coil
- Schneider Electric LC2D32BD — TeSys Deca LC2D Reversing Contactor 3P 32A AC-3 24V DC Coil
- TeSys Deca LC2D32BL Reversing Contactor 32A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D32E7 reversing contactor 32A AC-3 3P with 48V AC 50/60Hz coil
Specifications
- Net weight
- 1.117 Kg
- Motor power kW
- 11 KW at 380...400 V AC 50...60 Hz
- Device short name
- LC2D
- Interlocking type
- Mechanical
- Poles description
- 3P
- Device presentation
- Preassembled with reversing power busbar
- Utilisation category
- AC-1, AC-3, AC-3e
- Contactor application
- Motor control, Resistive load
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D25BD
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Ambient air temperature for operation
- -40…60 °C
