LC2D25BL

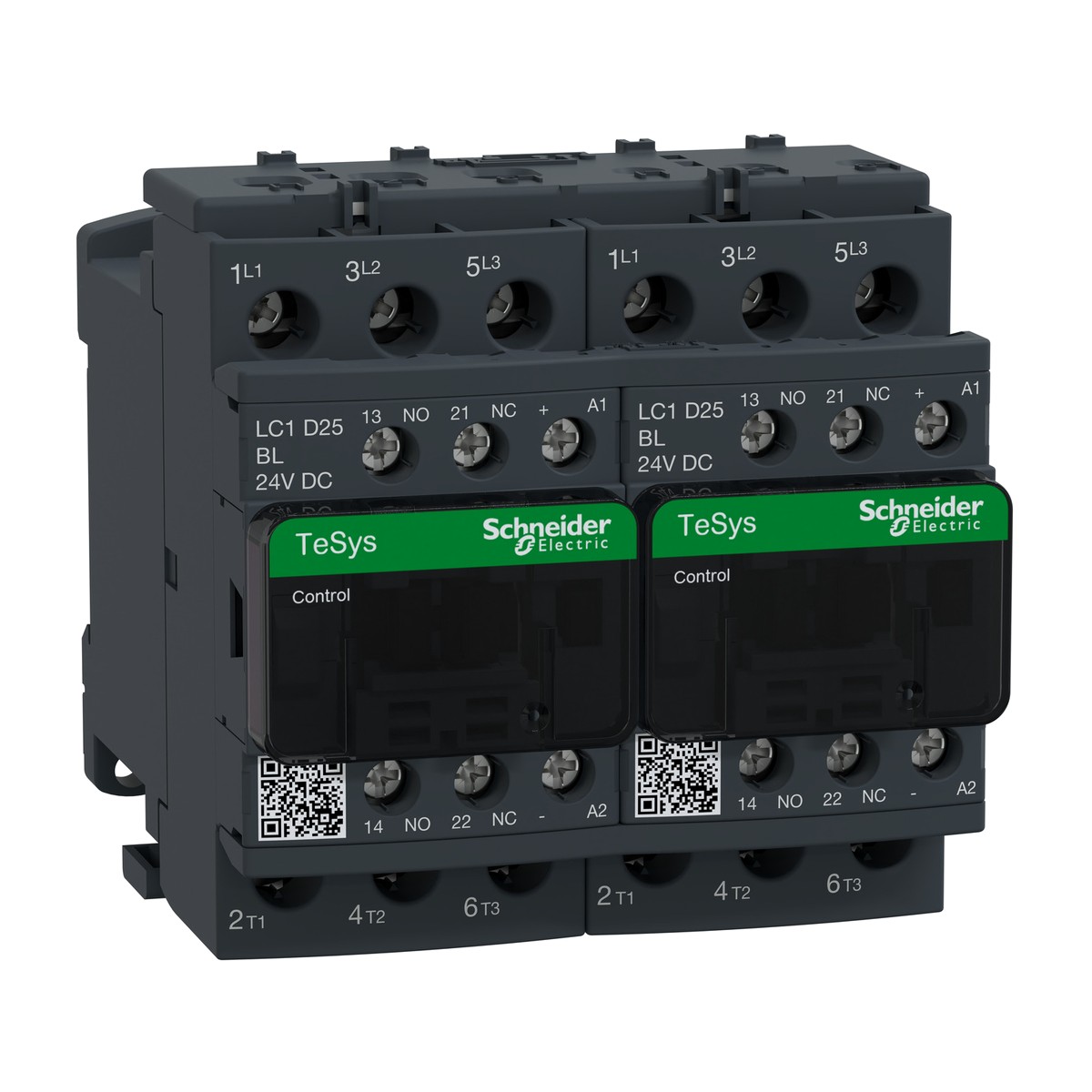

Schneider Electric LC2D25BL TeSys Deca Reversing Contactor 25A AC-3 3P with 24V DC low consumption coil. The Schneider Electric LC2D25BL is a robust TeSys Deca reversing contactor designed for reliable motor control and resistive load applications. This pre-assembled unit, featuring a mechanical interlock and reversing power busbar, simplifies installation and enhances safety. Key specifications include a 3-pole configuration with 3 NO power contacts, a rated operational current of 25A AC-3 at <=440V, and a low consumption 24V DC control circuit. It comes with screw clamp terminals for secure connections and includes 1 NO + 1 NC auxiliary contacts for versatile control schemes. The LC2D25BL is an ideal choice for industries across Egypt and the Gulf, such as cement production, oil and gas, water treatment, food and beverage, textiles, and building services, where precise and dependable motor direction reversal is critical.
Details
- Brand: Schneider Electric
- Part number: LC2D25BL
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D25E7 reversing contactor 25A AC-3 3P with 48V AC coil
- TeSys Deca LC2D25ED Reversing Contactor 25 A AC-3 3P with 48 V DC coil, screw clamp terminals
- TeSys Deca LC2D25F7 reversing contactor 25 A AC-3 3P with 110 V AC 50/60 Hz coil
- TeSys Deca LC2D25FE7 reversing contactor 25 A AC-3 3P with 115 V AC coil
- TeSys Deca LC2D25M7 Reversing Contactor, 3P 25A AC-3, 220V AC 50/60Hz coil
- TeSys Deca LC2D25P7 reversing contactor 25A AC-3 3P 230V AC coil
- TeSys Deca LC2D25U7 reversing contactor 25A AC-3 3P 240V AC 50/60Hz coil
- TeSys Deca LC2D32B7 reversing contactor 32 A AC-3 3P with 24 V AC coil
- Schneider Electric LC2D32BD — TeSys Deca LC2D Reversing Contactor 3P 32A AC-3 24V DC Coil
- TeSys Deca LC2D32BL Reversing Contactor 32A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D32E7 reversing contactor 32A AC-3 3P with 48V AC 50/60Hz coil
- TeSys Deca LC2D32F7 reversing contactor 32A AC-3 3P with 110V AC 50/60Hz coil
Specifications
- Net weight
- 1.117 Kg
- Motor power kW
- 11 KW at 380...400 V AC 50...60 Hz
- Mounting support
- Rail, Plate
- Device short name
- LC2D
- Interlocking type
- Mechanical
- Poles description
- 3P
- Control circuit type
- DC low consumption
- Utilisation category
- AC-1, AC-3, AC-3e
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D25BL
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
- Ambient air temperature for operation
- -40…60 °C
- [Ith] conventional free air thermal current
- 40 A (at 60 °C) for power circuit
