LC2D18BD

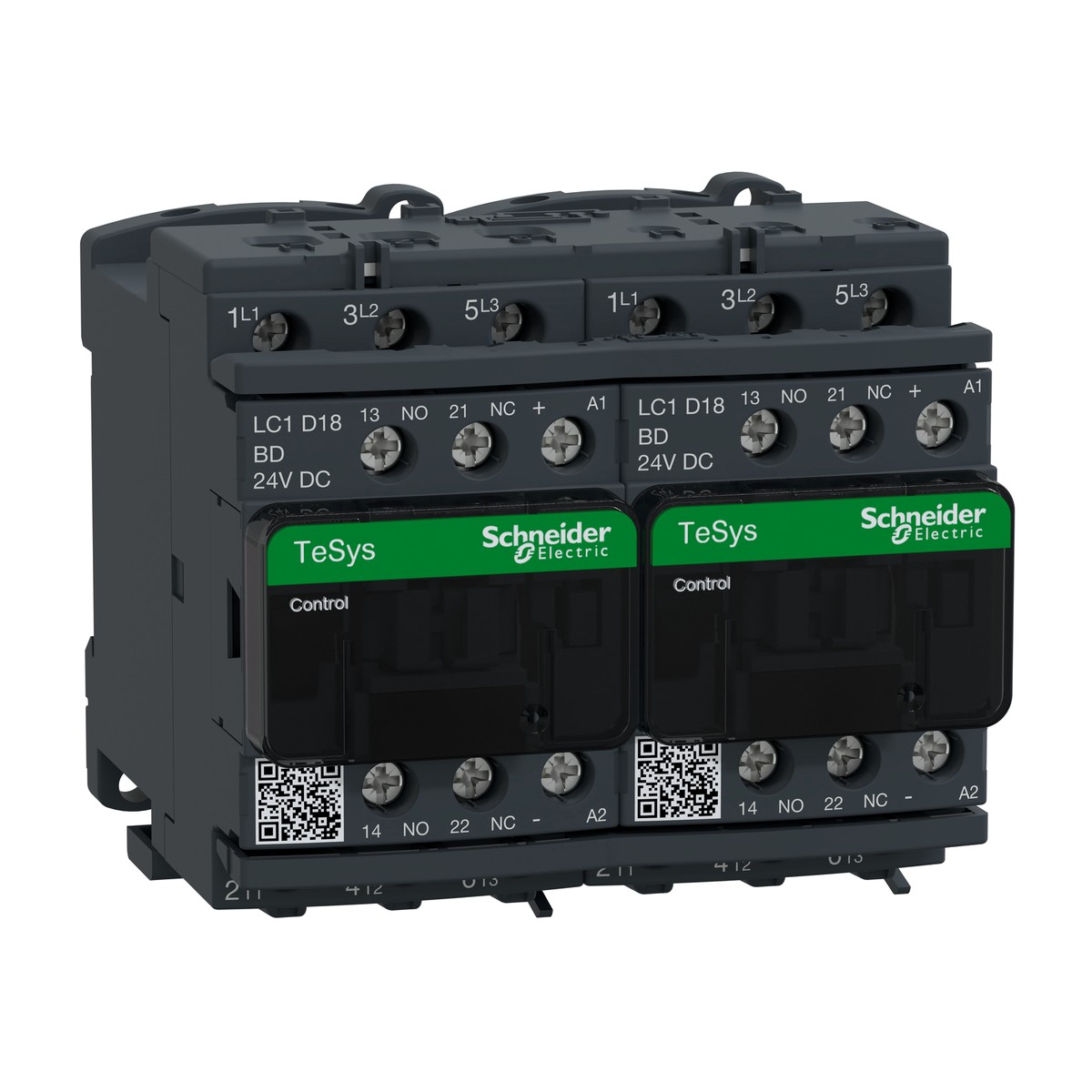

Schneider Electric LC2D18BD Reversing Contactor, TeSys Deca, 3P 18A AC-3, 24V DC Coil. The Schneider Electric LC2D18BD TeSys Deca Reversing Contactor is a robust and reliable solution for bi-directional motor control in industrial applications. This pre-assembled 3-pole unit features a 3NO power contact composition, rated for 18A AC-3 operational current at <= 440V. Its integrated 24V DC coil ensures precise control, complemented by a 1NO+1NC auxiliary contact for versatile signalling. Designed for motor control and resistive loads, the LC2D18BD handles up to 7.5kW at 380-400V AC, making it ideal for the prevalent power standards in Egypt and the Gulf region. With mechanical interlocking for enhanced safety and screw clamp terminals for secure wiring, this contactor offers ease of installation on DIN rail or plate. It is well-suited for demanding environments, including cement plants, oil and gas facilities, water treatment stations, food and beverage production, and general building services. For comprehensive technical details or to discuss your specific requirements, please request a quote.
Details
- Brand: Schneider Electric
- Part number: LC2D18BD
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- LC2D18BL reversing contactor 18A AC-3 3P with 24V DC low consumption coil
- TeSys Deca LC2D18E7 reversing contactor, 3P(3NO), 18A AC-3, 48V AC 50/60Hz coil
- TeSys Deca LC2D18ED reversing contactor 18A AC-3 3P 48V DC coil
- TeSys Deca LC2D18F7 Reversing Contactor, 3P(3NO), 18A AC-3, 110V AC 50/60Hz coil
- Schneider Electric LC2D18FE7 — TeSys Deca LC2D Reversing Contactor 3P 18A AC-3 115V AC Coil Screw Clamp
- TeSys Deca LC2D18M7 Reversing Contactor 18A AC-3 3P with 220V AC coil
- Schneider Electric LC2D18P7 — TeSys Deca LC2D Reversing Contactor 18A AC-3 3P 230V AC coil
- TeSys Deca Reversing Contactor LC2D18V7, 3P, 18A AC-3, 400V AC Coil
- TeSys Deca LC2D25B7 reversing contactor 25 A AC-3 3P with 24 V AC coil
- Schneider Electric LC2D25BD — TeSys Deca LC2D Reversing Contactor Pair 25A AC-3 3P 24V DC Coil
- TeSys Deca LC2D25BL Reversing Contactor 25A AC-3 3P with 24V DC low consumption coil
- TeSys Deca LC2D25E7 reversing contactor 25A AC-3 3P with 48V AC coil
Specifications
- Standards
- IEC 60947-4-1
- Net weight
- 1.037 Kg
- Motor power kW
- 7.5 KW at 380...400 V AC (50...60 Hz)
- Mounting support
- Rail, Plate
- Interlocking type
- Mechanical
- Poles description
- 3P
- Utilisation category
- AC-3, AC-1, AC-3e
- Connections - terminals
- Screw clamp terminals (Power: 1.5-6 mm², Control: 1-4 mm²)
- IP degree of protection
- IP20 (front face)
- Manufacturer part number
- LC2D18BD
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- Control circuit voltage [Uc]
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- Rated insulation voltage [Ui]
- 690 V (Power circuit)
- Rated operational current [Ie]
- 18 A (AC-3, <= 440 V AC)
- Ambient air temperature for operation
- -40…60 °C
