LC2D12FD

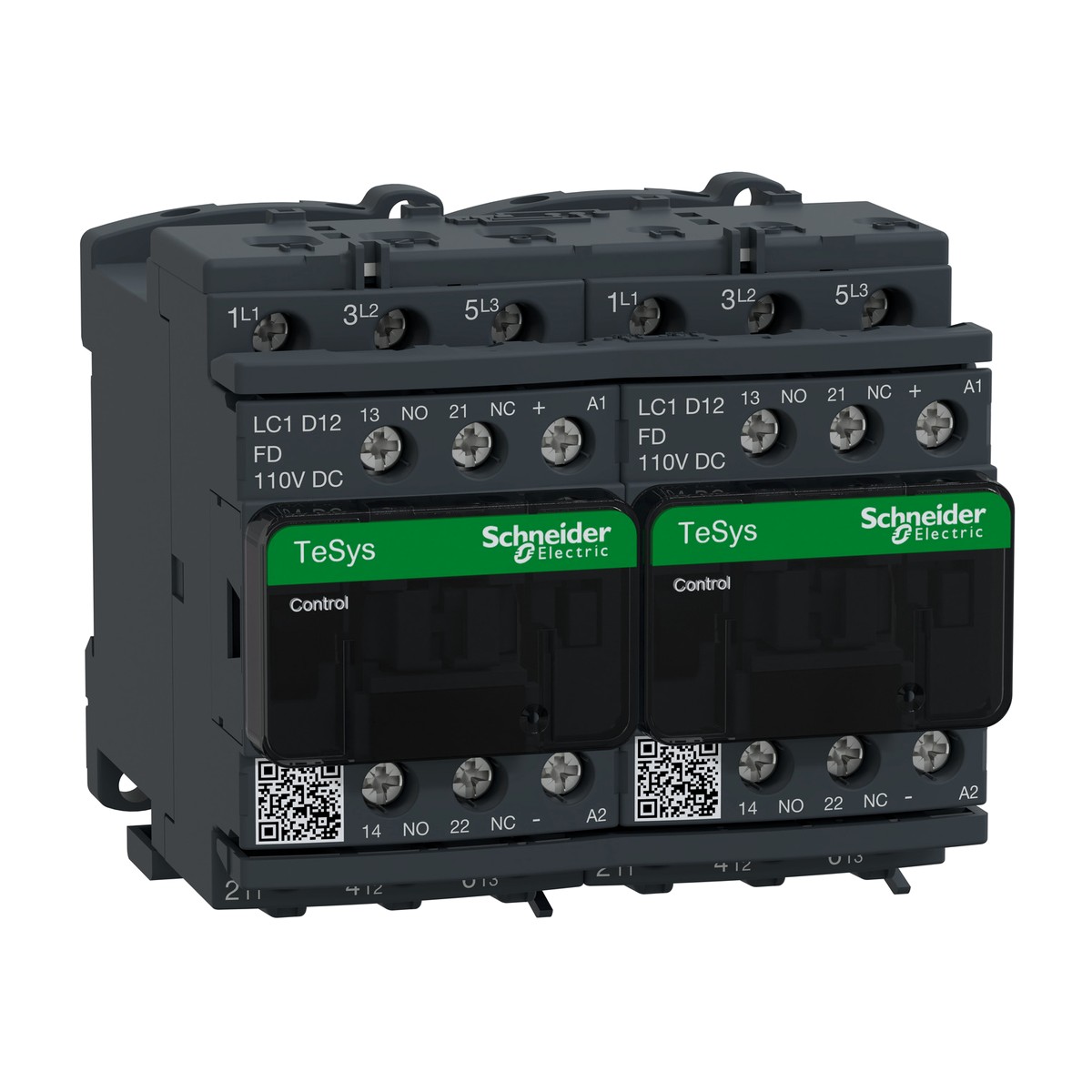

Schneider Electric LC2D12FD TeSys Deca Reversing Contactor 12A AC-3 3P with 110V DC coil. The Schneider Electric LC2D12FD is a robust TeSys Deca Reversing Contactor designed for reliable motor control in demanding industrial environments. This pre-assembled unit features a 3-pole configuration with 3 NO power contacts, rated for 12 A under AC-3 utilisation category up to 440 V AC, and 25 A under AC-1. It comes equipped with a 110 V DC control circuit coil and user-friendly screw clamp terminals for secure connections. A mechanical interlock and preassembled reversing power busbar ensure safe and efficient operation for reversing motor applications. With an auxiliary contact composition of 1 NO + 1 NC and IP20 front face protection, the LC2D12FD offers excellent mechanical durability of 30 Mcycles. Ideal for diverse industries across Egypt and the Gulf, including cement production, oil and gas, water treatment, food and beverage, textiles, and building services, this Schneider Electric contactor provides consistent performance.
Details
- Brand: Schneider Electric
- Part number: LC2D12FD
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D12FE7 reversing contactor 12A AC-3 3P 115V AC 50/60Hz coil
- Schneider Electric LC2D12M7 — TeSys Deca LC2D reversing contactor 12A AC-3 3P with 220V AC coil screw clamp terminals
- Schneider Electric LC2D12P7 — TeSys Deca Reversing Contactor 12A AC-3 3P 230V AC Coil
- TeSys Deca LC2D18B7 reversing contactor 18A AC-3 3P with 24V AC coil
- LC2D18BD Reversing Contactor, TeSys Deca, 3P 18A AC-3, 24V DC Coil
- LC2D18BL reversing contactor 18A AC-3 3P with 24V DC low consumption coil
- TeSys Deca LC2D18E7 reversing contactor, 3P(3NO), 18A AC-3, 48V AC 50/60Hz coil
- TeSys Deca LC2D18ED reversing contactor 18A AC-3 3P 48V DC coil
- TeSys Deca LC2D18F7 Reversing Contactor, 3P(3NO), 18A AC-3, 110V AC 50/60Hz coil
- Schneider Electric LC2D18FE7 — TeSys Deca LC2D Reversing Contactor 3P 18A AC-3 115V AC Coil Screw Clamp
- TeSys Deca LC2D18M7 Reversing Contactor 18A AC-3 3P with 220V AC coil
- Schneider Electric LC2D18P7 — TeSys Deca LC2D Reversing Contactor 18A AC-3 3P 230V AC coil
Specifications
- Interlocking type
- Mechanical
- Poles description
- 3P
- Device presentation
- Preassembled with reversing power busbar
- Utilisation category
- AC-3, AC-1
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D12FD
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- [Uc] control circuit voltage
- 110 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current AC-1
- 25 A (at <60 °C) at <= 440 V AC for power circuit
- [Ie] rated operational current AC-3
- 12 A (at <60 °C) at <= 440 V AC for power circuit
- Motor power kW at 380-400 V AC 50 Hz
- 5.5 KW
- Ambient air temperature for operation
- -40…60 °C
- [Ue] rated operational voltage Power circuit
- <= 690 V AC 25...400 Hz
