LC2D12BL

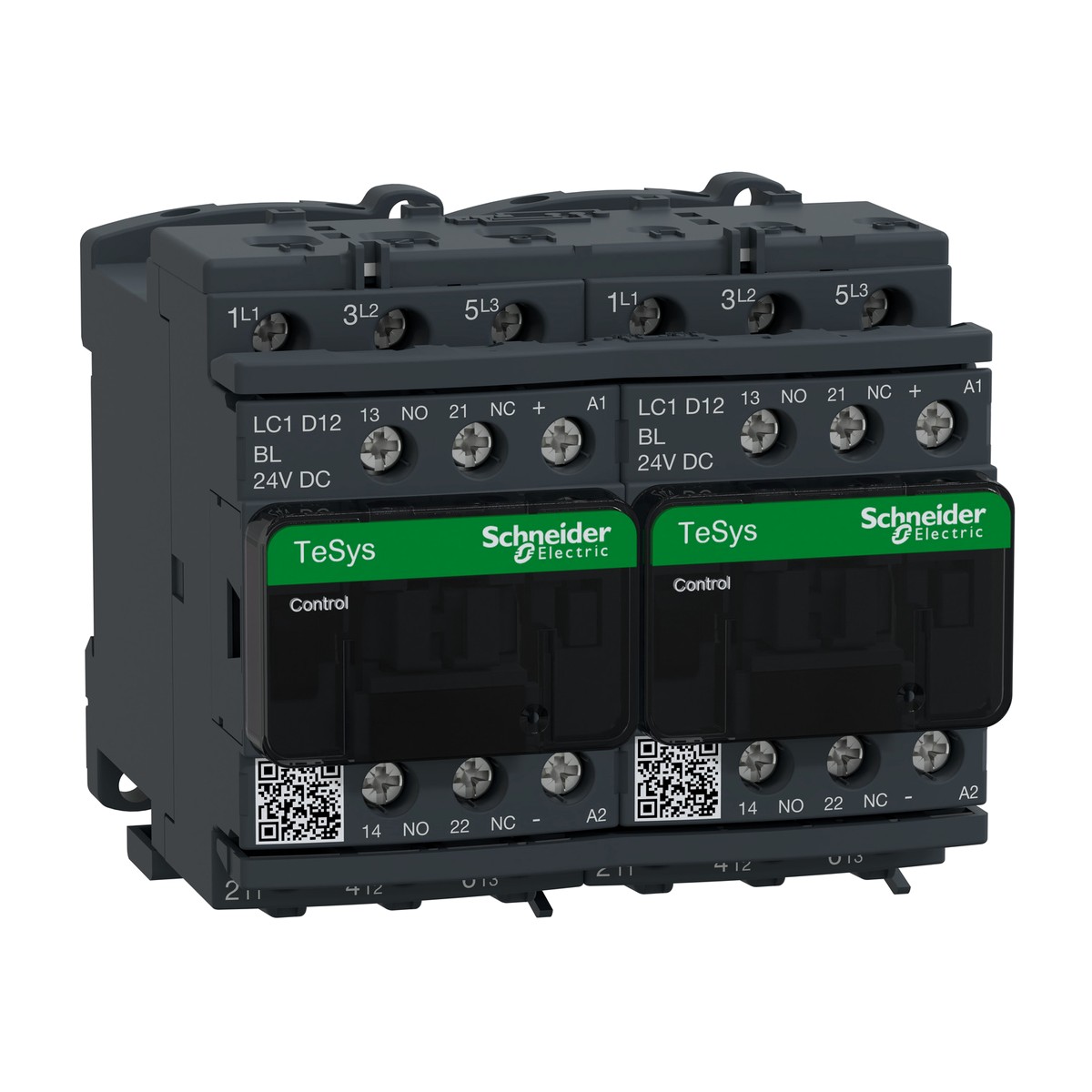

Schneider Electric LC2D12BL TeSys Deca LC2D Reversing Contactor, 3P 12A AC-3, 24V DC Coil. The Schneider Electric LC2D12BL TeSys Deca Reversing Contactor is a robust solution for motor control and resistive load applications in industrial environments across Egypt and the Gulf. Part of the renowned TeSys Deca range, this pre-assembled unit features a 3-pole configuration with 3 NO power contacts, rated for a 12A AC-3 operational current at <= 440V. It incorporates a reliable 24V DC LC (Low Consumption) coil for efficient control and comes with convenient screw clamp terminals for both power and control circuits, ensuring secure connections. The LC2D12BL is designed for reversing applications, presented preassembled with a power busbar and featuring both mechanical and electrical interlocking for enhanced safety and operational integrity. With an IP20 front face protection and robust construction, it's suitable for demanding sectors such as oil and gas, water treatment, cement, food and beverage, textiles, and building services. Its 5.5 kW motor power rating at 380-400 V AC 50 Hz makes it an ideal choice for regional power standards.
Details
- Brand: Schneider Electric
- Part number: LC2D12BL
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D12E7 Reversing Contactor, 12A AC-3, 3P, 48V AC Coil, Screw Clamp Terminals
- TeSys Deca LC2D12ED Reversing Contactor 12A AC-3 3P 48V DC coil
- Schneider Electric LC2D12F7 — TeSys Deca reversing contactor 12A AC-3 3P with 110V AC 50/60Hz coil
- TeSys Deca LC2D12FD Reversing Contactor 12A AC-3 3P with 110V DC coil
- TeSys Deca LC2D12FE7 reversing contactor 12A AC-3 3P 115V AC 50/60Hz coil
- Schneider Electric LC2D12M7 — TeSys Deca LC2D reversing contactor 12A AC-3 3P with 220V AC coil screw clamp terminals
- Schneider Electric LC2D12P7 — TeSys Deca Reversing Contactor 12A AC-3 3P 230V AC Coil
- TeSys Deca LC2D18B7 reversing contactor 18A AC-3 3P with 24V AC coil
- LC2D18BD Reversing Contactor, TeSys Deca, 3P 18A AC-3, 24V DC Coil
- LC2D18BL reversing contactor 18A AC-3 3P with 24V DC low consumption coil
- TeSys Deca LC2D18E7 reversing contactor, 3P(3NO), 18A AC-3, 48V AC 50/60Hz coil
- TeSys Deca LC2D18ED reversing contactor 18A AC-3 3P 48V DC coil
Specifications
- Motor power kW
- 5.5 KW at 380...400 V AC 50 Hz
- Device short name
- LC2D
- Interlocking type
- Mechanical
- Poles description
- 3P
- Device presentation
- Preassembled with reversing power busbar
- Utilisation category
- AC-1, AC-3, AC-3e
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D12BL
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Ambient air temperature for operation
- -40…60 °C
- [Ui] rated insulation voltage Power circuit
- 690 V conforming to IEC 60947-4-1
