LC2D12BD

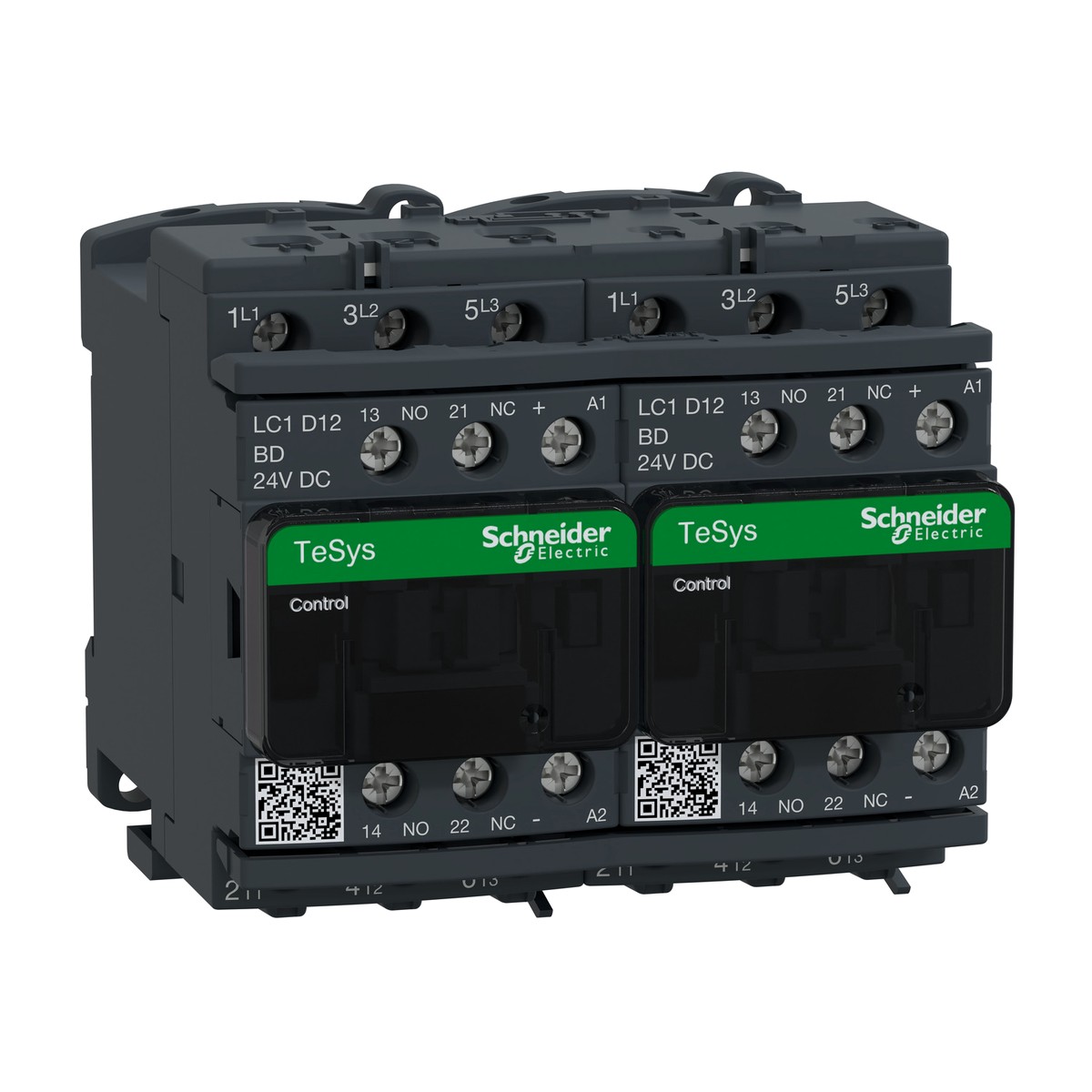

Schneider Electric LC2D12BD TeSys Deca reversing contactor 12 A AC-3 3P with 24V DC coil. The Schneider Electric LC2D12BD is a high-performance TeSys Deca reversing contactor, pre-assembled for convenience and reliable motor control. This robust 3-pole contactor features 3 normally open (NO) power contacts and is rated for 12 A under AC-3 utilization category at up to 440V AC. It is specifically designed for motors up to 5.5 kW at 380-400V AC, making it ideal for the power standards in Egypt and the Gulf. Control is managed by a 24V DC coil, ensuring compatibility with modern industrial automation systems. The unit incorporates a mechanical interlock for safe reversing operations and utilizes secure screw clamp terminals for both power and control circuits, offering straightforward installation. With an IP20 front face protection, the LC2D12BD is built for demanding industrial environments. It's a prime choice for applications such as pump control in water treatment, conveyor systems in food and beverage, or fan motors in building services, as well as critical processes in the cement and oil and gas sectors.
Details
- Brand: Schneider Electric
- Part number: LC2D12BD
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- Schneider Electric LC2D12BL — TeSys Deca LC2D Reversing Contactor, 3P 12A AC-3, 24V DC Coil
- TeSys Deca LC2D12E7 Reversing Contactor, 12A AC-3, 3P, 48V AC Coil, Screw Clamp Terminals
- TeSys Deca LC2D12ED Reversing Contactor 12A AC-3 3P 48V DC coil
- Schneider Electric LC2D12F7 — TeSys Deca reversing contactor 12A AC-3 3P with 110V AC 50/60Hz coil
- TeSys Deca LC2D12FD Reversing Contactor 12A AC-3 3P with 110V DC coil
- TeSys Deca LC2D12FE7 reversing contactor 12A AC-3 3P 115V AC 50/60Hz coil
- Schneider Electric LC2D12M7 — TeSys Deca LC2D reversing contactor 12A AC-3 3P with 220V AC coil screw clamp terminals
- Schneider Electric LC2D12P7 — TeSys Deca Reversing Contactor 12A AC-3 3P 230V AC Coil
- TeSys Deca LC2D18B7 reversing contactor 18A AC-3 3P with 24V AC coil
- LC2D18BD Reversing Contactor, TeSys Deca, 3P 18A AC-3, 24V DC Coil
- LC2D18BL reversing contactor 18A AC-3 3P with 24V DC low consumption coil
- TeSys Deca LC2D18E7 reversing contactor, 3P(3NO), 18A AC-3, 48V AC 50/60Hz coil
Specifications
- Net weight
- 1.027 Kg
- Device short name
- LC2D
- Interlocking type
- Mechanical
- Poles description
- 3P
- Utilisation category
- AC-1, AC-3, AC-3e
- Electrical durability
- 2 Mcycles 12 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- Motor power kW (50 Hz)
- 5.5 KW at 380...400 V AC
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D12BD
- Pole contact composition
- 3 NO
- Product or component type
- Reversing contactor
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current AC-3
- 12 A (at <60 °C) at <= 440 V AC
- Ambient air temperature for operation
- -40…60 °C
- [Ui] rated insulation voltage Power circuit
- 690 V conforming to IEC 60947-4-1
