LC2D09BD

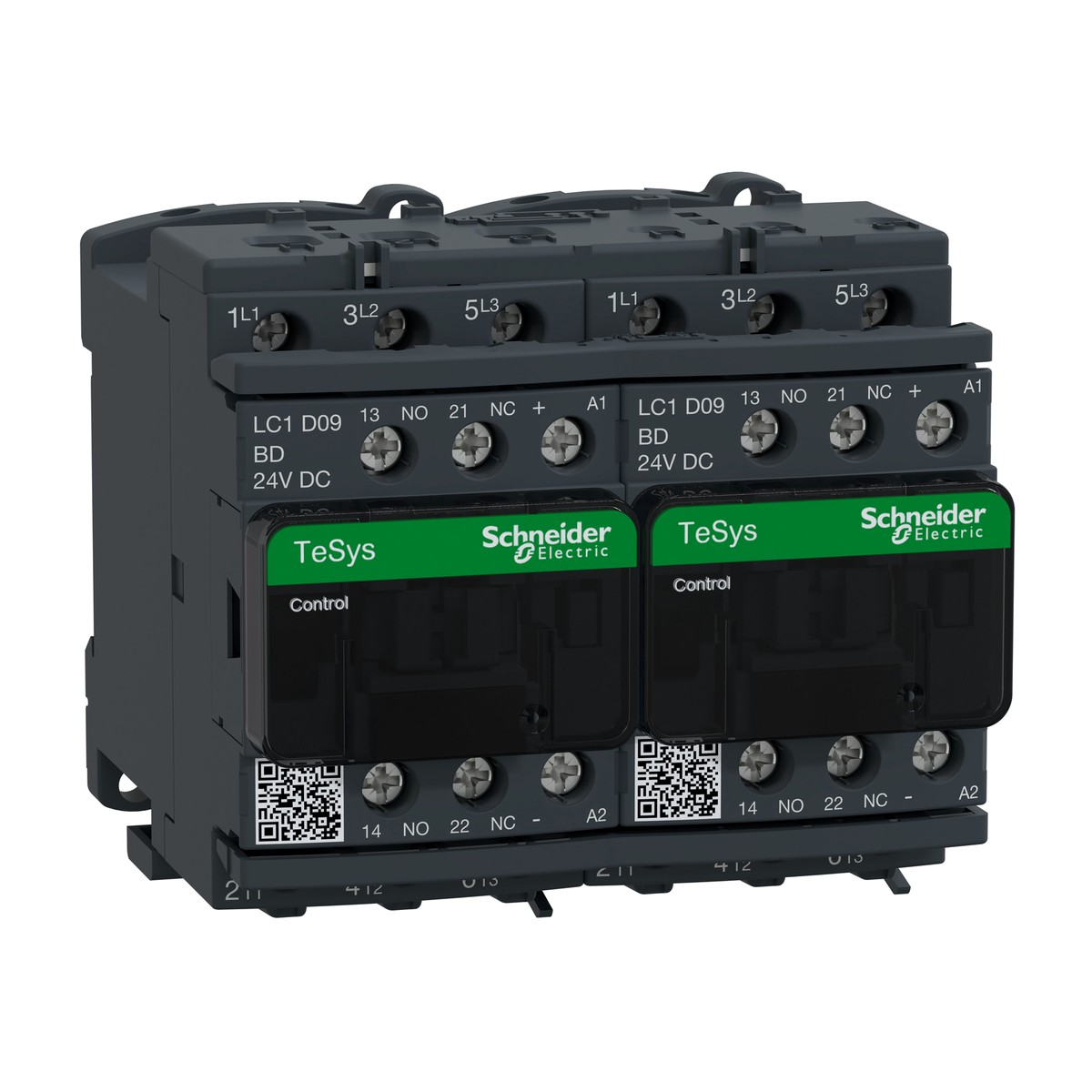

Schneider Electric LC2D09BD TeSys Deca Reversing Contactor 9A AC-3 3P with 24V DC coil. The Schneider Electric LC2D09BD TeSys Deca reversing contactor is a pre-assembled, robust solution engineered for reliable motor control in industrial applications across Egypt and the Gulf. Featuring a 3-pole configuration with 3 NO contacts, this unit is rated for 9A AC-3 at <= 440V and handles motor power up to 4 kW at 380-400V AC. Its 24V DC control coil, coupled with integrated bidirectional peak limiting diode suppressor, ensures precise and efficient operation. This Schneider Electric LC2D09BD includes screw clamp terminals for secure connections and offers mechanical interlocking for enhanced safety in reversing motor applications. With an IP20 front face rating and a wide operating temperature range of -40 to 60 °C, it's suitable for demanding environments. Typical applications span crucial sectors like oil and gas, water treatment, food and beverage, cement production, and building services.
Details
- Brand: Schneider Electric
- Part number: LC2D09BD
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D09BL reversing contactor 9A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D09E7 reversing contactor 9 A AC-3 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC2D09FE7 Reversing Contactor 9A AC-3 3P with 115V AC 50/60Hz coil
- TeSys Deca LC2D09M7 reversing contactor 9A AC-3 3P with 220V AC coil
- TeSys Deca LC2D09P7 Reversing Contactor, 9A AC-3, 3P, 230V AC Coil
- TeSys Deca LC2D09Q7 Reversing Contactor 9A AC-3 3P 380V AC 50/60Hz coil
- TeSys Deca LC2D09U7 Reversing Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC2D09V7 Reversing Contactor, 3P(3NO), 9A AC-3, 400V AC Coil, Screw Clamp
- TeSys Deca LC2D12B7 reversing contactor 3P(3NO) AC-3 12A with 24V AC 50/60Hz coil
- TeSys Deca LC2D12BD reversing contactor 12 A AC-3 3P with 24V DC coil
- Schneider Electric LC2D12BL — TeSys Deca LC2D Reversing Contactor, 3P 12A AC-3, 24V DC Coil
- TeSys Deca LC2D12E7 Reversing Contactor, 12A AC-3, 3P, 48V AC Coil, Screw Clamp Terminals
Specifications
- Net weight
- 1.017 Kg
- Motor power kW
- 4 KW at 380...400 V AC 50...60 Hz
- Device short name
- LC2D
- Interlocking type
- Mechanical
- Poles description
- 3P
- Device presentation
- Preassembled with reversing power busbar
- Utilisation category
- AC-3, AC-1, AC-3e
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D09BD
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Ambient air temperature for operation
- -40…60 °C
