LRD35

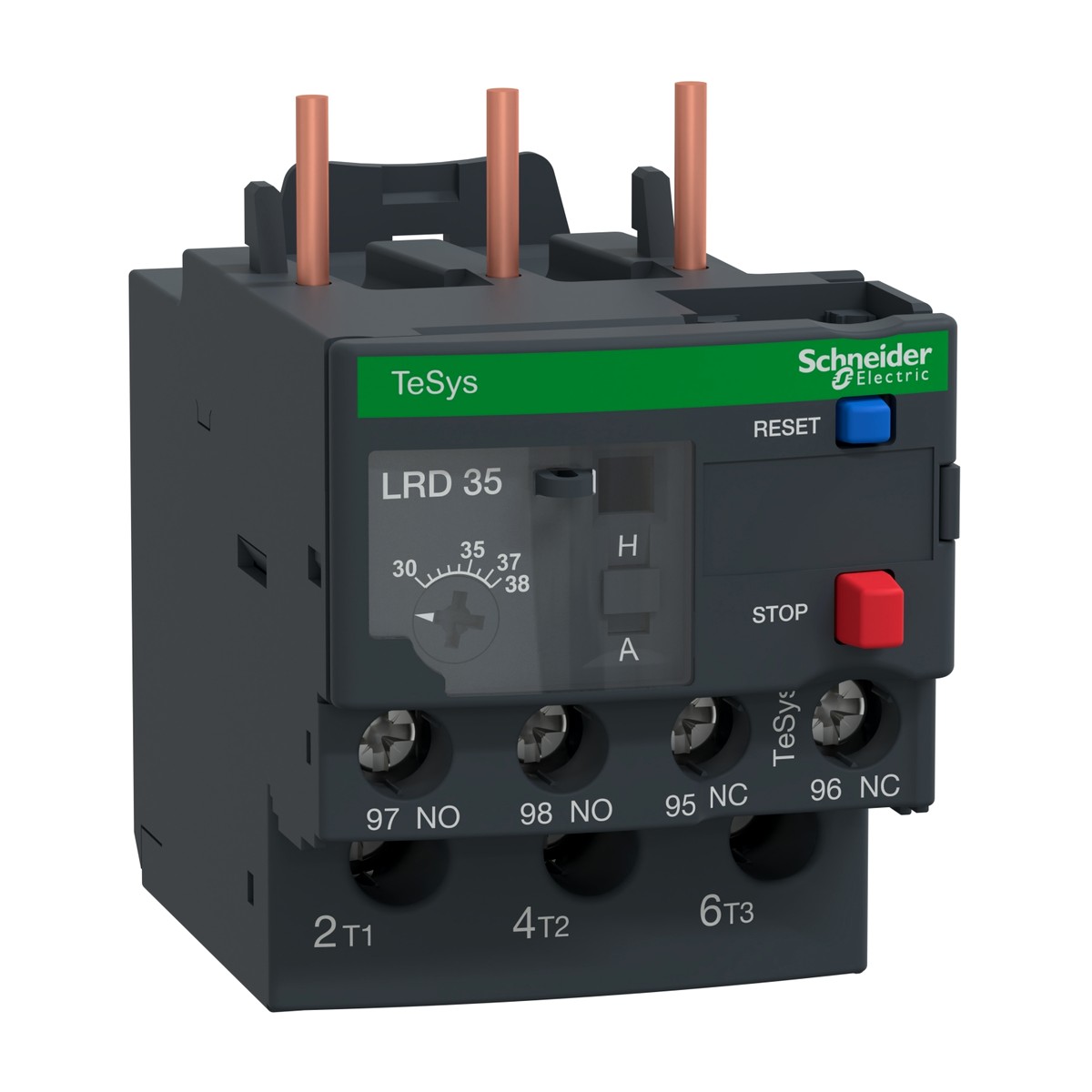

Schneider Electric LRD35 TeSys Deca Thermal Overload Relay 690VAC 30-38A 1NO+1NC Class 10A Screw Clamp. The Schneider Electric LRD35 TeSys Deca thermal overload relay is engineered to provide robust and reliable motor protection against sustained overloads and phase failures. As a critical component in industrial control systems, this LRD35 model features a thermal protection adjustment range of 30 to 38 Amperes and conforms to Class 10A tripping characteristics, ensuring rapid disconnection under fault conditions. It boasts a high rated operational voltage of 690 V AC, making it suitable for a wide array of power circuits operating from 0 to 400 Hz. Equipped with 1 NO + 1 NC auxiliary contacts and screw clamp terminals, it facilitates straightforward integration into existing setups. This versatile Schneider Electric LRD35 relay is a perfect fit for diverse industrial applications across Egypt and the Gulf region, including critical infrastructure such as water treatment plants, oil and gas facilities, and manufacturing sectors like food and beverage, cement, and textiles, safeguarding essential motor-driven machinery.
Details
- Brand: Schneider Electric
- Part number: LRD35
- Series: TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- TeSys Deca LC2D09B7 Reversing Contactor, 3P 9A AC-3, 24V AC Coil, Mechanical Interlock
- TeSys Deca LC2D09BD Reversing Contactor 9A AC-3 3P with 24V DC coil
- TeSys Deca LC2D09BL reversing contactor 9A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D09E7 reversing contactor 9 A AC-3 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC2D09FE7 Reversing Contactor 9A AC-3 3P with 115V AC 50/60Hz coil
- TeSys Deca LC2D09M7 reversing contactor 9A AC-3 3P with 220V AC coil
- TeSys Deca LC2D09P7 Reversing Contactor, 9A AC-3, 3P, 230V AC Coil
- TeSys Deca LC2D09Q7 Reversing Contactor 9A AC-3 3P 380V AC 50/60Hz coil
- TeSys Deca LC2D09U7 Reversing Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC2D09V7 Reversing Contactor, 3P(3NO), 9A AC-3, 400V AC Coil, Screw Clamp
- TeSys Deca LC2D12B7 reversing contactor 3P(3NO) AC-3 12A with 24V AC 50/60Hz coil
- TeSys Deca LC2D12BD reversing contactor 12 A AC-3 3P with 24V DC coil
Specifications
- Depth
- 70 Mm
- Width
- 45 Mm
- Height
- 66 Mm
- Standards
- EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
- Net weight
- 0.124 Kg
- Network type
- DC, AC
- Mounting support
- Plate, with specific accessories; Rail, with specific accessories; Under contactor
- Device short name
- LRD
- Product compatibility
- LC1D32, LC1D38
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LRD35
- Auxiliary contact composition
- 1 NO + 1 NC
- Tightening torque (Power circuit)
- 2.5 N.m - on screw clamp terminals
- Thermal protection adjustment range
- 30…38 A
- Ambient air temperature for operation
- -20…60 °C without derating conforming to IEC 60947-4-1
- Connections - terminals (Power circuit)
- Screw clamp (1.5…10 mm² flexible without cable end; 1…6 mm² flexible with cable end; 1.5…10 mm² solid without cable end)
- [Ui] rated insulation voltage (Power circuit)
- 690 V conforming to IEC 60947-4-1
- [Ue] rated operational voltage (Power circuit)
- 690 V AC 0...400 Hz
