LRD10

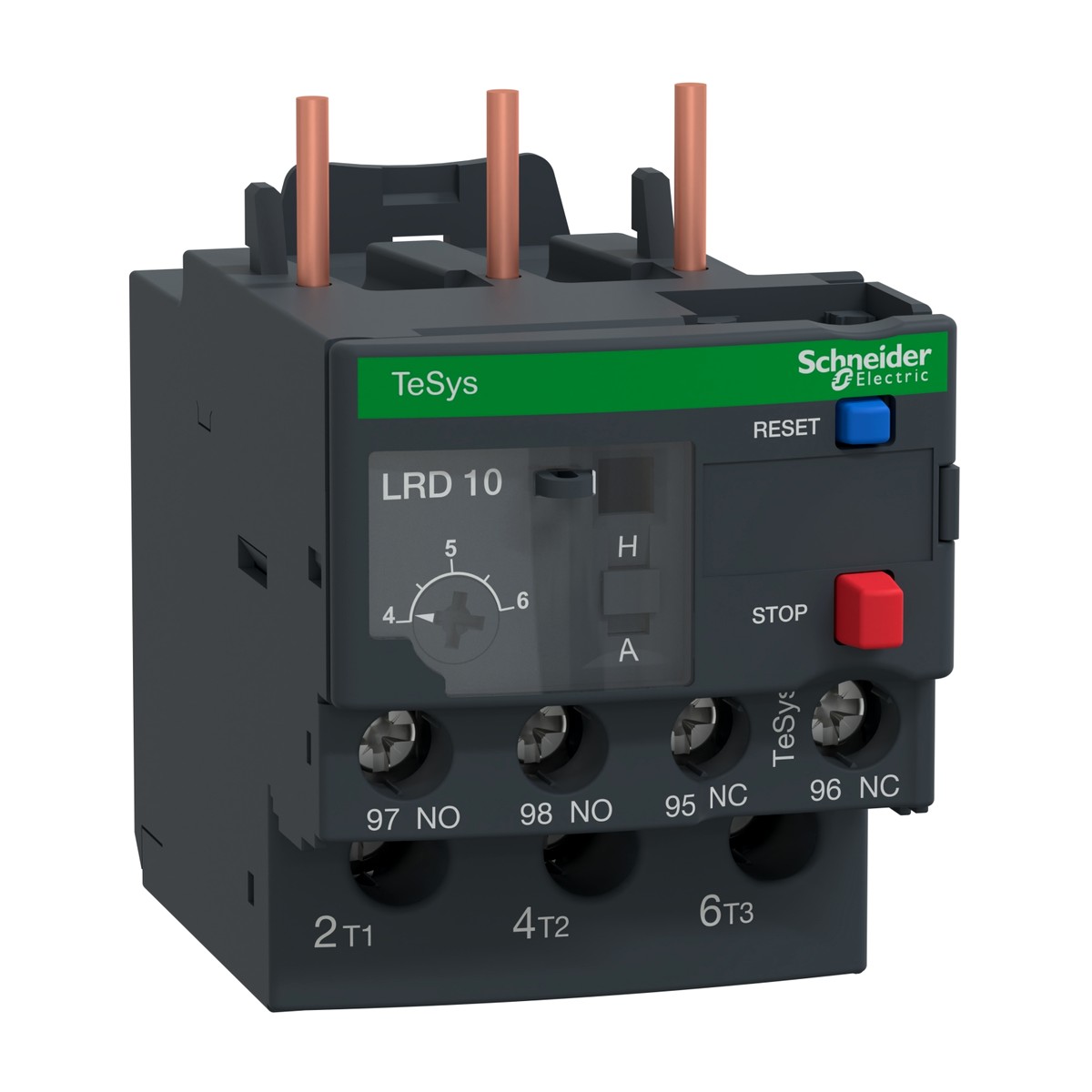

Schneider Electric LRD10 TeSys Deca thermal overload relay, 690VAC, 3P, 4-6A, 1NO+1NC, Class 10A. The Schneider Electric LRD10 thermal overload relay is a vital component for robust motor protection in industrial and commercial applications. Part of the trusted TeSys Deca range, this LRD10 relay safeguards motors against sustained overload, helping to prevent costly downtime and extend equipment lifespan. It offers a precise thermal protection adjustment range of 4 to 6 Amperes, suitable for a variety of motor sizes, and is classified as Class 10A conforming to IEC 60947-4-1 for quick tripping response. Designed for seamless integration with TeSys Deca contactors, including models like LC1D09, LC1D18, and LC1D25, the LRD10 features a 690VAC rated operational voltage and convenient screw clamp terminals for reliable wiring. Its auxiliary contact composition of 1 NO + 1 NC provides flexible signalling and control options. This Schneider Electric relay is ideal for harsh environments, operating effectively from -20 to 60 °C.
Details
- Brand: Schneider Electric
- Part number: LRD10
- Series: TeSys Deca
- Category: Thermal Overload Relay
