LRD3322

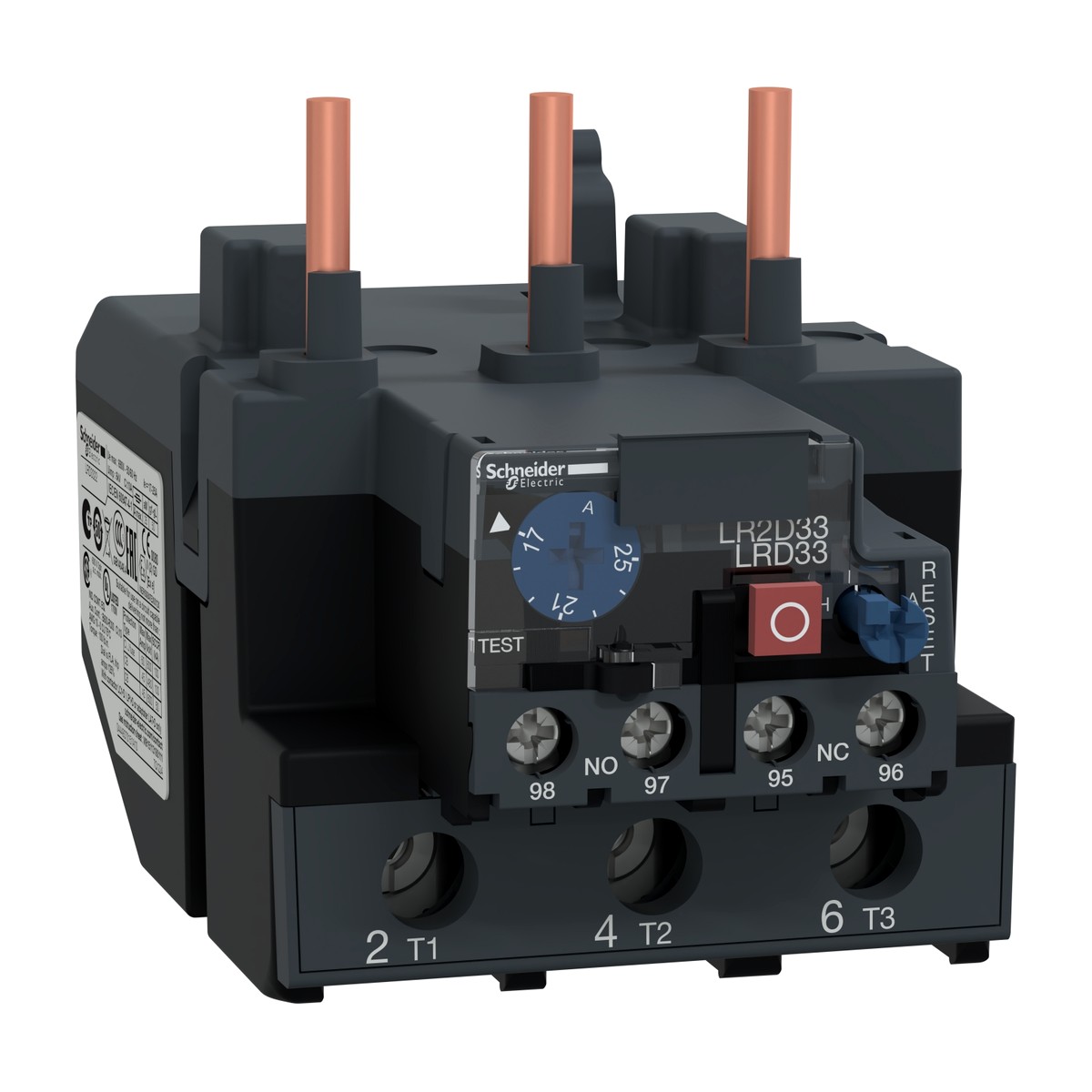

Schneider Electric LRD3322 TeSys Deca Thermal Overload Relay. The Schneider Electric LRD3322 is a robust TeSys Deca differential thermal overload relay, expertly engineered to provide critical motor protection against sustained overloads and phase failures. With a thermal protection adjustment range of 17-25 A and conforming to Class 10A (IEC 60947-4-1), this versatile relay supports both AC and DC network types across a wide 0-400 Hz frequency range. It boasts a high rated operational voltage of 1000 V AC for the power circuit, ensuring broad applicability. Essential for safeguarding critical motors in diverse industrial sectors across Egypt and the Gulf region, including demanding environments in oil and gas, water treatment, cement production, food and beverage processing, and textiles. The LRD3322 integrates seamlessly with LC1D80 and LC1D95 contactors, features 1 NO + 1 NC auxiliary contacts, and offers IP20 protection. Its reliable operation across an ambient temperature range of -20 to 60 °C makes it an ideal component for maintaining operational continuity.
Details
- Brand: Schneider Electric
- Part number: LRD3322
- Series: TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- TeSys Deca LRD3363 thermal overload relay 63-80A Class 10A
- Schneider Electric LRD35 — TeSys Deca Thermal Overload Relay 690VAC 30-38A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LC2D09B7 Reversing Contactor, 3P 9A AC-3, 24V AC Coil, Mechanical Interlock
- TeSys Deca LC2D09BD Reversing Contactor 9A AC-3 3P with 24V DC coil
- TeSys Deca LC2D09BL reversing contactor 9A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D09E7 reversing contactor 9 A AC-3 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC2D09FE7 Reversing Contactor 9A AC-3 3P with 115V AC 50/60Hz coil
- TeSys Deca LC2D09M7 reversing contactor 9A AC-3 3P with 220V AC coil
- TeSys Deca LC2D09P7 Reversing Contactor, 9A AC-3, 3P, 230V AC Coil
- TeSys Deca LC2D09Q7 Reversing Contactor 9A AC-3 3P 380V AC 50/60Hz coil
- TeSys Deca LC2D09U7 Reversing Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC2D09V7 Reversing Contactor, 3P(3NO), 9A AC-3, 400V AC Coil, Screw Clamp
Specifications
- Net weight
- 0.51 Kg
- Control type
- Red push-button: stop; Blue push-button: reset
- Network type
- DC, AC
- Mounting support
- Plate, with specific accessories; Rail, with specific accessories; Under contactor
- Network frequency
- 0...400 Hz
- Product compatibility
- LC1D80, LC1D95
- Dimensions (H x W x D)
- 81 Mm x 70 Mm x 115 Mm
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LRD3322
- Product or component type
- Differential thermal overload relay
- Auxiliary contact composition
- 1 NO + 1 NC
- Rated insulation voltage [Ui]
- Power circuit: 1000 V conforming to IEC 60947-4-1
- Rated operational voltage [Ue]
- 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
- Thermal protection adjustment range
- 17…25 A
- Ambient air temperature for operation
- -20…60 °C without derating conforming to IEC 60947-4-1
