LRD14

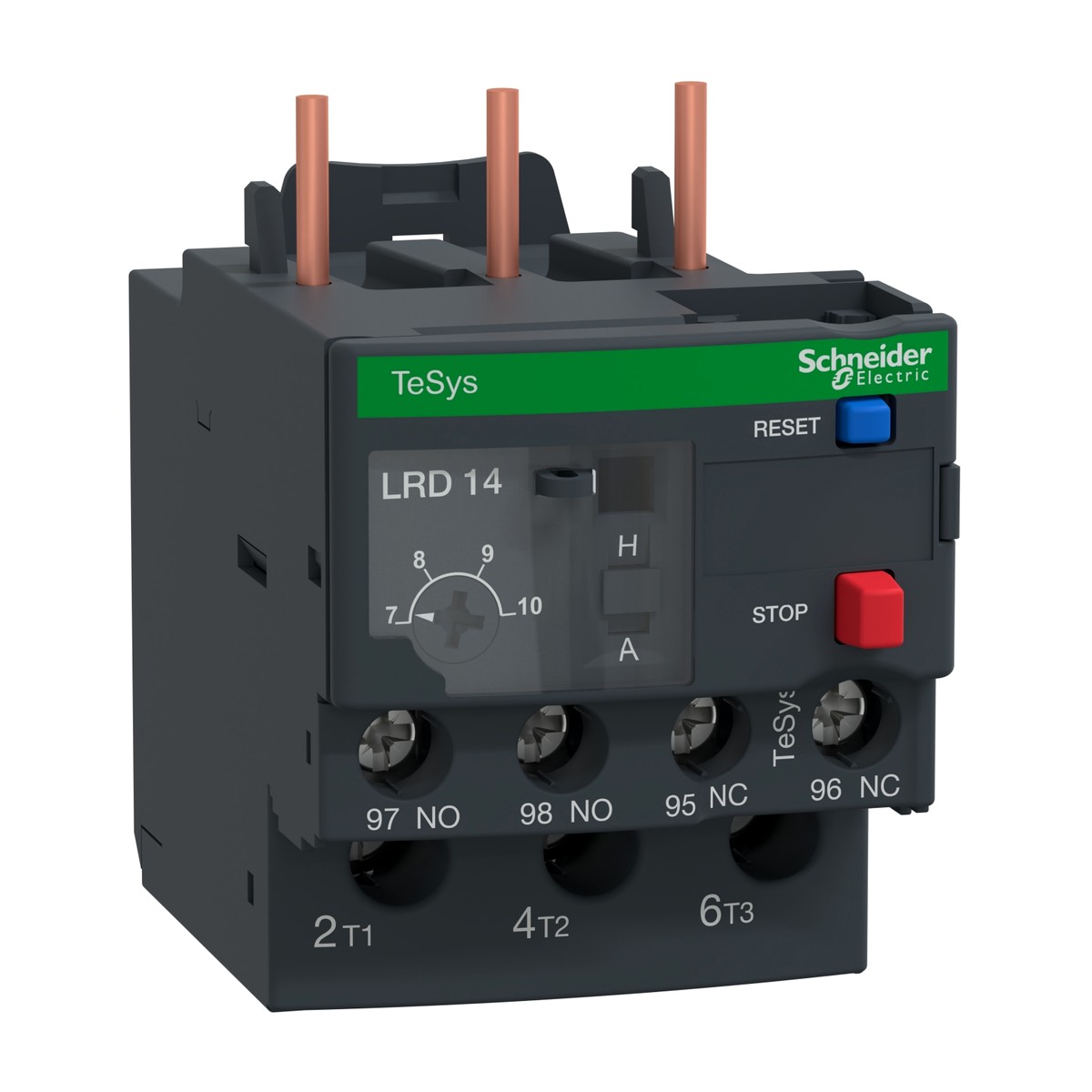

Schneider Electric LRD14 TeSys Deca thermal overload relay 7-10A 1NO+1NC Class 10A screw clamp. The Schneider Electric LRD14 thermal overload relay is an essential component for robust motor protection across diverse industrial applications in Egypt and the Gulf region. As part of the reliable TeSys Deca range, this differential thermal overload relay safeguards motors against sustained overload and prevents damage from phase failure. It features a thermal protection adjustment range of 7 to 10 Amperes and is rated as Class 10A conforming to IEC 60947-4-1, ensuring precise and timely tripping. The LRD14 is highly versatile, compatible with both AC and DC network types, and operates efficiently across a 0-400 Hz frequency range. Designed for seamless integration, the Schneider Electric LRD14 offers convenient screw clamp terminals for secure wiring and can be mounted directly under TeSys D contactors such as LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, and LC1D38. Its auxiliary contact composition of 1 normally open (NO) and 1 normally closed (NC) contact provides flexible signaling capabilities. With a rated operational voltage of 690V AC and an IP20 degree of protection, it is built for demanding environments. This LRD14 relay is an ideal choice for critical motor protection in industries like cement production, oil and gas, water treatment plants, food and beverage processing, textiles, and building services.
Details
- Brand: Schneider Electric
- Part number: LRD14
- Series: TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- TeSys Deca LRD3322 Thermal Overload Relay
- TeSys Deca LRD3363 thermal overload relay 63-80A Class 10A
- Schneider Electric LRD35 — TeSys Deca Thermal Overload Relay 690VAC 30-38A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LC2D09B7 Reversing Contactor, 3P 9A AC-3, 24V AC Coil, Mechanical Interlock
- TeSys Deca LC2D09BD Reversing Contactor 9A AC-3 3P with 24V DC coil
- TeSys Deca LC2D09BL reversing contactor 9A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D09E7 reversing contactor 9 A AC-3 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC2D09FE7 Reversing Contactor 9A AC-3 3P with 115V AC 50/60Hz coil
- TeSys Deca LC2D09M7 reversing contactor 9A AC-3 3P with 220V AC coil
- TeSys Deca LC2D09P7 Reversing Contactor, 9A AC-3, 3P, 230V AC Coil
- TeSys Deca LC2D09Q7 Reversing Contactor 9A AC-3 3P 380V AC 50/60Hz coil
- TeSys Deca LC2D09U7 Reversing Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
Specifications
- Depth
- 70 Mm
- Width
- 45 Mm
- Height
- 66 Mm
- Net weight
- 0.124 Kg
- Network type
- AC, DC
- Mounting support
- Under contactor
- Device short name
- LRD
- Network frequency
- 0...400 Hz
- Tightening torque
- 1.7 N.m - on screw clamp terminals
- Product compatibility
- LC1D09, LC1D12, LC1D38, LC1D32, LC1D25, LC1D18
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LRD14
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ue] rated operational voltage
- 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
- Thermal protection adjustment range
- 7…10 A
- Ambient air temperature for operation
- -20…60 °C without derating conforming to IEC 60947-4-1
