LRD12

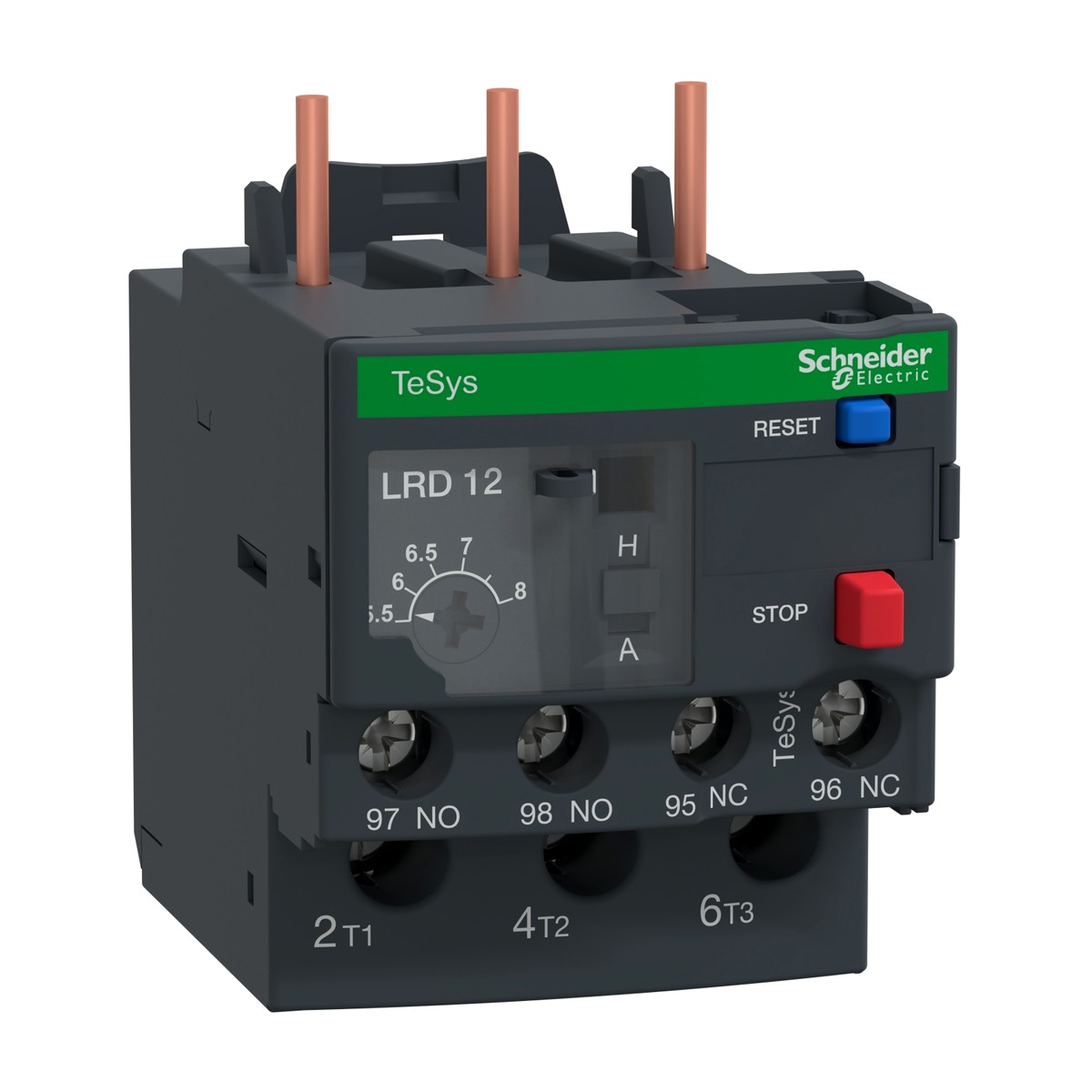

Schneider Electric LRD12 Thermal overload relay, 5.5-8A, 1NO+1NC, Class 10A, screw clamp. The Schneider Electric LRD12 is a robust TeSys Deca thermal overload relay designed for reliable motor protection in demanding industrial environments across Egypt and the Gulf. This essential component safeguards motors against sustained overloads and detects phase failure, ensuring operational continuity and preventing costly damage. Featuring a thermal protection adjustment range of 5.5-8A and a Class 10A tripping characteristic conforming to IEC 60947-4-1, the LRD12 ensures precise and responsive protection. It includes 1 NO + 1 NC auxiliary contacts for seamless integration into control circuits and utilizes secure screw clamp terminals for both power and control connections, accommodating cables up to 10 mm². With a rated operational voltage of 690V AC and an IP20 degree of protection, it is suitable for diverse applications. Typical uses span critical sectors such as cement production, oil and gas facilities, water treatment plants, food and beverage processing, textile manufacturing, and general building services. For detailed specifications and to discuss your project requirements, request a quote for the Schneider Electric LRD12 today.
Details
- Brand: Schneider Electric
- Part number: LRD12
- Series: TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- Schneider Electric LRD14 — TeSys Deca thermal overload relay 7-10A 1NO+1NC Class 10A screw clamp
- TeSys Deca LRD3322 Thermal Overload Relay
- TeSys Deca LRD3363 thermal overload relay 63-80A Class 10A
- Schneider Electric LRD35 — TeSys Deca Thermal Overload Relay 690VAC 30-38A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LC2D09B7 Reversing Contactor, 3P 9A AC-3, 24V AC Coil, Mechanical Interlock
- TeSys Deca LC2D09BD Reversing Contactor 9A AC-3 3P with 24V DC coil
- TeSys Deca LC2D09BL reversing contactor 9A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D09E7 reversing contactor 9 A AC-3 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC2D09FE7 Reversing Contactor 9A AC-3 3P with 115V AC 50/60Hz coil
- TeSys Deca LC2D09M7 reversing contactor 9A AC-3 3P with 220V AC coil
- TeSys Deca LC2D09P7 Reversing Contactor, 9A AC-3, 3P, 230V AC Coil
- TeSys Deca LC2D09Q7 Reversing Contactor 9A AC-3 3P 380V AC 50/60Hz coil
Specifications
- Depth
- 70 Mm
- Width
- 45 Mm
- Height
- 66 Mm
- Net weight
- 0.124 Kg
- Control type
- Red push-button: stop, Blue push-button: reset
- Mounting support
- Under contactor
- Device short name
- LRD
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LRD12
- Power circuit connections
- screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end
- Auxiliary contact composition
- 1 NO + 1 NC
- Thermal protection adjustment range
- 5.5…8 A
- Ambient air temperature for operation
- -20…60 °C without derating conforming to IEC 60947-4-1
- Rated insulation voltage (Power circuit)
- 690 V conforming to IEC 60947-4-1
- Rated operational voltage (Power circuit)
- 690 V AC 0...400 Hz conforming to IEC 60947-4-1
