LRD06

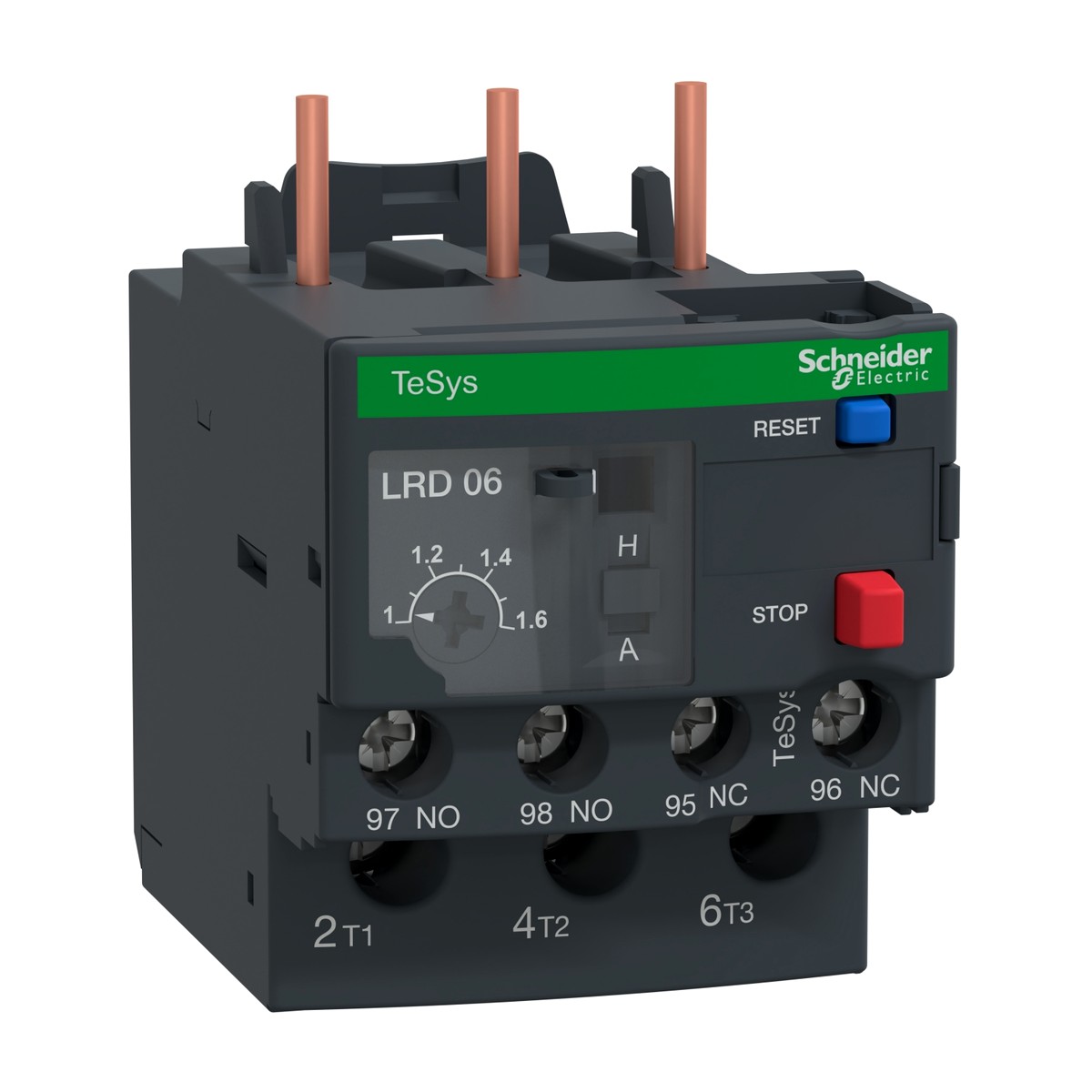

Schneider Electric LRD06 TeSys Deca Thermal Overload Relay 1-1.6A Class 10A. Ensure reliable motor protection with the Schneider Electric LRD06 thermal overload relay, a vital component from the robust TeSys Deca range. Engineered to safeguard motors against sustained overloads, this differential thermal overload relay offers a precise thermal protection adjustment range of 1 to 1.6 Amperes, making it ideal for various low-current motor applications. It features a Class 10A tripping characteristic, conforming to IEC 60947-4-1, ensuring quick and effective response to abnormal conditions. The LRD06 includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for versatile signalling. Rated for operational voltage up to 690V AC and suitable for both AC and DC networks, it integrates seamlessly with compatible TeSys contactors like LC1D09 through LC1D38. With an IP20 degree of protection and operational stability from -20 to 60 °C, this relay is built for demanding industrial environments in Egypt and the Gulf, including water treatment, oil and gas, cement production, and building services. Its screw clamp terminals ensure secure connections, and integrated stop/reset push-buttons offer easy local control. The Schneider Electric LRD06 delivers dependable performance for operational continuity.
Details
- Brand: Schneider Electric
- Part number: LRD06
- Series: TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- Schneider Electric LRD08 — TeSys Deca Thermal Overload Relay 2.5-4A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LRD10 thermal overload relay, 690VAC, 3P, 4-6A, 1NO+1NC, Class 10A
- Schneider Electric LRD12 — Thermal overload relay, 5.5-8A, 1NO+1NC, Class 10A, screw clamp
- Schneider Electric LRD14 — TeSys Deca thermal overload relay 7-10A 1NO+1NC Class 10A screw clamp
- TeSys Deca LRD3322 Thermal Overload Relay
- TeSys Deca LRD3363 thermal overload relay 63-80A Class 10A
- Schneider Electric LRD35 — TeSys Deca Thermal Overload Relay 690VAC 30-38A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LC2D09B7 Reversing Contactor, 3P 9A AC-3, 24V AC Coil, Mechanical Interlock
- TeSys Deca LC2D09BD Reversing Contactor 9A AC-3 3P with 24V DC coil
- TeSys Deca LC2D09BL reversing contactor 9A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D09E7 reversing contactor 9 A AC-3 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC2D09FE7 Reversing Contactor 9A AC-3 3P with 115V AC 50/60Hz coil
Specifications
- Depth
- 70 Mm
- Width
- 45 Mm
- Height
- 66 Mm
- Standards
- EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1
- Net weight
- 0.124 Kg
- Control type
- Red push-button: stop, Blue push-button: reset
- Network type
- DC, AC
- Mounting support
- Under contactor, Plate, with specific accessories, Rail, with specific accessories
- Tightening torque
- Power circuit: 1.7 N.m - on screw clamp terminals, Control circuit: 1.7 N.m - on screw clamp terminals
- Product compatibility
- LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- Connections - terminals
- Screw clamp
- IP degree of protection
- IP20 conforming to IEC 60599
- Manufacturer part number
- LRD06
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1
- [Ue] rated operational voltage
- 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
- Thermal protection adjustment range
- 1…1.6 A
- Ambient air temperature for operation
- -20…60 °C without derating conforming to IEC 60947-4-1
