LRD08

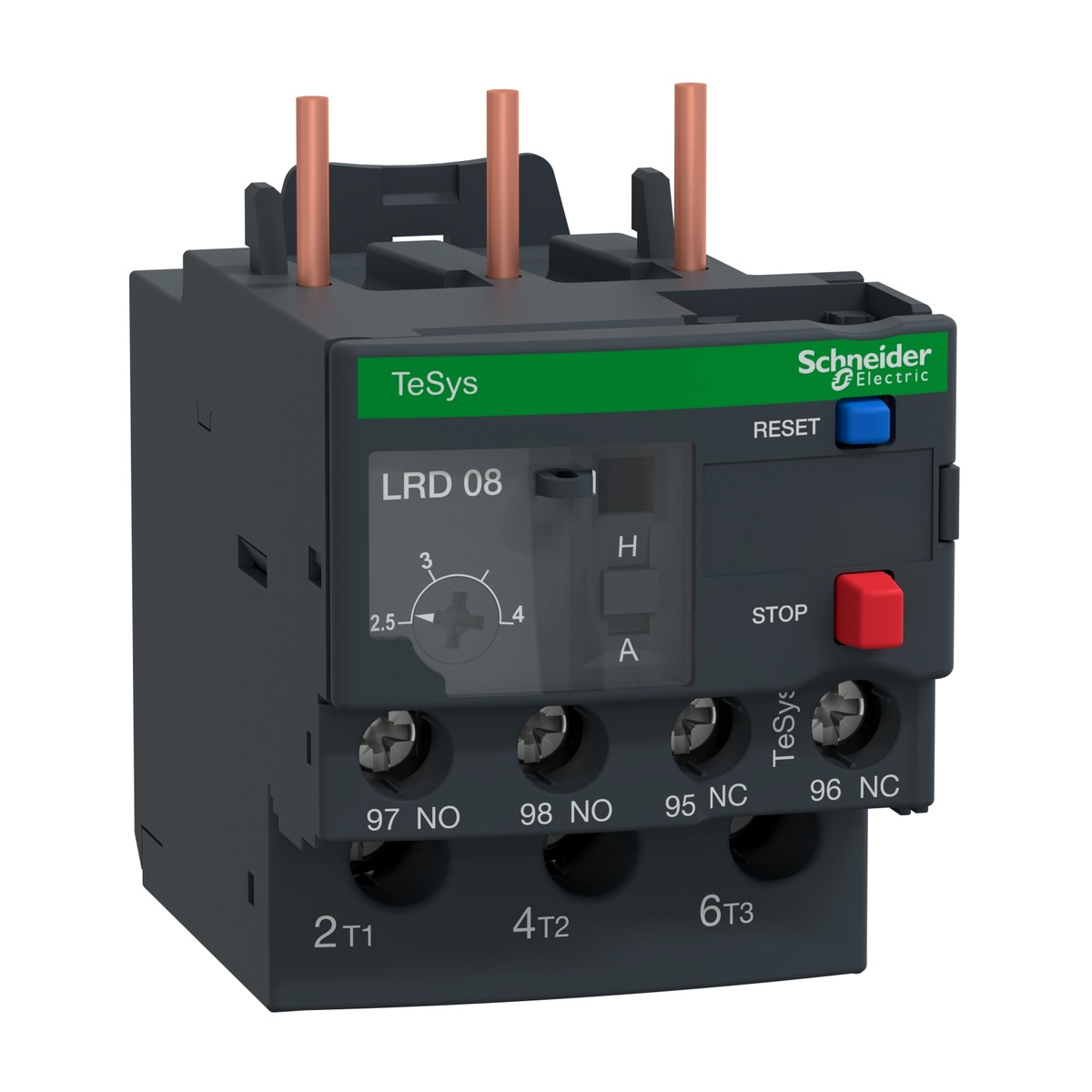

Schneider Electric LRD08 TeSys Deca Thermal Overload Relay 2.5-4A 1NO+1NC Class 10A Screw Clamp. The Schneider Electric LRD08 Thermal Overload Relay, part of the esteemed TeSys Deca range, delivers essential motor protection against sustained overloads and phase failures. This robust differential thermal overload relay offers a thermal protection adjustment range of 2.5 to 4 Amperes, making it perfectly suited for a wide array of smaller motor applications. With a Class 10A tripping characteristic, the LRD08 ensures rapid and effective response to safeguard your industrial equipment. It is compatible with both AC and DC network types, capable of handling power circuits up to 690V AC, and features a convenient 1 NO + 1 NC auxiliary contact composition for signalling. Its reliable screw clamp terminals facilitate straightforward and secure wiring. The Schneider Electric LRD08 is an optimal choice for the demanding operational environments found across Egypt and the Gulf, including sectors like cement production, oil and gas facilities, water treatment plants, food and beverage processing, and critical building services. Featuring IP20 protection and an operating temperature range of -20 to 60 °C, it guarantees consistent performance. For dependable motor protection, request a quote for the Schneider Electric LRD08 today.
Details
- Brand: Schneider Electric
- Part number: LRD08
- Series: TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- TeSys Deca LRD10 thermal overload relay, 690VAC, 3P, 4-6A, 1NO+1NC, Class 10A
- Schneider Electric LRD12 — Thermal overload relay, 5.5-8A, 1NO+1NC, Class 10A, screw clamp
- Schneider Electric LRD14 — TeSys Deca thermal overload relay 7-10A 1NO+1NC Class 10A screw clamp
- TeSys Deca LRD3322 Thermal Overload Relay
- TeSys Deca LRD3363 thermal overload relay 63-80A Class 10A
- Schneider Electric LRD35 — TeSys Deca Thermal Overload Relay 690VAC 30-38A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LC2D09B7 Reversing Contactor, 3P 9A AC-3, 24V AC Coil, Mechanical Interlock
- TeSys Deca LC2D09BD Reversing Contactor 9A AC-3 3P with 24V DC coil
- TeSys Deca LC2D09BL reversing contactor 9A AC-3 3P 24V DC low consumption coil
- TeSys Deca LC2D09E7 reversing contactor 9 A AC-3 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC2D09FE7 Reversing Contactor 9A AC-3 3P with 115V AC 50/60Hz coil
- TeSys Deca LC2D09M7 reversing contactor 9A AC-3 3P with 220V AC coil
Specifications
- Depth
- 70 Mm
- Width
- 45 Mm
- Height
- 66 Mm
- Net weight
- 0.124 Kg
- Connections
- Screw clamp
- Network type
- AC, DC
- Mounting support
- Under contactor, Plate, Rail
- Network frequency
- 0...400 Hz
- Product compatibility
- LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
- Thermal overload class
- Class 10A
- IP degree of protection
- IP20
- Manufacturer part number
- LRD08
- Auxiliary contact composition
- 1 NO + 1 NC
- Rated insulation voltage [Ui]
- 690 V
- Rated operational voltage [Ue]
- 690 V AC
- Thermal protection adjustment range
- 2.5…4 A
- Ambient air temperature for operation
- -20…60 °C
