LRD02

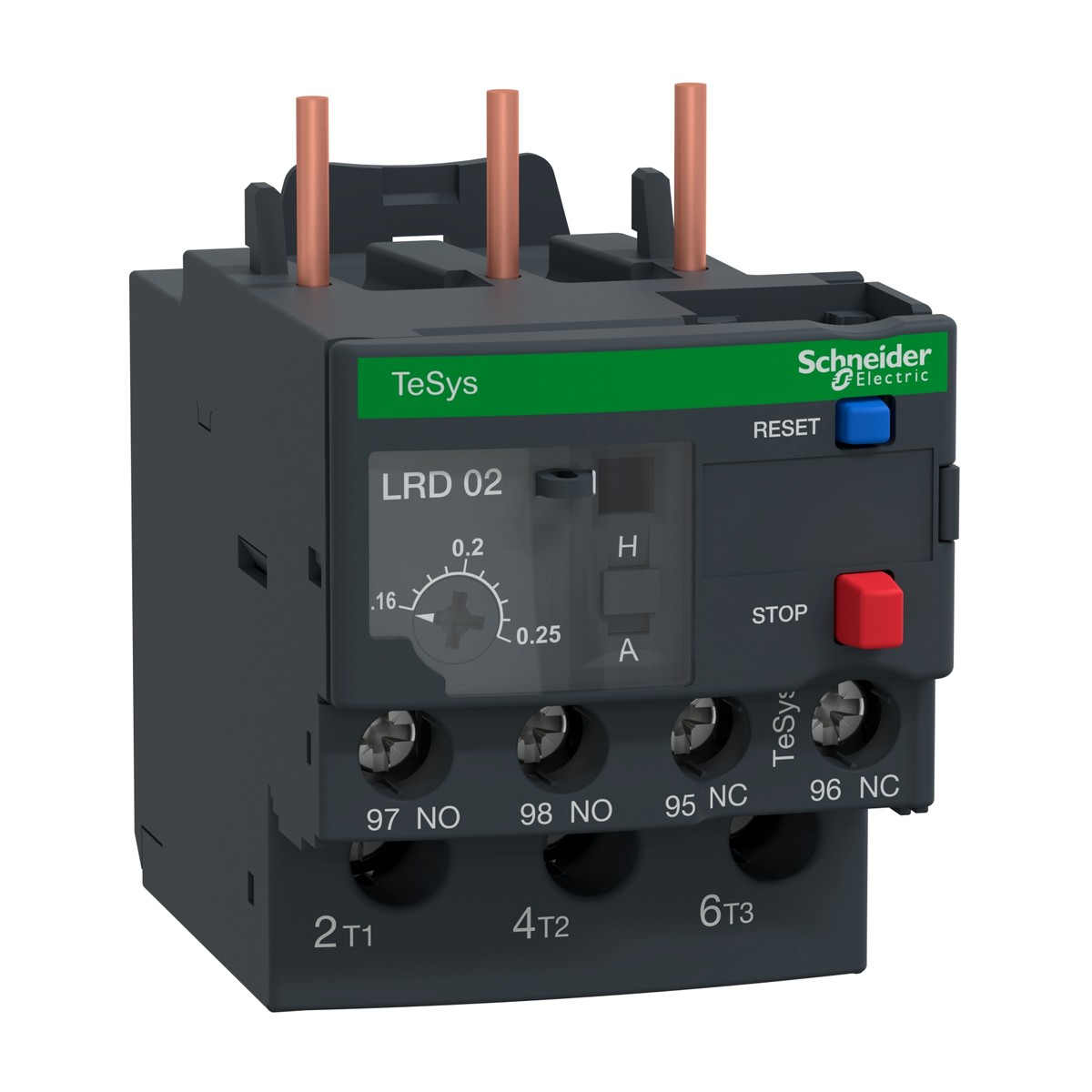

Schneider Electric LRD02 TeSys Deca Thermal Overload Relay 0.16-0.25A 1NO+1NC Class 10A. Schneider Electric's LRD02 TeSys Deca thermal overload relay provides essential motor protection against sustained overloads and phase failures, a critical requirement across industries in Egypt and the Gulf. This differential thermal overload relay offers a precise thermal protection adjustment range of 0.16 to 0.25 A, ideal for safeguarding smaller motors. It features a Class 10A tripping characteristic and operates with both AC and DC networks, rated up to 690 V AC operational voltage. The LRD02 integrates seamlessly with Schneider Electric TeSys contactors, including LC1D09 through LC1D38. Equipped with 1 NO + 1 NC auxiliary contacts, an IP20 degree of protection, and operational stability from -20 to 60 °C, it suits demanding environments such as water treatment, oil and gas, cement production, and food and beverage processing. Its flexible mounting options (plate, rail, or under contactor) and clear push-button controls (red for stop, blue for reset) ensure ease of installation and operation.
Details
- Brand: Schneider Electric
- Part number: LRD02
- Series: TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- TeSys Deca LRD04 thermal overload relay 0.4-0.63A 1NO+1NC Class 10A screw clamp
- Schneider Electric LRD05 — TeSys Deca Thermal Overload Relay 0.63-1A 1NO+1NC Class 10A
- TeSys Deca LRD06 Thermal Overload Relay 1-1.6A Class 10A
- Schneider Electric LRD08 — TeSys Deca Thermal Overload Relay 2.5-4A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LRD10 thermal overload relay, 690VAC, 3P, 4-6A, 1NO+1NC, Class 10A
- Schneider Electric LRD12 — Thermal overload relay, 5.5-8A, 1NO+1NC, Class 10A, screw clamp
- Schneider Electric LRD14 — TeSys Deca thermal overload relay 7-10A 1NO+1NC Class 10A screw clamp
- TeSys Deca LRD3322 Thermal Overload Relay
- TeSys Deca LRD3363 thermal overload relay 63-80A Class 10A
- Schneider Electric LRD35 — TeSys Deca Thermal Overload Relay 690VAC 30-38A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LC2D09B7 Reversing Contactor, 3P 9A AC-3, 24V AC Coil, Mechanical Interlock
- TeSys Deca LC2D09BD Reversing Contactor 9A AC-3 3P with 24V DC coil
Specifications
- Standards
- EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
- Net weight
- 0.124 Kg
- Control type
- Red push-button: stop, Blue push-button: reset
- Network type
- AC, DC
- Product type
- Differential thermal overload relay
- Mounting support
- Plate, Rail, Under contactor (with specific accessories)
- Relay application
- Motor protection
- Product compatibility
- LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
- Dimensions (H x W x D)
- 66 Mm x 45 Mm x 70 Mm
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LRD02
- Auxiliary contact composition
- 1 NO + 1 NC
- Thermal protection adjustment range
- 0.16…0.25 A
- Ambient air temperature for operation
- -20…60 °C without derating conforming to IEC 60947-4-1
- [Ui] rated insulation voltage (Power circuit)
- 690 V conforming to IEC 60947-4-1
- [Ue] rated operational voltage (Power circuit)
- 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
