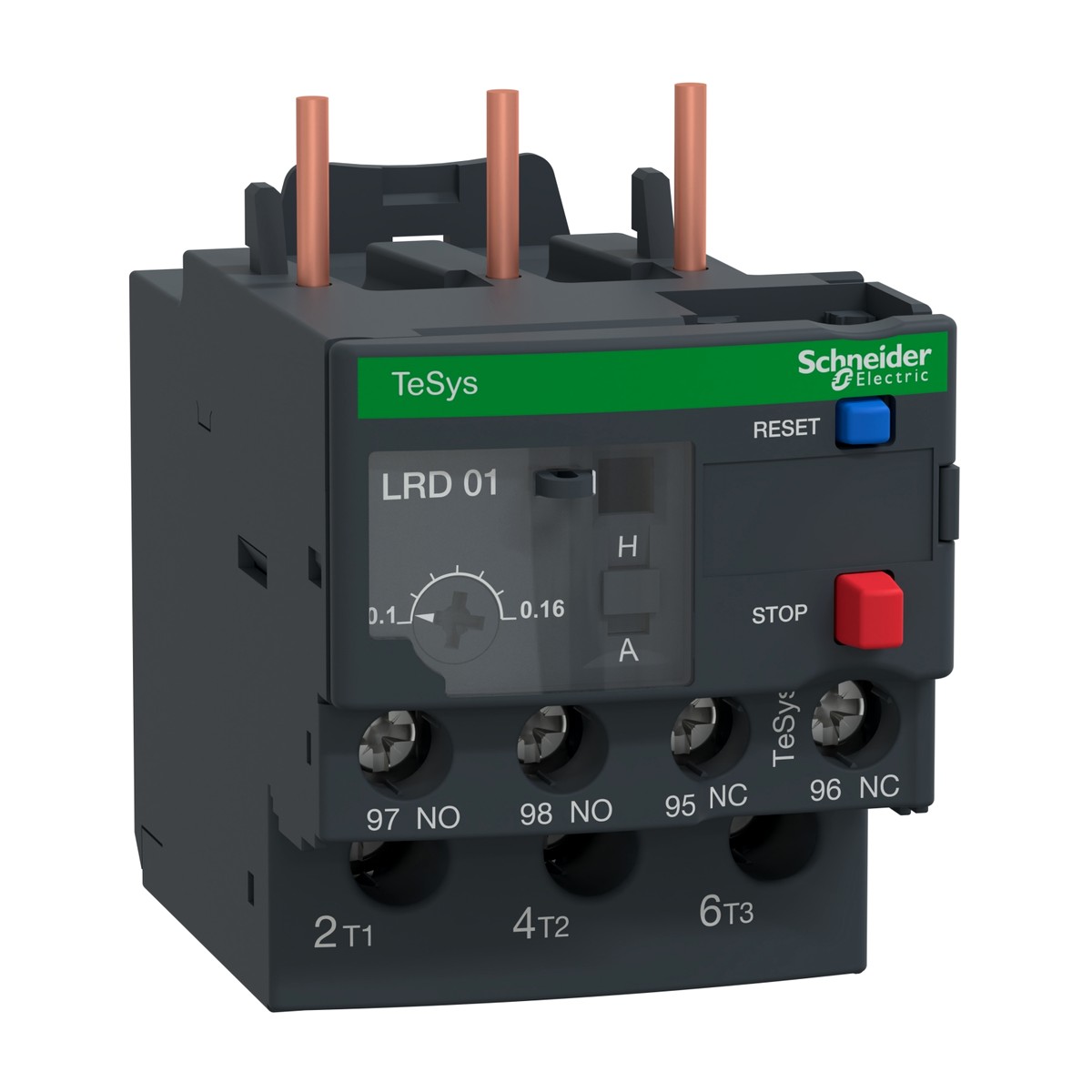

Schneider Electric LRD01 Thermal Overload Relay, 690V AC, 0.1-0.16A, 1NO+1NC, Class 10A, Screw Clamp. The Schneider Electric LRD01 thermal overload relay is a vital component for robust motor protection, ensuring sustained operation and preventing damage from sustained overload conditions. As a differential thermal overload relay, it offers precise thermal protection with an adjustment range of 0.1 to 0.16 A, conforming to Class 10A standards. It features 1 NO + 1 NC auxiliary contacts for seamless integration into control circuits and supports a rated operational voltage of up to 690 V AC for power circuits. The LRD01 is compatible with Schneider Electric TeSys Deca LC1D contactors, including models like LC1D09, LC1D12, LC1D18, LC1D25, and LC1D32, making it an ideal spare part for existing installations. Its versatile screw clamp terminals accommodate various cable sizes for both power and control circuits, and an IP20 rating ensures protection in typical industrial environments. This relay is perfectly suited for safeguarding critical motors in diverse applications across Egypt and the Gulf, such as water treatment plants, oil and gas facilities, cement manufacturing, food and beverage processing, and general building services. For reliable motor protection and to inquire about the Schneider Electric LRD01, request a quote today.
Details
- Brand: Schneider Electric
- Part number: LRD01
- Series: TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- Schneider Electric LRD02 — TeSys Deca Thermal Overload Relay 0.16-0.25A 1NO+1NC Class 10A
- TeSys Deca LRD04 thermal overload relay 0.4-0.63A 1NO+1NC Class 10A screw clamp
- Schneider Electric LRD05 — TeSys Deca Thermal Overload Relay 0.63-1A 1NO+1NC Class 10A
- TeSys Deca LRD06 Thermal Overload Relay 1-1.6A Class 10A
- Schneider Electric LRD08 — TeSys Deca Thermal Overload Relay 2.5-4A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LRD10 thermal overload relay, 690VAC, 3P, 4-6A, 1NO+1NC, Class 10A
- Schneider Electric LRD12 — Thermal overload relay, 5.5-8A, 1NO+1NC, Class 10A, screw clamp
- Schneider Electric LRD14 — TeSys Deca thermal overload relay 7-10A 1NO+1NC Class 10A screw clamp
- TeSys Deca LRD3322 Thermal Overload Relay
- TeSys Deca LRD3363 thermal overload relay 63-80A Class 10A
- Schneider Electric LRD35 — TeSys Deca Thermal Overload Relay 690VAC 30-38A 1NO+1NC Class 10A Screw Clamp
- TeSys Deca LC2D09B7 Reversing Contactor, 3P 9A AC-3, 24V AC Coil, Mechanical Interlock
Specifications
- Network type
- AC, DC
- Mounting support
- Under contactor, Rail (with specific accessories), Plate (with specific accessories)
- Network frequency
- 0...400 Hz
- Product compatibility
- LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- Connections - terminals
- Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible; Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LRD01
- Product or component type
- Differential thermal overload relay
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1
- [Ue] rated operational voltage
- 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
- Thermal protection adjustment range
- 0.1…0.16 A
- Ambient air temperature for operation
- -20…60 °C without derating conforming to IEC 60947-4-1
