LC1F115

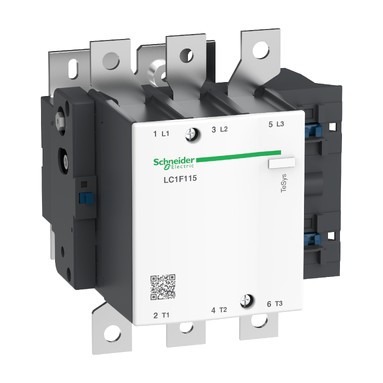

Schneider Electric LC1F115 TeSys F contactor body 3P 3NO 115 A AC-3 without coil. The Schneider Electric LC1F115 is a TeSys F three-pole contactor body with three normally open power poles, rated 115 A in AC-3 at up to 440 V and 200 A in AC-1, supplied without a coil so the LX9, LX4 or LXE control coil is selected separately. LC1F115 switches motors up to 55 kW at 380-400 V and 59 kW at 415 V in AC-3, and 80 kW at 660-690 V, with a rated operational voltage to 690 V AC, 8 kV impulse withstand and 1000 V insulation. Rated making capacity is 1150 A and breaking capacity 920 A to IEC 60947-4-1, with 1100 A Icw for 10 s and 10 million mechanical cycles. Power connection is by lugs-ring terminals up to 95 mm2 or busbar, torqued to 10 N.m; the plate-mounted body measures 163.5 x 162 x 171 mm and weighs 3.83 kg. Schneider lists LC1F115 as discontinued from May 2024, so it is now largely a spare-parts item for existing Egyptian and GCC pump, crusher and compressor panels.
Details
- Brand: Schneider Electric
- Part number: LC1F115
- Series: TeSys F
- Category: Contactor
Related Schneider Electric parts
- TeSys F LC1F185 contactor body 3P 3NO 185 A AC-3 without coil
- TeSys Deca LC1D09B7 contactor 9 A AC-3 3P with 24 V AC 50/60 Hz coil
- TeSys Deca LC1D09BD contactor 9 A AC-3 3P with 24 V DC coil
- Schneider Electric TeSys Deca LC1D09BL contactor 9 A AC-3/3e 3P with 24 V DC low consumption coil
- TeSys Deca LC1D09E7 Contactor, 9A AC-3, 3P, 48V AC 50/60Hz Coil
- TeSys Deca LC1D09ED contactor 9A AC-3 3P with 48V DC coil
- TeSys Deca LC1D09EL contactor 9A AC-3 3P with 48V DC low consumption coil
- Schneider Electric LC1D09F7 — TeSys D contactor 9 A AC-3 3P with 110 V AC coil
- TeSys Deca LC1D09FD contactor 9 A AC-3/3e 3P with 110 V DC coil
- TeSys D contactor LC1D09FE7 9 A AC-3 3P with 115 V AC coil
- TeSys Deca LC1D09MD contactor 9A AC-3/3e 3P with 220V DC coil
- TeSys Deca LC1D09N7 contactor 9A AC-3/3e 3P with 415V AC 50/60Hz coil
Specifications
- Range
- TeSys
- Standards
- IEC 60947-1, IEC 60947-4-1, EN 60947-1, EN 60947-4-1, JIS C8201-4-1
- Product name
- TeSys F
- Motor power kW
- 55 kW at 380...400 V AC 50/60 Hz (AC-3); 59 kW at 415 V AC (AC-3); 75 kW at 500 V AC (AC-3); 80 kW at 660...690 V AC (AC-3); 18.5 kW at 400 V AC (AC-4)
- Product weight
- 3.83 kg
- Mounting support
- Plate
- Device short name
- LC1F
- Poles description
- 3P
- Tightening torque
- Power circuit: 10 N.m; control circuit: 1.2 N.m
- Utilisation category
- AC-1, AC-3, AC-4
- Mechanical durability
- 10 Mcycles
- Associated fuse rating
- 125 A aM at <= 440 V; 200 A gG at <= 440 V
- Dimensions (W x H x D)
- 163.5 mm x 162 mm x 171 mm
- Connections - terminals
- Power circuit: lugs-ring terminals 1 cable 95 mm2; busbar 20 x 3 mm; bolted connection
- IP degree of protection
- IP2X front face with shrouds
- Rated breaking capacity
- 920 A conforming to IEC 60947-4-1
- Manufacturer part number
- LC1F115
- Irms rated making capacity
- 1150 A conforming to IEC 60947-4-1
- [Uc] control circuit voltage
- 24...575 V AC 40...400 Hz with LX9 coil; 24...460 V DC with LX4 coil; 100...250 V AC with LXE coil
- [Ui] rated insulation voltage
- 1000 V conforming to IEC 60947-4-1
- Power pole contact composition
- 3 NO
- [Ie] rated operational current
- 115 A (at <55 degC) at <= 440 V AC-3; 200 A (at <40 degC) at <= 440 V AC-1
- [Ue] rated operational voltage
- <= 690 V AC 50/60 Hz; <= 460 V DC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Icw] rated short-time withstand current
- 1100 A at 40 degC - 10 s
- [Ith] conventional free air thermal current
- 200 A (at 40 degC)
