LC1D09EL

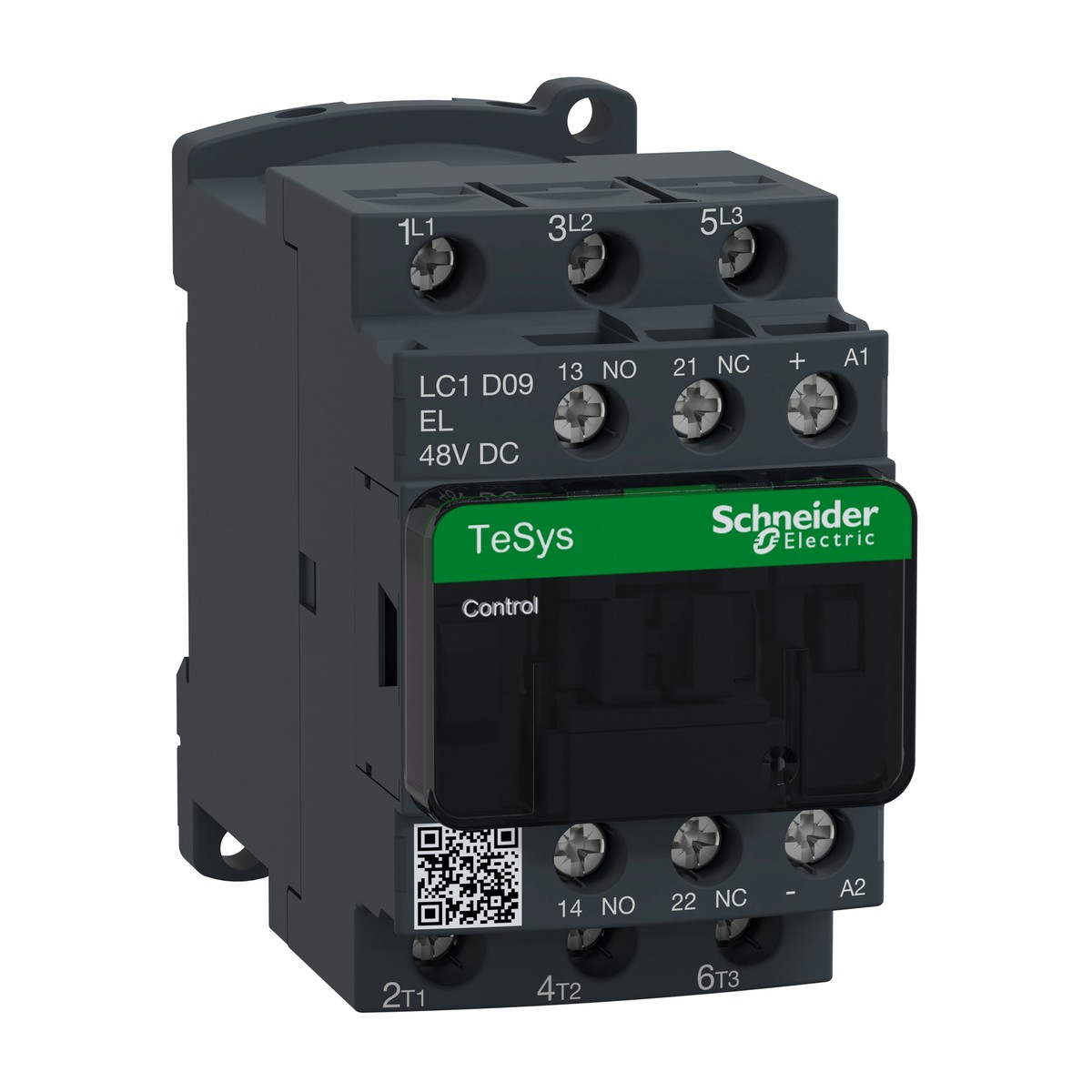

Schneider Electric LC1D09EL TeSys Deca contactor 9A AC-3 3P with 48V DC low consumption coil. The Schneider Electric LC1D09EL is a robust and reliable TeSys Deca series 3-pole IEC power contactor, engineered for efficient motor control and resistive load switching in a wide range of industrial applications. Featuring a 9A AC-3 rated operational current at <= 440V and a 48V DC low consumption coil, this contactor is designed for energy efficiency and reliable performance. It includes convenient screw clamp terminals for both power and control circuits, ensuring secure and straightforward installation. With a mechanical durability of 30 Mcycles and an electrical durability of 2 Mcycles (AC-3 at <= 440V), the LC1D09EL offers extended service life and consistent operation. Its IP20 front face protection makes it suitable for various panel environments. This versatile Schneider Electric contactor is an ideal choice for critical operations in diverse sectors across Egypt and the Gulf, including motor control in cement plants, oil and gas facilities, water treatment stations, food and beverage processing, textile manufacturing, and general building services. For seamless integration into your electrical systems, trust the proven quality of the LC1D09EL.
Details
- Brand: Schneider Electric
- Part number: LC1D09EL
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D09FD contactor 9 A AC-3/3e 3P with 110 V DC coil
- TeSys Deca LC1D09MD contactor 9A AC-3/3e 3P with 220V DC coil
- TeSys Deca LC1D09N7 contactor 9A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D09P7 Contactor, 3P, 9A AC-3, 230V AC Coil
- TeSys Deca LC1D09Q7 contactor 9 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D09U7 Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC1D09V7 Contactor, 3P(3NO), 9A AC-3/3e, 400V AC 50/60Hz coil, screw clamp
- TeSys Deca LC1D12B7 contactor 12A AC-3 3P (3NO) with 24V AC 50/60Hz coil
- TeSys Deca LC1D12BD contactor 12A AC-3 3P 24V DC coil
- TeSys Deca LC1D12BL contactor 12 A AC-3 3P with 24 V DC low consumption coil
- TeSys Deca LC1D12E7 contactor 12 A AC-3/3e 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC1D12ED contactor 12A AC-3 3P with 48V DC coil
Specifications
- Net weight
- 0.48 Kg
- Motor power kW
- 4 KW at 380...400 V AC 50/60 Hz (AC-3)
- Device short name
- LC1D
- Poles description
- 3P
- Dimensions (H/W/D)
- 77 mm / 45 mm / 95 mm
- Control circuit type
- DC low consumption
- Utilisation category
- AC-1, AC-4, AC-3, AC-3e
- Electrical durability
- 2 Mcycles 9 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- Screw clamp terminals (Power circuit, Control circuit)
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D09EL
- Pole contact composition
- 3 NO
- Product or component type
- Contactor
- [Uc] control circuit voltage
- 48 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1
- [Ie] rated operational current
- 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ith] conventional free air thermal current
- 25 A (at 60 °C) for power circuit
- Permissible ambient air temperature around the device
- -40…60 °C
