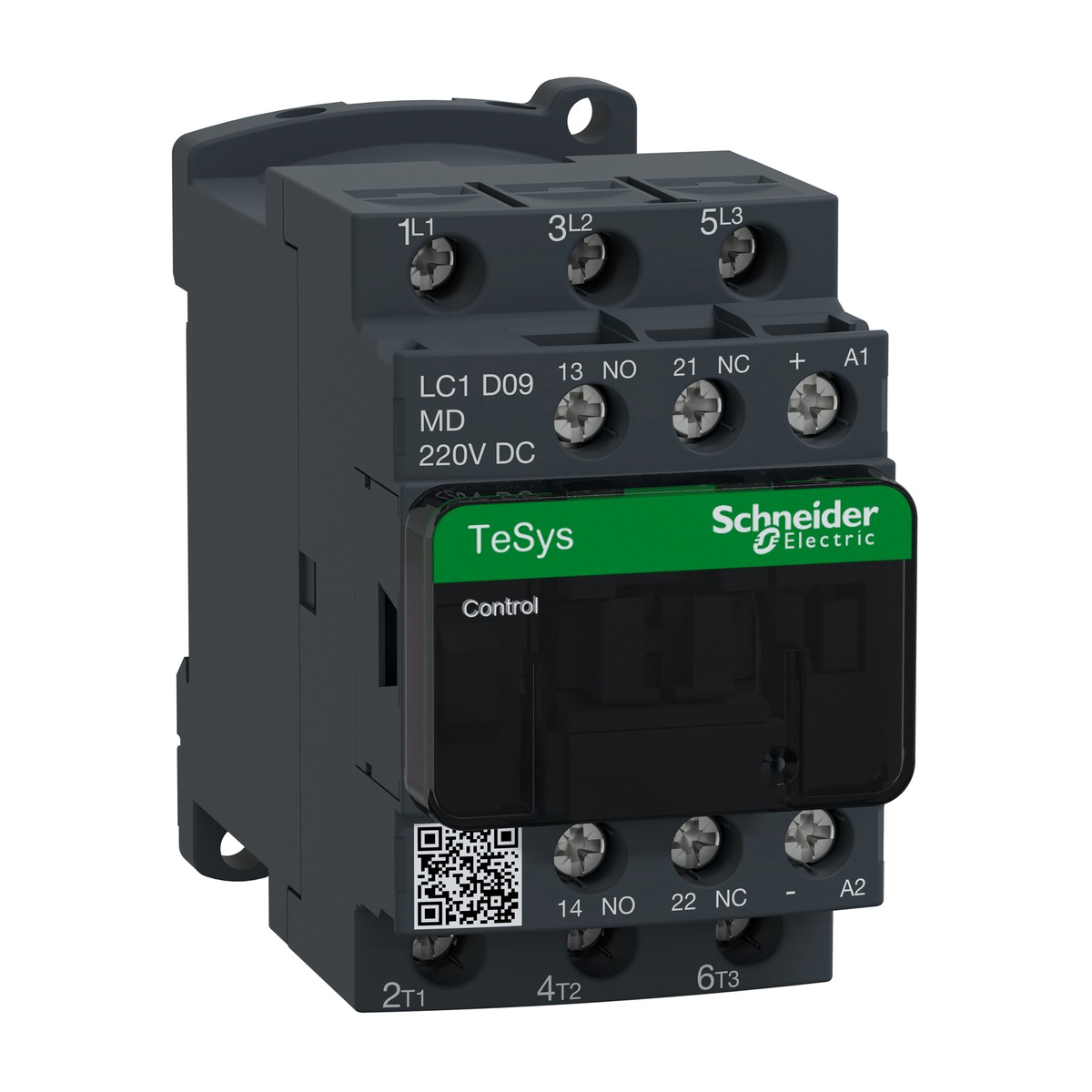

LC1D09MD
Schneider Electric LC1D09MD TeSys Deca contactor 9A AC-3/3e 3P with 220V DC coil. The Schneider Electric TeSys Deca LC1D09MD is a robust 3-pole IEC power contactor engineered for reliable motor control and resistive load switching within industrial panels. Part of the highly regarded TeSys Deca range, this contactor offers a rated operational current of 9A for AC-3/3e applications at up to 440V. It features a 220V DC control coil, ensuring precise operation and compatibility with DC control systems. The LC1D09MD is equipped with durable screw clamp terminals for secure wiring and includes 3 NO power contacts, plus an integrated 1 NO + 1 NC auxiliary contact for enhanced circuit monitoring. Capable of switching motors up to 4 kW at 380-400V AC (AC-3), this unit is ideal for diverse applications across Egypt and the Gulf, including motor starter panels in water treatment plants, HVAC systems in large buildings, food and beverage processing, and textile manufacturing. Its IP20 front face protection ensures suitability for panel mounting. For superior performance and longevity in your electrical infrastructure, choose the Schneider Electric LC1D09MD.
Details
- Brand: Schneider Electric
- Part number: LC1D09MD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D09N7 contactor 9A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D09P7 Contactor, 3P, 9A AC-3, 230V AC Coil
- TeSys Deca LC1D09Q7 contactor 9 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D09U7 Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC1D09V7 Contactor, 3P(3NO), 9A AC-3/3e, 400V AC 50/60Hz coil, screw clamp
- TeSys Deca LC1D12B7 contactor 12A AC-3 3P (3NO) with 24V AC 50/60Hz coil
- TeSys Deca LC1D12BD contactor 12A AC-3 3P 24V DC coil
- TeSys Deca LC1D12BL contactor 12 A AC-3 3P with 24 V DC low consumption coil
- TeSys Deca LC1D12E7 contactor 12 A AC-3/3e 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC1D12ED contactor 12A AC-3 3P with 48V DC coil
- TeSys Deca LC1D12EL Contactor 12A AC-3 3P 48V DC coil
- TeSys Deca LC1D12F7 Contactor 12A AC-3 3P with 110V AC Coil
Specifications
- Depth
- 95 Mm
- Width
- 45 Mm
- Height
- 77 Mm
- Net weight
- 0.48 Kg
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-1, AC-3, AC-3e, AC-4
- Contactor application
- Motor control, Resistive load
- Mechanical durability
- 30 Mcycles
- Motor power kW (AC-3)
- 4 KW at 380...400 V AC 50/60 Hz
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 front face
- Manufacturer part number
- LC1D09MD
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 220 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC; Power circuit: <= 300 V DC
- [Ith] conventional free air thermal current
- 25 A (at 60 °C) for power circuit
