LC1D12BL

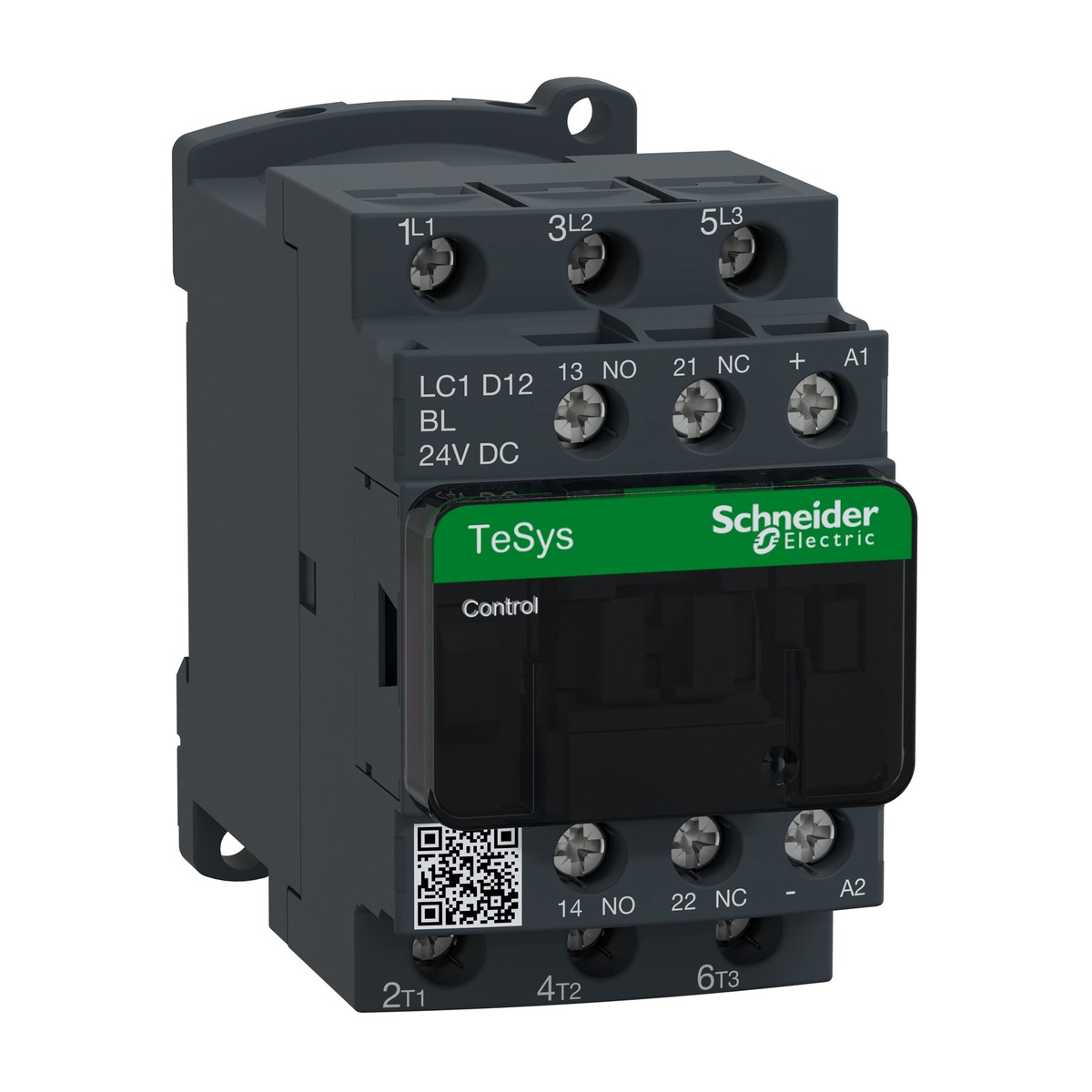

Schneider Electric LC1D12BL TeSys Deca contactor 12 A AC-3 3P with 24 V DC low consumption coil. The Schneider Electric LC1D12BL TeSys Deca contactor is a robust and reliable 3-pole IEC power contactor designed for efficient motor control and switching of resistive loads in industrial panels. Featuring a 12 A AC-3 rating and a highly efficient 24 V DC low consumption coil, this unit ensures precise and energy-efficient operation. It offers 3 normally open (3NO) main contacts and integrated 1 normally open + 1 normally closed (1NO+1NC) auxiliary contacts, providing flexibility for various control circuits. Connections are facilitated via secure screw clamp terminals, and the device boasts an IP20 front face protection rating, enhancing safety and durability. The LC1D12BL is a versatile solution for diverse applications across Egyptian and Gulf industries, including critical motor starters in oil and gas, pump control in water treatment, machinery in food and beverage, and HVAC systems in building services. Its proven performance and compact design make it ideal for integration into demanding environments.
Details
- Brand: Schneider Electric
- Part number: LC1D12BL
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D12E7 contactor 12 A AC-3/3e 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC1D12ED contactor 12A AC-3 3P with 48V DC coil
- TeSys Deca LC1D12EL Contactor 12A AC-3 3P 48V DC coil
- TeSys Deca LC1D12F7 Contactor 12A AC-3 3P with 110V AC Coil
- TeSys Deca LC1D12FD contactor 3P 12A AC-3/3e 110V DC coil
- TeSys Deca LC1D12FE7 contactor 12 A AC-3 3P with 115 V AC 50/60Hz coil
- TeSys Deca LC1D12MD contactor 12 A AC-3 3P with 220 V DC coil
- TeSys Deca LC1D12N7 contactor 12A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D12P7 contactor, 3P(3NO), 12A AC-3, 230V AC 50/60Hz coil
- TeSys Deca LC1D12Q7 contactor 12 A AC-3/3e 3P with 380V AC 50/60Hz coil
- TeSys Deca LC1D12U7 contactor 12A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC1D12V7 Contactor, 3P 12A AC-3, 400V AC Coil
Specifications
- Depth
- 95 Mm
- Width
- 45 Mm
- Height
- 77 Mm
- Net weight
- 0.485 Kg
- Connections
- Screw clamp terminals (power and control circuit)
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Electrical durability
- 2 Mcycles 12 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D12BL
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- Motor power kW (AC-3, 380/400 V AC)
- 5.5 KW
- [Ie] rated operational current (AC-1)
- 25 A (at <60 °C) at <= 440 V AC
- [Ie] rated operational current (AC-3)
- 12 A (at <60 °C) at <= 440 V AC
- Permissible ambient air temperature around the device
- -40…60 °C
