LC1D12EL

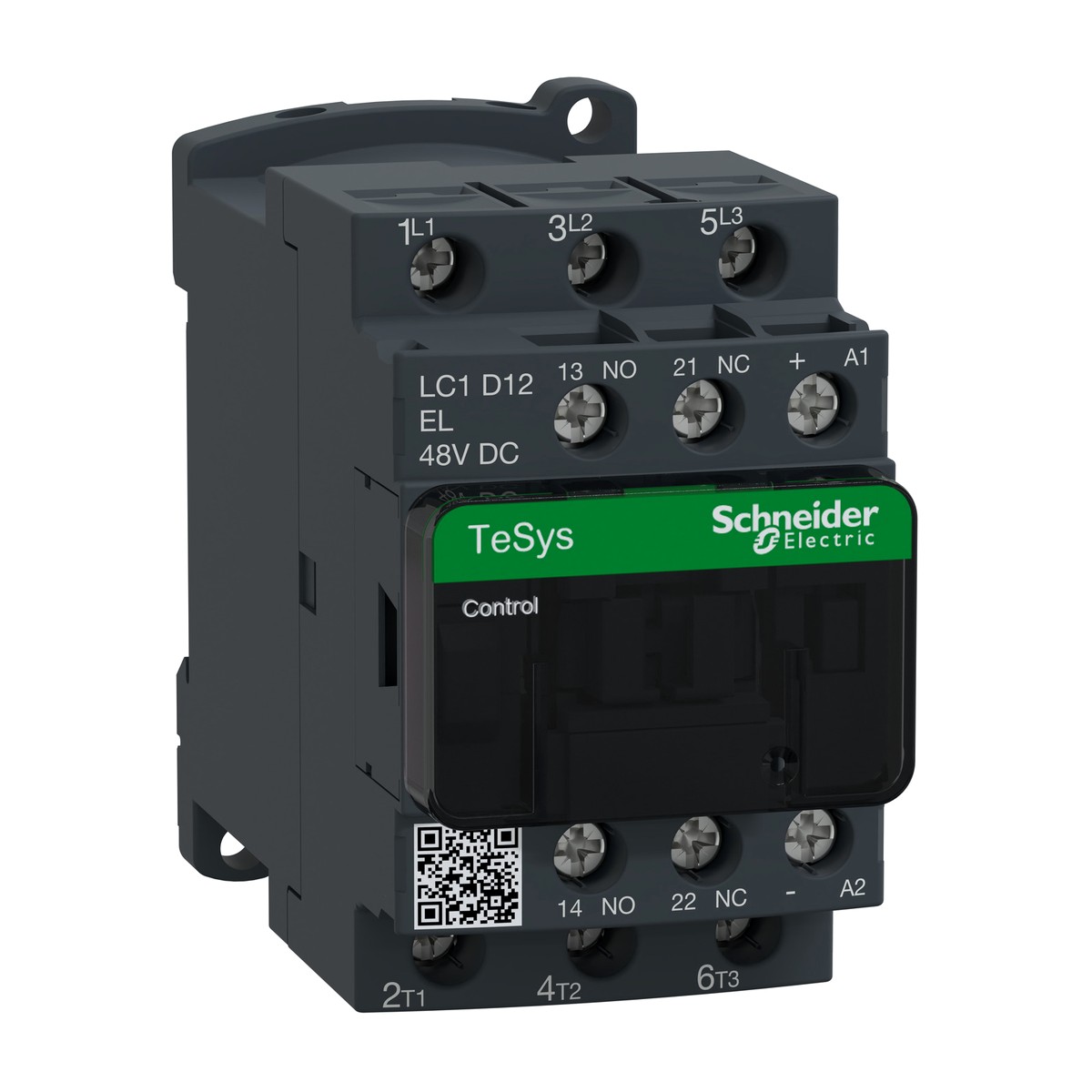

Schneider Electric LC1D12EL TeSys Deca Contactor 12A AC-3 3P 48V DC coil. The Schneider Electric LC1D12EL TeSys Deca Contactor is a robust and reliable three-pole IEC power contactor designed for efficient motor control and resistive load switching in industrial panels. Featuring a 3P (3NO) pole contact composition and a 48V DC low consumption coil, this contactor is engineered for precise operation. It handles an operational current of 12A for AC-3/AC-3e categories at up to 440V AC, and supports motor power up to 5.5 kW at 380-400V AC (AC-3). The integrated screw clamp terminals simplify wiring, ensuring secure and dependable connections. With an IP20 front face protection, the LC1D12EL is suitable for demanding environments, offering a wide operating temperature range of -40 to 60 °C. Its impressive mechanical durability of 30 Mcycles and electrical durability of 2 Mcycles (at 12A AC-3) guarantee a long service life and consistent performance. This contactor is an ideal choice for a diverse range of applications across Egypt and the Gulf, including critical systems in water treatment plants, oil and gas facilities, cement manufacturing, food and beverage processing, and building services. It facilitates reliable control of pumps, conveyors, HVAC systems, and other machinery.
Details
- Brand: Schneider Electric
- Part number: LC1D12EL
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D12F7 Contactor 12A AC-3 3P with 110V AC Coil
- TeSys Deca LC1D12FD contactor 3P 12A AC-3/3e 110V DC coil
- TeSys Deca LC1D12FE7 contactor 12 A AC-3 3P with 115 V AC 50/60Hz coil
- TeSys Deca LC1D12MD contactor 12 A AC-3 3P with 220 V DC coil
- TeSys Deca LC1D12N7 contactor 12A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D12P7 contactor, 3P(3NO), 12A AC-3, 230V AC 50/60Hz coil
- TeSys Deca LC1D12Q7 contactor 12 A AC-3/3e 3P with 380V AC 50/60Hz coil
- TeSys Deca LC1D12U7 contactor 12A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC1D12V7 Contactor, 3P 12A AC-3, 400V AC Coil
- TeSys Deca LC1D18B7 contactor 18A AC-3 3P with 24V AC coil
- TeSys Deca LC1D18BD Contactor, 3P, 18A AC-3, 24V DC Coil
- TeSys Deca LC1D18BL Contactor 3P 18A AC-3 24V DC Coil
Specifications
- Net weight
- 0.485 Kg
- Connections
- screw clamp terminals
- Motor power kW
- 5.5 KW at 380...400 V AC 50/60 Hz (AC-3)
- Protective cover
- With
- Poles description
- 3P
- Dimensions (HxWxD)
- 77x45x95 Mm
- Control circuit type
- DC low consumption
- Utilisation category
- AC-3/AC-3e
- Electrical durability
- 2 Mcycles 12 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- Associated fuse rating
- 25 A gG at <= 690 V coordination type 2 for power circuit
- Control circuit voltage
- 48 V DC
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Rated breaking capacity
- 250 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D12EL
- Pole contact composition
- 3 NO
- Rated insulation voltage
- 690 V conforming to IEC 60947-4-1 (Power circuit)
- Rated operational current
- 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Auxiliary contact composition
- 1 NO + 1 NC
- Rated impulse withstand voltage
- 6 KV conforming to IEC 60947
- Permissible ambient air temperature
- -40…60 °C
