LC1D18BL

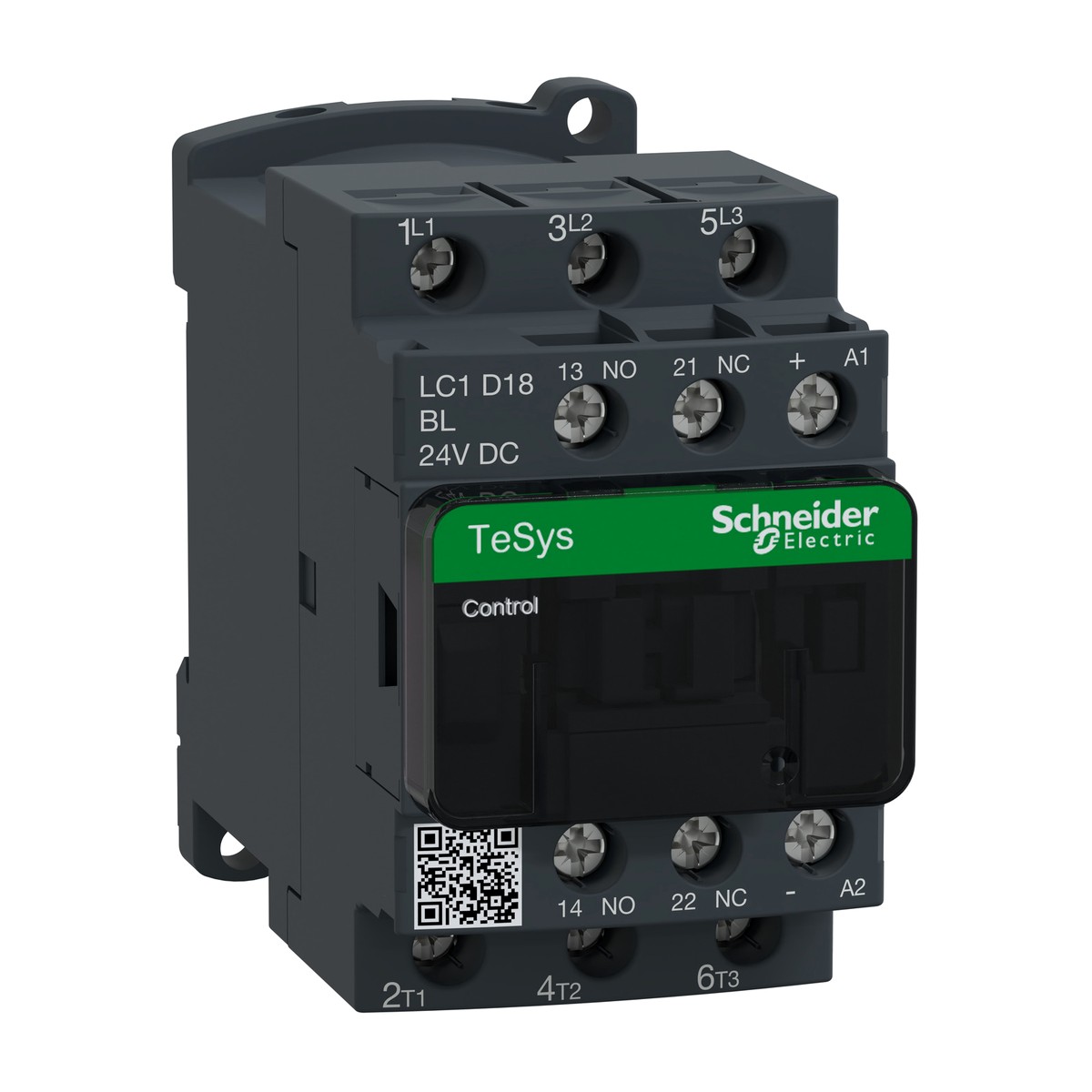

Schneider Electric LC1D18BL TeSys Deca Contactor 3P 18A AC-3 24V DC Coil. The Schneider Electric TeSys Deca LC1D18BL is a robust 3-pole IEC power contactor designed for reliable motor control and resistive load switching in diverse industrial and commercial panel applications. Part of the renowned TeSys Deca range, this contactor features 3 normally open (3NO) poles, making it suitable for a wide array of three-phase power control needs. It boasts a rated operational current of 18 Amperes under AC-3 utilisation category at up to 440V AC, and is capable of controlling motors up to 7.5 kW at 380/400V AC. The LC1D18BL is equipped with a highly efficient 24V DC low consumption coil, ensuring energy savings and enhanced operational efficiency, making it ideal for systems where precise DC control is preferred. Installation is straightforward with secure screw clamp terminals for both power and control circuits. With an IP20 front face protection, it's a dependable choice for demanding environments found across Egypt and the Gulf, including critical infrastructure in oil and gas, water treatment plants, food and beverage production, and building services. Its proven mechanical and electrical durability ensure long-term performance.
Details
- Brand: Schneider Electric
- Part number: LC1D18BL
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D18E7 contactor 18A AC-3 3P with 48V AC 50/60Hz coil
- TeSys Deca LC1D18ED contactor 18 A AC-3 3P with 48V DC coil
- Schneider Electric LC1D18EL — TeSys Deca LC1D Contactor 3P 18A AC-3/3e 48V DC Coil
- TeSys Deca LC1D18F7 contactor 3P(3NO) 18A AC-3 110V AC 50/60Hz coil
- TeSys Deca LC1D18FD Contactor, 3P 18A AC-3/3e, 110V DC Coil, Screw Clamp
- Schneider Electric LC1D18FE7 — TeSys Deca LC1D18 contactor 18 A AC-3 3P with 115 V AC coil
- TeSys Deca LC1D18MD Contactor 3P 18A AC-3/3e with 220V DC Coil
- TeSys Deca LC1D18N7 contactor 18A AC-3 3P with 415V AC coil
- Schneider Electric LC1D18P7 — TeSys Deca LC1D Contactor 3P AC-3/3e 18A with 230V AC 50/60Hz Coil
- TeSys Deca LC1D18Q7 contactor 18A AC-3 3P with 380V AC coil
- TeSys Deca LC1D18U7 Contactor, 3P, 18A AC-3/3e, 240V AC Coil
- TeSys Deca LC1D18V7 Contactor, 3P, 18A AC-3/3e, 400V AC coil, screw clamp
Specifications
- Depth
- 95 Mm
- Width
- 45 Mm
- Height
- 77 Mm
- Net weight
- 0.49 Kg
- Poles description
- 3P
- Control circuit type
- DC low consumption
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Contactor application
- Motor control, Resistive load
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D18BL
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- Electrical durability (AC-3, 440V)
- 1.65 Mcycles 18 A AC-3 at Ue <= 440 V
- Motor power kW (AC-3, 380/400 V AC)
- 7.5 KW at 380/400 V AC 50/60 Hz
- [Ui] rated insulation voltage (Power circuit)
- 690 V conforming to IEC 60947-4-1
- [Ue] rated operational voltage (Power circuit)
- <= 690 V AC 25...400 Hz
- Permissible ambient air temperature around the device
- -40…60 °C
- [Ie] rated operational current (AC-3 for power circuit)
- 18 A (at <60 °C) at <= 440 V AC
