LC1D18FD

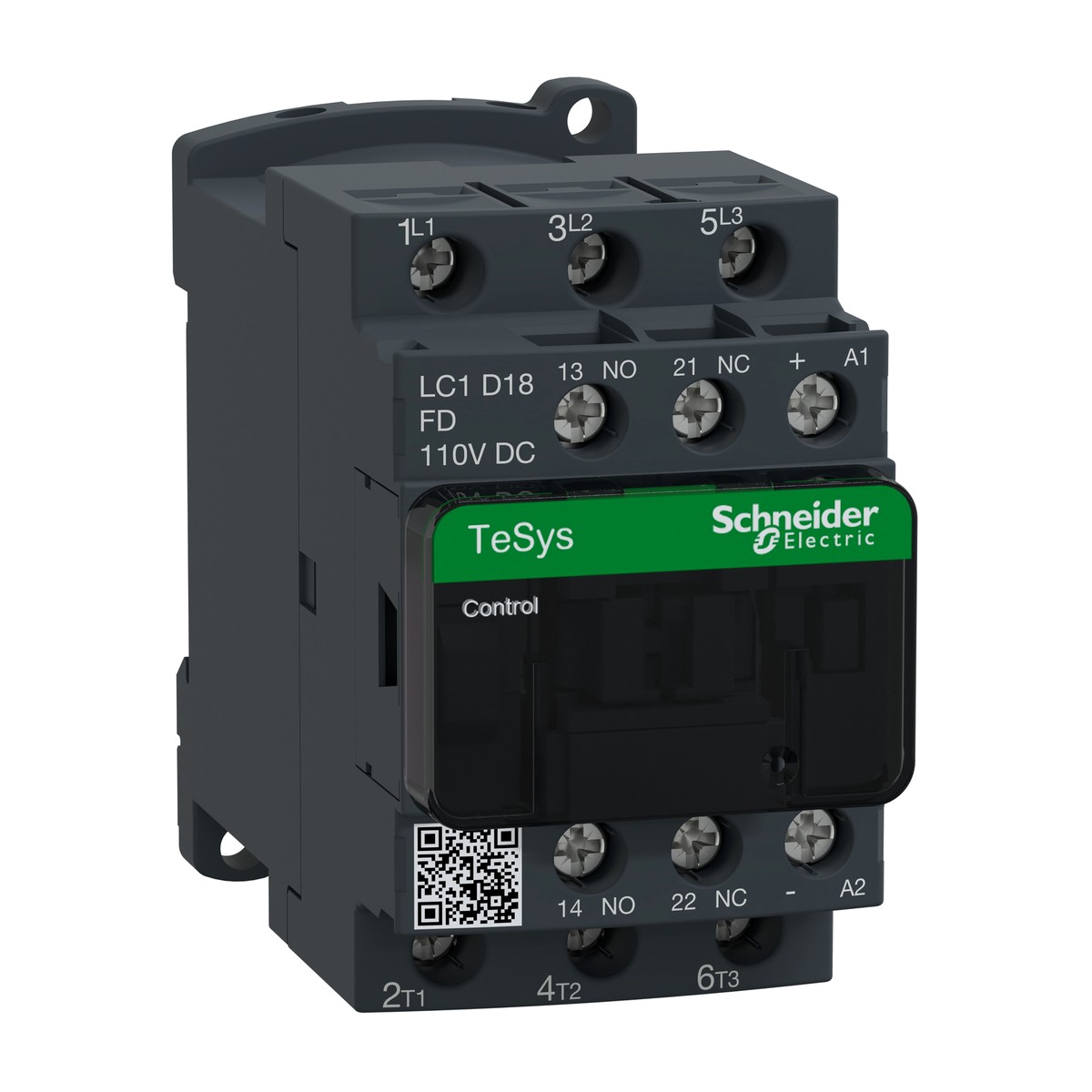

Schneider Electric LC1D18FD TeSys Deca Contactor, 3P 18A AC-3/3e, 110V DC Coil, Screw Clamp. The Schneider Electric LC1D18FD contactor is a robust and reliable 3-pole device from the TeSys Deca range, engineered for efficient motor control and resistive load switching in diverse industrial applications. Featuring a 110V DC control coil and convenient screw clamp terminals, this contactor is rated for 18A AC-3/AC-3e at <=440V, making it suitable for standard industrial power systems. It offers a 7.5 kW motor power rating at 380-400V AC (AC-3), ensuring versatile performance. Its IP20 front face protection guarantees operational safety. With an impressive mechanical durability of 30 Mcycles and electrical durability of 1.65 Mcycles at 18A AC-3, the LC1D18FD is built for longevity. This contactor is an ideal choice for critical operations in demanding sectors across Egypt and the Gulf, including cement production, oil and gas extraction, water treatment facilities, food and beverage processing, textile manufacturing, and various building services. Its dependable performance makes it a preferred component for panel builders and maintenance teams.
Details
- Brand: Schneider Electric
- Part number: LC1D18FD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- Schneider Electric LC1D18FE7 — TeSys Deca LC1D18 contactor 18 A AC-3 3P with 115 V AC coil
- TeSys Deca LC1D18MD Contactor 3P 18A AC-3/3e with 220V DC Coil
- TeSys Deca LC1D18N7 contactor 18A AC-3 3P with 415V AC coil
- Schneider Electric LC1D18P7 — TeSys Deca LC1D Contactor 3P AC-3/3e 18A with 230V AC 50/60Hz Coil
- TeSys Deca LC1D18Q7 contactor 18A AC-3 3P with 380V AC coil
- TeSys Deca LC1D18U7 Contactor, 3P, 18A AC-3/3e, 240V AC Coil
- TeSys Deca LC1D18V7 Contactor, 3P, 18A AC-3/3e, 400V AC coil, screw clamp
- TeSys Deca LC1D25B7 contactor 25A AC-3 3P with 24 V AC 50/60Hz coil
- TeSys Deca LC1D25BD contactor 3P 25A AC-3/3e 24V DC coil
- TeSys Deca LC1D25BL Contactor 25A AC-3 3P with 24V DC coil
- TeSys Deca LC1D25E7 contactor 25A AC-3 3P with 48V AC coil
- TeSys Deca LC1D25ED contactor 25A AC-3 3P with 48V DC coil
Specifications
- Depth
- 95 Mm
- Width
- 45 Mm
- Height
- 77 Mm
- Net weight
- 0.49 Kg
- Motor power kW
- 7.5 KW at 380...400 V AC 50/60 Hz (AC-3)
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Electrical durability
- 1.65 Mcycles 18 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D18FD
- Pole contact composition
- 3 NO
- Product or component type
- Contactor
- [Uc] control circuit voltage
- 110 V DC
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1
- [Ie] rated operational current
- 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Uimp] rated impulse withstand voltage
- 6 KV conforming to IEC 60947
- Permissible ambient air temperature around the device
- -40…60 °C
