LC1D25BD

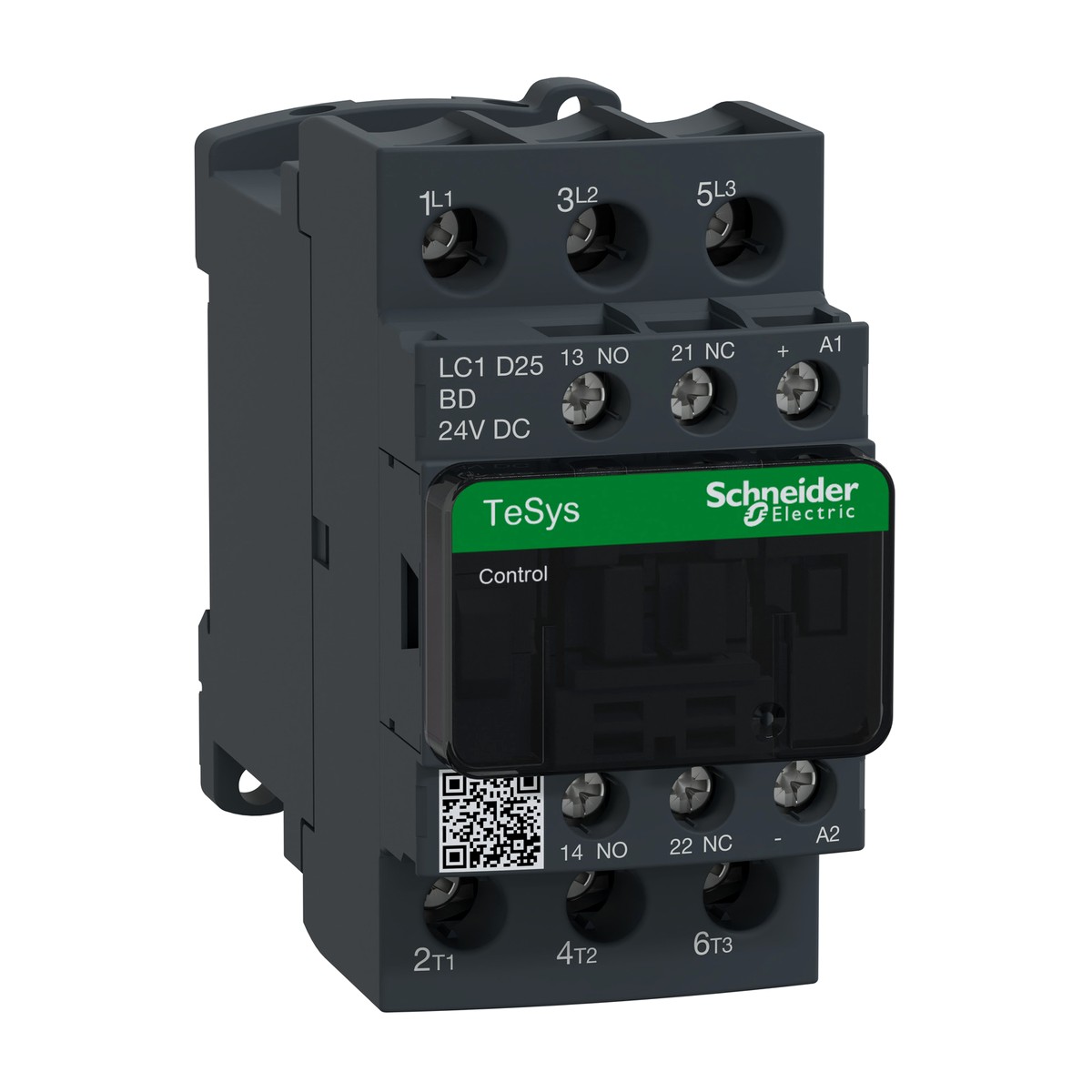

Schneider Electric LC1D25BD TeSys Deca contactor 3P 25A AC-3/3e 24V DC coil. The Schneider Electric LC1D25BD contactor from the TeSys Deca range is a robust, three-pole (3P) IEC power contactor engineered for reliable motor control and resistive load switching in diverse industrial and commercial applications. With an AC-3/AC-3e rated operational current of 25 A at up to 440 V AC, this unit is perfectly suited for managing 11 kW motors operating at the common 380/400 V AC supply prevalent in Egypt and the Gulf. Its 24 V DC control coil, featuring a built-in bidirectional peak limiting diode suppressor, ensures precise and efficient operation. The LC1D25BD comes equipped with convenient screw clamp terminals for secure and straightforward wiring of power (2.5-10 mm²) and control circuits, along with 1 NO + 1 NC auxiliary contacts for enhanced system integration. Designed for durability, it boasts an IP20 front face protection and a wide operating temperature range of -40 to 60 °C. Typical applications include HVAC systems in large buildings, pumps in water treatment facilities, conveyor systems in food and beverage processing, textile machinery, and general motor starters in industrial panels.
Details
- Brand: Schneider Electric
- Part number: LC1D25BD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D25BL Contactor 25A AC-3 3P with 24V DC coil
- TeSys Deca LC1D25E7 contactor 25A AC-3 3P with 48V AC coil
- TeSys Deca LC1D25ED contactor 25A AC-3 3P with 48V DC coil
- TeSys Deca LC1D25EL Contactor, 3P 25A AC-3/3e, 48V DC Coil
- TeSys Deca LC1D25F7 contactor 25A AC-3 3P 110V AC coil
- TeSys Deca LC1D25FD contactor 25 A AC-3 3P with 110 V DC coil
- TeSys Deca LC1D25FE7 contactor 25A AC-3 3P with 115V AC coil
- TeSys Deca LC1D25MD contactor 25A AC-3 3P with 220V DC coil
- TeSys Deca LC1D25N7 contactor 25A AC-3 3P 415V AC coil screw clamp
- TeSys Deca LC1D25P7 contactor 25A AC-3 3P with 230V AC coil
- TeSys Deca LC1D25Q7 contactor 25A AC-3/AC-3e 3P with 380V AC 50/60Hz coil
- TeSys Deca LC1D25U7 contactor 25 A AC-3 3P with 250 V AC 50/60Hz coil
Specifications
- Depth
- 101 Mm
- Width
- 45 Mm
- Height
- 85 Mm
- Net weight
- 0.53 Kg
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Mechanical durability
- 30 Mcycles
- Motor power kW (AC-3)
- 11 KW at 380/400 V AC 50/60 Hz
- Control circuit voltage
- 24 V DC
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D25BD
- Rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
- Electrical durability (AC-3)
- 1.65 Mcycles 25 A at Ue <= 440 V
- Auxiliary contact composition
- 1 NO + 1 NC
- Rated operational current (AC-3)
- 25 A (at <60 °C) at <= 440 V AC
- Tightening torque (Power circuit)
- 2.5 N.m
- Connections - terminals (Power circuit)
- screw clamp terminals 1 2.5…10 mm²
- Permissible ambient air temperature around the device
- -40…60 °C
