LC1D25MD

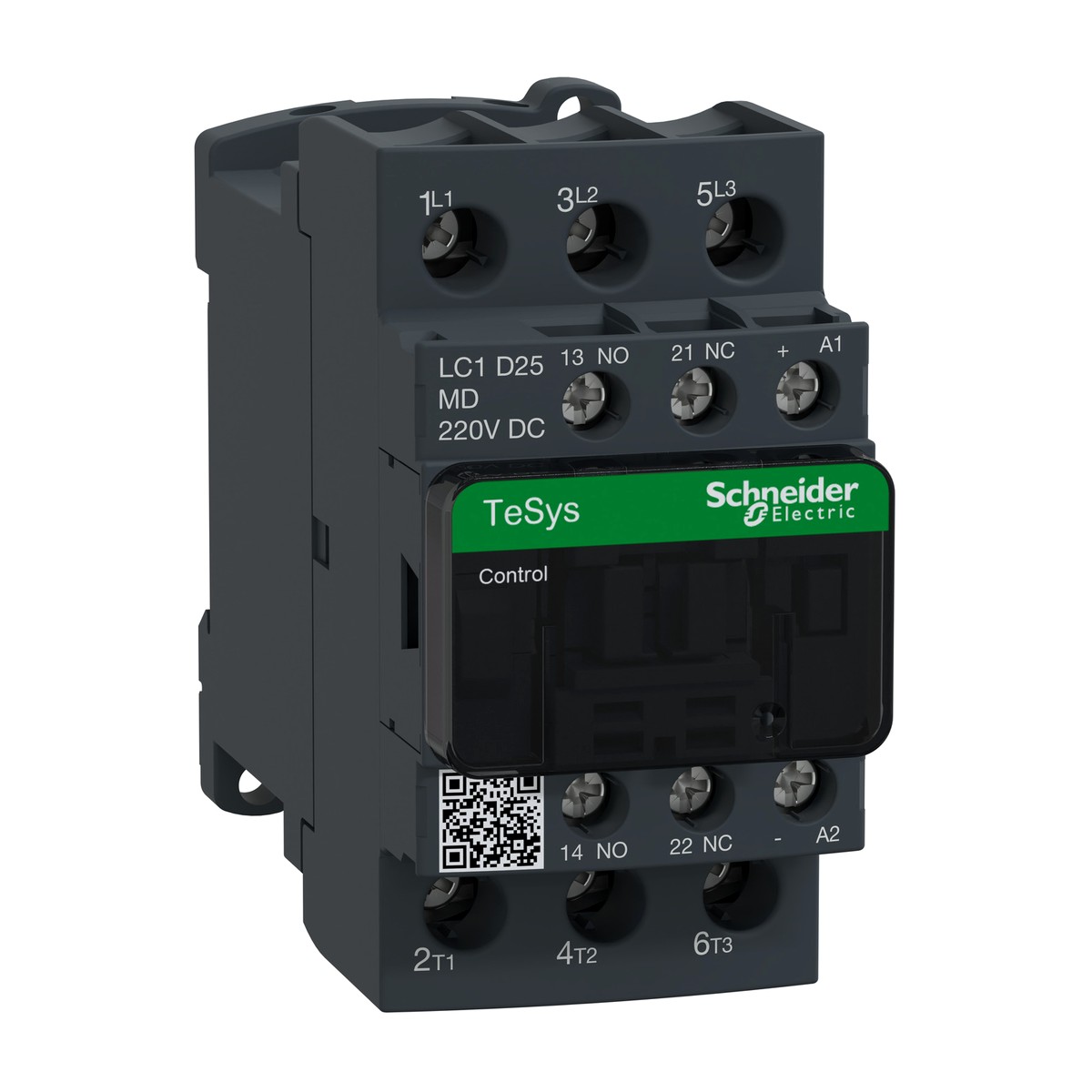

Schneider Electric LC1D25MD TeSys Deca contactor 25A AC-3 3P with 220V DC coil. The Schneider Electric LC1D25MD contactor is a robust and reliable three-pole IEC power contactor from the TeSys Deca range, designed for efficient motor control and load switching in industrial panels. This versatile device handles a rated operational current of 25 A for AC-3 and AC-3e applications at up to 440V AC, and 40 A for AC-1 resistive loads, making it suitable for a wide array of electrical systems. It features a 220V DC control coil, ensuring precise operation within DC control circuits, and utilizes secure screw clamp terminals for both power and control connections. With an IP20 front face protection, it offers good ingress protection for general industrial environments. Typical applications in the Egyptian and Gulf industries include starting and stopping motors in sectors like cement production, oil and gas, water treatment plants, HVAC systems in large buildings, and food and beverage processing. The LC1D25MD offers an impressive mechanical durability of 30 Mcycles and electrical durability of 1.65 Mcycles at 25A AC-3, guaranteeing long-term performance. Its compact dimensions (85mm H x 45mm W x 101mm D) and manageable net weight of 0.53 Kg facilitate easy integration into control panels.
Details
- Brand: Schneider Electric
- Part number: LC1D25MD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D25N7 contactor 25A AC-3 3P 415V AC coil screw clamp
- TeSys Deca LC1D25P7 contactor 25A AC-3 3P with 230V AC coil
- TeSys Deca LC1D25Q7 contactor 25A AC-3/AC-3e 3P with 380V AC 50/60Hz coil
- TeSys Deca LC1D25U7 contactor 25 A AC-3 3P with 250 V AC 50/60Hz coil
- TeSys Deca LC1D25V7 contactor 25 A AC-3 3P with 400 V AC coil
- TeSys Deca LC1D32B7 contactor 32A AC-3 3P with 24V AC coil
- TeSys Deca LC1D32BD contactor 32A AC-3 3P with 24V DC coil
- TeSys Deca LC1D32BL contactor 32A AC-3 3P with 24V DC coil
- TeSys Deca LC1D32E7 contactor 32 A AC-3 3P with 48 V AC 50/60 Hz coil
- TeSys Deca LC1D32ED Contactor 3P 32A AC-3 48V DC Coil Screw Clamp
- TeSys Deca LC1D32EL contactor 32A AC-3 3P 48V DC low consumption coil
- TeSys Deca LC1D32F7 contactor 32A AC-3 3P with 110V AC 50/60Hz coil, screw clamp terminals
Specifications
- Depth
- 101 Mm
- Width
- 45 Mm
- Height
- 85 Mm
- Net weight
- 0.53 Kg
- Poles description
- 3P
- Utilisation category
- AC-3, AC-4, AC-1, AC-3e
- Contactor application
- Resistive load, Motor control
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D25MD
- [Uc] control circuit voltage
- 220 V DC
- Tightening torque (Power circuit)
- 2.5 N.m
- Motor power kW (AC-3 at 380-400 V AC)
- 11 KW
- [Ie] rated operational current (AC-1)
- 40 A (at <60 °C) at <= 440 V AC
- [Ie] rated operational current (AC-3)
- 25 A (at <60 °C) at <= 440 V AC
- Rated breaking capacity (power circuit)
- 450 A at 440 V for power circuit conforming to IEC 60947
- Electrical durability (AC-3 at <= 440 V)
- 1.65 Mcycles 25 A
- [Ui] rated insulation voltage Power circuit
- 690 V conforming to IEC 60947-4-1
- [Ue] rated operational voltage Power circuit
- <= 690 V AC 25...400 Hz, <= 300 V DC
- Permissible ambient air temperature around the device
- -40…60 °C
- Associated fuse rating (power circuit coordination type 2)
- 40 A gG at <= 690 V
