LC1D18ED

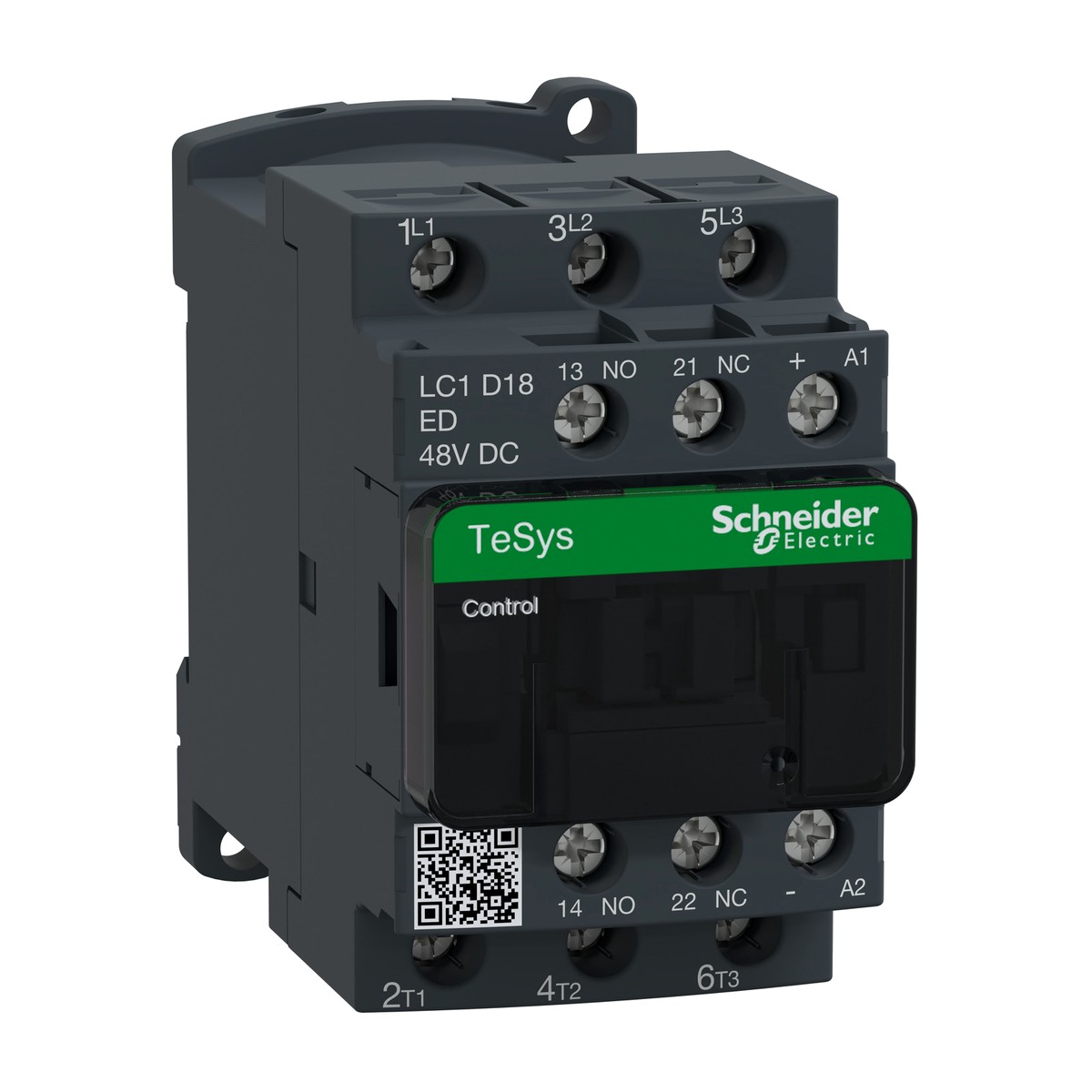

Schneider Electric LC1D18ED TeSys Deca contactor 18 A AC-3 3P with 48V DC coil. The Schneider Electric LC1D18ED TeSys Deca contactor is a high-performance 3-pole IEC power contactor engineered for reliable motor and resistive load switching in diverse industrial panels. It features an 18 A AC-3 rated operational current at <=440V and is equipped with a 48V DC coil, incorporating an integral suppression device for enhanced control circuit stability. The contactor offers versatile control with AC-1, AC-3, AC-3e, and AC-4 utilisation categories, supporting motor power up to 7.5 kW at 380/400V AC 50/60 Hz (AC-3). Secure screw clamp terminals facilitate easy installation, while IP20 front face protection ensures environmental robustness. Boasting mechanical durability of 30 Mcycles and electrical durability of 1.65 Mcycles (18 A AC-3 at Ue <= 440 V), it guarantees long-term operational reliability. This robust Schneider Electric LC1D18ED unit is ideal for applications across Egypt and the Gulf, including critical motor control tasks in cement plants, oil and gas facilities, water treatment stations, food and beverage processing, textile manufacturing, and building services.
Details
- Brand: Schneider Electric
- Part number: LC1D18ED
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- Schneider Electric LC1D18EL — TeSys Deca LC1D Contactor 3P 18A AC-3/3e 48V DC Coil
- TeSys Deca LC1D18F7 contactor 3P(3NO) 18A AC-3 110V AC 50/60Hz coil
- TeSys Deca LC1D18FD Contactor, 3P 18A AC-3/3e, 110V DC Coil, Screw Clamp
- Schneider Electric LC1D18FE7 — TeSys Deca LC1D18 contactor 18 A AC-3 3P with 115 V AC coil
- TeSys Deca LC1D18MD Contactor 3P 18A AC-3/3e with 220V DC Coil
- TeSys Deca LC1D18N7 contactor 18A AC-3 3P with 415V AC coil
- Schneider Electric LC1D18P7 — TeSys Deca LC1D Contactor 3P AC-3/3e 18A with 230V AC 50/60Hz Coil
- TeSys Deca LC1D18Q7 contactor 18A AC-3 3P with 380V AC coil
- TeSys Deca LC1D18U7 Contactor, 3P, 18A AC-3/3e, 240V AC Coil
- TeSys Deca LC1D18V7 Contactor, 3P, 18A AC-3/3e, 400V AC coil, screw clamp
- TeSys Deca LC1D25B7 contactor 25A AC-3 3P with 24 V AC 50/60Hz coil
- TeSys Deca LC1D25BD contactor 3P 25A AC-3/3e 24V DC coil
Specifications
- Net weight
- 0.49 Kg
- Coil technology
- With integral suppression device
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Electrical durability
- 1.65 Mcycles 18 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- Motor power kW (AC-3)
- 7.5 KW at 380/400 V AC 50/60 Hz
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D18ED
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 48 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current (AC-1)
- 32 A (at <60 °C) at <= 440 V AC for power circuit
- [Ie] rated operational current (AC-3)
- 18 A (at <60 °C) at <= 440 V AC for power circuit
- [Ue] rated operational voltage Power circuit
- <= 690 V AC 25...400 Hz, <= 300 V DC
- Permissible ambient air temperature around the device
- -40…60 °C
