LC1D18BD

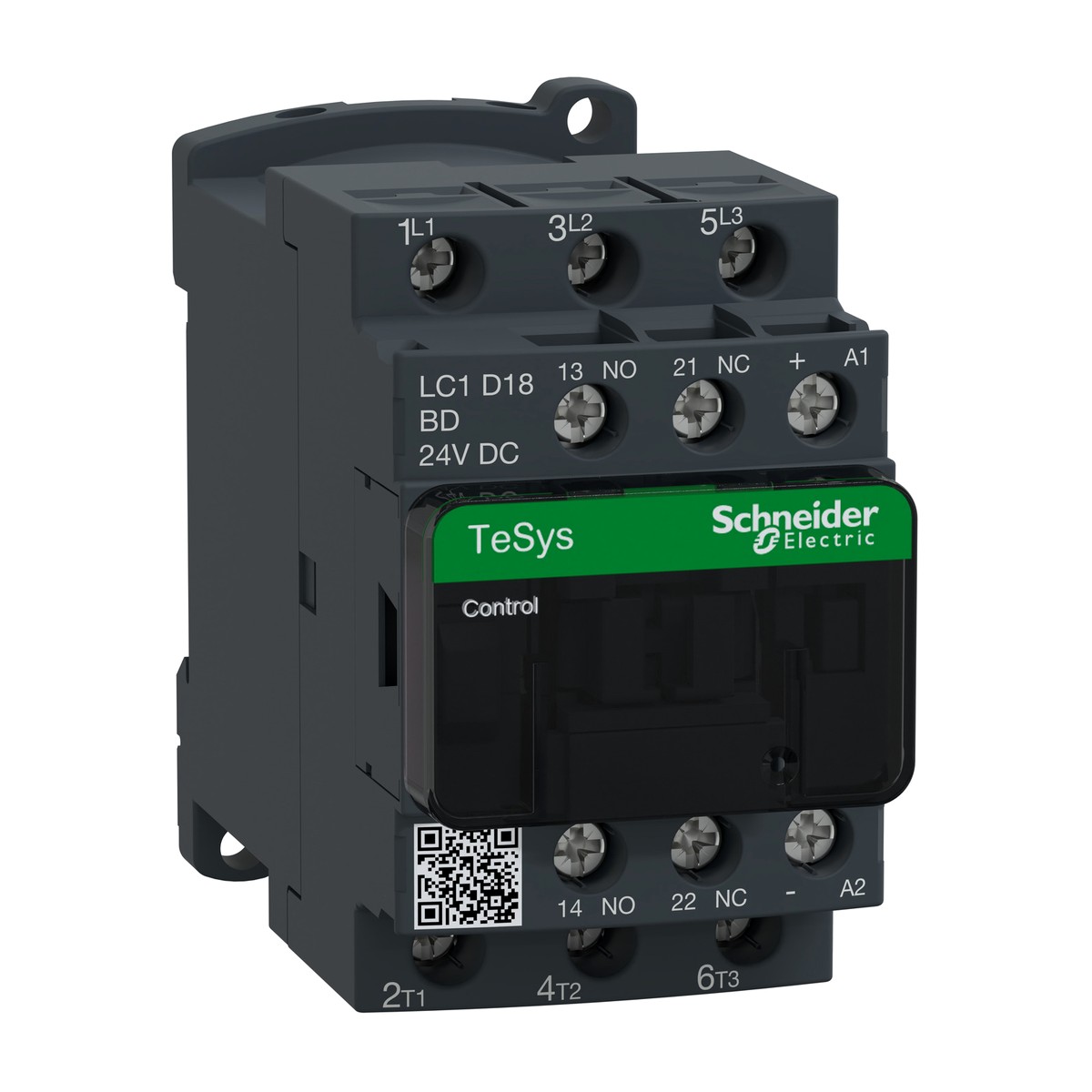

Schneider Electric LC1D18BD TeSys Deca Contactor, 3P, 18A AC-3, 24V DC Coil. The Schneider Electric LC1D18BD TeSys Deca contactor is a robust three-pole device designed for efficient motor control and resistive load switching in diverse industrial and commercial applications. This reliable contactor features a rated operational current of 18A for AC-3/3e utilization categories at up to 440V AC and is controlled by a 24V DC coil, ensuring precise operation. Its ability to manage motor power up to 7.5 kW at 380/400V AC makes it well-suited for the power standards common across Egypt and the Gulf region. Equipped with convenient screw clamp terminals for secure wiring and featuring 1 NO + 1 NC auxiliary contacts, the LC1D18BD offers versatile integration into control circuits. With an IP20 front face protection, it's ideal for installation within electrical panels. From critical infrastructure like water treatment plants and oil and gas facilities to manufacturing sectors such as food and beverage, cement, and textiles, this Schneider Electric contactor provides dependable performance. Its sturdy design and high mechanical and electrical durability ensure long-term, trouble-free service. For more information or to discuss your specific requirements, please request a quote.
Details
- Brand: Schneider Electric
- Part number: LC1D18BD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D18BL Contactor 3P 18A AC-3 24V DC Coil
- TeSys Deca LC1D18E7 contactor 18A AC-3 3P with 48V AC 50/60Hz coil
- TeSys Deca LC1D18ED contactor 18 A AC-3 3P with 48V DC coil
- Schneider Electric LC1D18EL — TeSys Deca LC1D Contactor 3P 18A AC-3/3e 48V DC Coil
- TeSys Deca LC1D18F7 contactor 3P(3NO) 18A AC-3 110V AC 50/60Hz coil
- TeSys Deca LC1D18FD Contactor, 3P 18A AC-3/3e, 110V DC Coil, Screw Clamp
- Schneider Electric LC1D18FE7 — TeSys Deca LC1D18 contactor 18 A AC-3 3P with 115 V AC coil
- TeSys Deca LC1D18MD Contactor 3P 18A AC-3/3e with 220V DC Coil
- TeSys Deca LC1D18N7 contactor 18A AC-3 3P with 415V AC coil
- Schneider Electric LC1D18P7 — TeSys Deca LC1D Contactor 3P AC-3/3e 18A with 230V AC 50/60Hz Coil
- TeSys Deca LC1D18Q7 contactor 18A AC-3 3P with 380V AC coil
- TeSys Deca LC1D18U7 Contactor, 3P, 18A AC-3/3e, 240V AC Coil
Specifications
- Depth
- 95 Mm
- Width
- 45 Mm
- Height
- 77 Mm
- Net weight
- 0.49 Kg
- Device short name
- LC1D
- Poles description
- 3P
- Motor power (AC-3)
- 7.5 KW at 380/400 V AC 50/60 Hz
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Electrical durability
- 1.65 Mcycles 18 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- Screw clamp terminals
- Control circuit voltage
- 24 V DC
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D18BD
- Rated insulation voltage
- 690 V conforming to IEC 60947-4-1 (Power circuit)
- Auxiliary contact composition
- 1 NO + 1 NC
- Rated operational current (AC-3)
- 18 A (at <60 °C) at <= 440 V AC
- Permissible ambient air temperature around the device
- -40…60 °C
