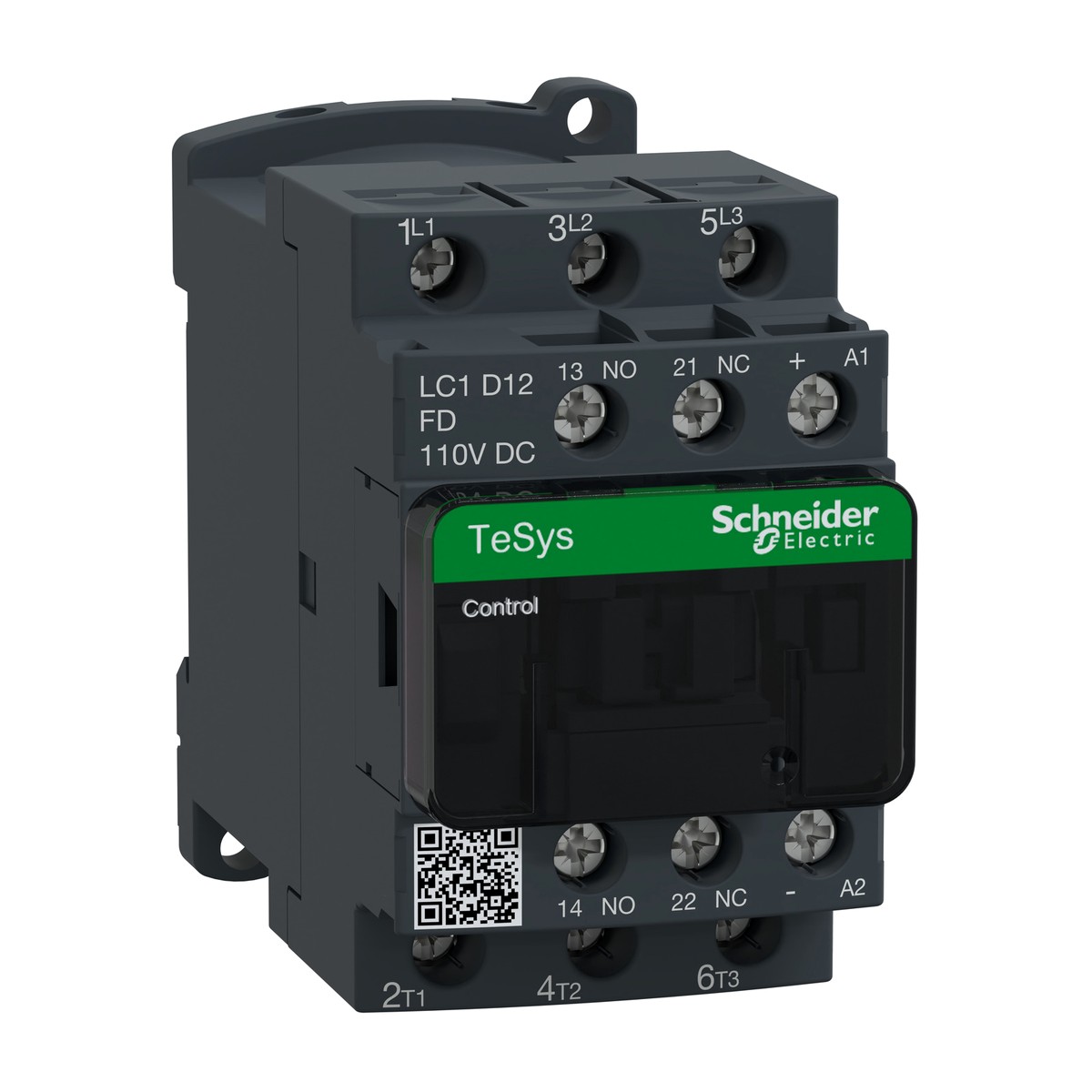

LC1D12FD
Schneider Electric LC1D12FD TeSys Deca contactor 3P 12A AC-3/3e 110V DC coil. The Schneider Electric TeSys Deca LC1D12FD contactor is a robust and reliable 3-pole device engineered for motor control and resistive load switching in a variety of industrial and commercial applications. With a rated operational current of 12A (AC-3 at <=440V) and a 110V DC control coil, this contactor provides precise control for critical operations. It features convenient screw clamp terminals for both power and control circuits, ensuring secure and straightforward installation. The LC1D12FD offers excellent performance for demanding environments, boasting an IP20 front face protection and compliance with key international standards. Its integral suppression device enhances reliability and lifespan. This contactor is well-suited for integration into control panels in industries such as water treatment, HVAC systems, oil and gas facilities, and manufacturing plants across Egypt and the Gulf.
Details
- Brand: Schneider Electric
- Part number: LC1D12FD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D12FE7 contactor 12 A AC-3 3P with 115 V AC 50/60Hz coil
- TeSys Deca LC1D12MD contactor 12 A AC-3 3P with 220 V DC coil
- TeSys Deca LC1D12N7 contactor 12A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D12P7 contactor, 3P(3NO), 12A AC-3, 230V AC 50/60Hz coil
- TeSys Deca LC1D12Q7 contactor 12 A AC-3/3e 3P with 380V AC 50/60Hz coil
- TeSys Deca LC1D12U7 contactor 12A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC1D12V7 Contactor, 3P 12A AC-3, 400V AC Coil
- TeSys Deca LC1D18B7 contactor 18A AC-3 3P with 24V AC coil
- TeSys Deca LC1D18BD Contactor, 3P, 18A AC-3, 24V DC Coil
- TeSys Deca LC1D18BL Contactor 3P 18A AC-3 24V DC Coil
- TeSys Deca LC1D18E7 contactor 18A AC-3 3P with 48V AC 50/60Hz coil
- TeSys Deca LC1D18ED contactor 18 A AC-3 3P with 48V DC coil
Specifications
- Net weight
- 0.485 Kg
- Motor power kW
- 5.5 KW at 380...400 V AC 50/60 Hz (AC-3)
- Coil technology
- With integral suppression device
- Mounting support
- Rail, Plate
- Poles description
- 3P
- Utilisation category
- AC-1, AC-3, AC-3e, AC-4
- Electrical durability
- 2 Mcycles 12 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- Product certifications
- UL, CCC, CSA, Marine, UKCA, EAC
- Connections - terminals
- Screw clamp terminals (Power & Control circuit)
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Rated breaking capacity
- 250 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D12FD
- [Uc] control circuit voltage
- 110 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-4-1 (Power circuit)
- [Ie] rated operational current
- 12 A (at <60 °C) at <= 440 V AC AC-3/3e for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz, Power circuit: <= 300 V DC
- Permissible ambient air temperature around the device
- -40…60 °C
