LC1D12ED

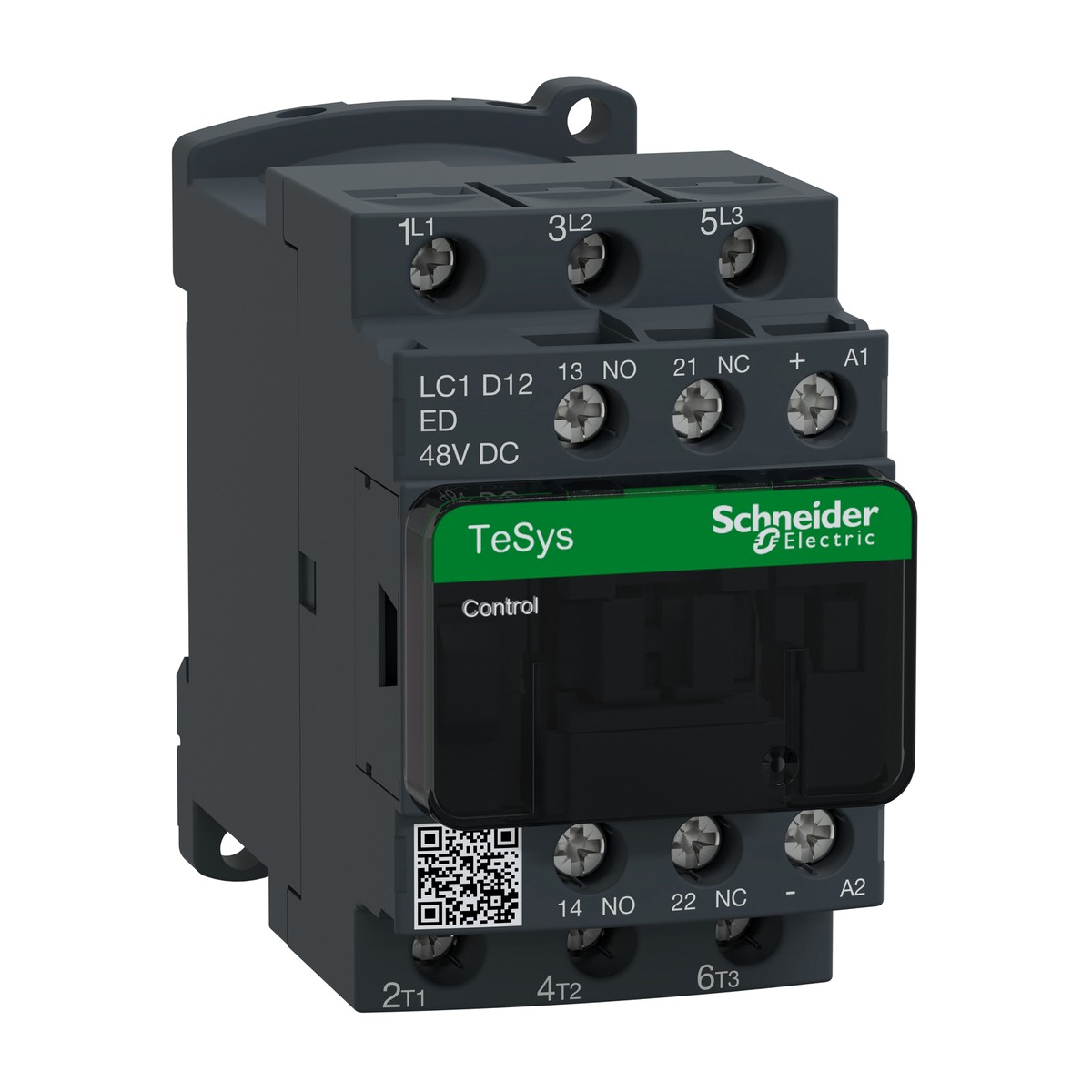

Schneider Electric LC1D12ED TeSys Deca contactor 12A AC-3 3P with 48V DC coil. The Schneider Electric LC1D12ED contactor from the TeSys Deca range is a high-performance 3-pole IEC power contactor designed for reliable motor control and resistive load switching in diverse industrial and commercial applications. With an AC-3/AC-3e rated operational current of 12A at up to 440V AC and an AC-1 rating of 25A, this robust device offers excellent performance. It features a 48V DC control circuit coil with integral suppression and convenient screw clamp terminals for secure wiring. The LC1D12ED is engineered for durability, boasting 30 Mcycles mechanical and 2 Mcycles electrical endurance (AC-3/AC-3e at 12A). Its IP20 front face protection ensures safety in panel installations. This versatile contactor is a crucial component for automation and control systems in Egyptian and Gulf industries such as cement production, oil and gas, water treatment plants, food and beverage processing, textiles, and building services. Ensure smooth operation and longevity for your critical electrical circuits.
Details
- Brand: Schneider Electric
- Part number: LC1D12ED
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D12EL Contactor 12A AC-3 3P 48V DC coil
- TeSys Deca LC1D12F7 Contactor 12A AC-3 3P with 110V AC Coil
- TeSys Deca LC1D12FD contactor 3P 12A AC-3/3e 110V DC coil
- TeSys Deca LC1D12FE7 contactor 12 A AC-3 3P with 115 V AC 50/60Hz coil
- TeSys Deca LC1D12MD contactor 12 A AC-3 3P with 220 V DC coil
- TeSys Deca LC1D12N7 contactor 12A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D12P7 contactor, 3P(3NO), 12A AC-3, 230V AC 50/60Hz coil
- TeSys Deca LC1D12Q7 contactor 12 A AC-3/3e 3P with 380V AC 50/60Hz coil
- TeSys Deca LC1D12U7 contactor 12A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC1D12V7 Contactor, 3P 12A AC-3, 400V AC Coil
- TeSys Deca LC1D18B7 contactor 18A AC-3 3P with 24V AC coil
- TeSys Deca LC1D18BD Contactor, 3P, 18A AC-3, 24V DC Coil
Specifications
- Poles description
- 3P
- Utilisation category
- AC-1, AC-3, AC-3e, AC-4
- Mechanical durability
- 30 Mcycles
- Motor power kW (AC-3)
- 5.5 KW at 380...400 V AC 50/60 Hz
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D12ED
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 48 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- Electrical durability AC-3/AC-3e
- 2 Mcycles 12 A at Ue <= 440 V
- [Ie] rated operational current AC-1
- 25 A (at <60 °C) at <= 440 V AC
- [Ie] rated operational current AC-3/AC-3e
- 12 A (at <60 °C) at <= 440 V AC
- [Ui] rated insulation voltage Power circuit
- 690 V conforming to IEC 60947-4-1
- [Ue] rated operational voltage Power circuit
- <= 690 V AC 25...400 Hz
- Permissible ambient air temperature around the device
- -40…60 °C
