LC1D12BD

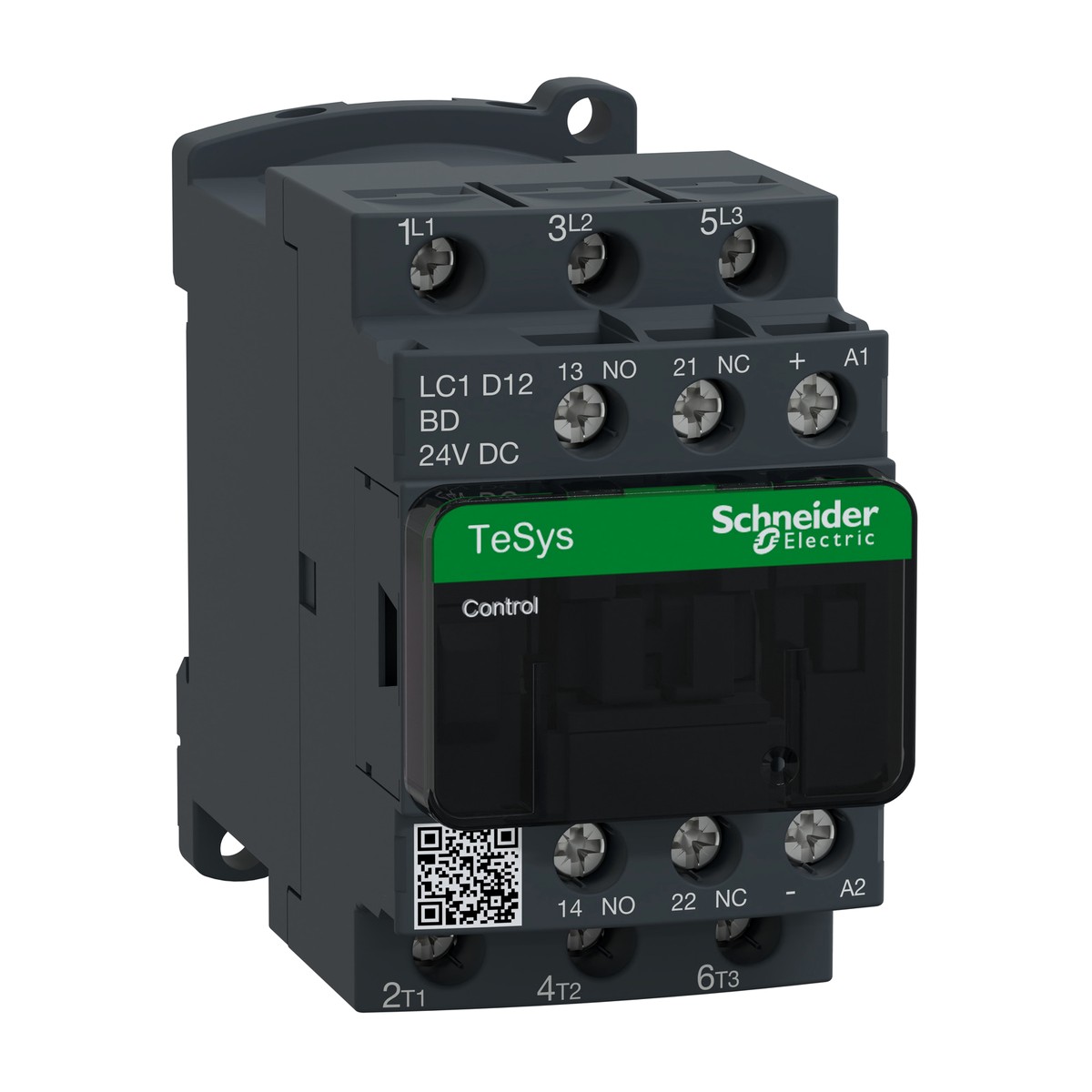

Schneider Electric LC1D12BD TeSys Deca contactor 12A AC-3 3P 24V DC coil. The Schneider Electric LC1D12BD is a robust 3-pole TeSys Deca contactor, engineered for efficient motor control and switching resistive loads in diverse industrial applications. This reliable component boasts a rated operational current of 12 A for AC-3/AC-3e applications up to 440V AC, and 25 A for AC-1 resistive loads, offering significant versatility. It operates with a precise 24V DC control circuit, aligning with modern automation needs. Capable of managing motor power up to 5.5 kW at 380-400 V AC (AC-3), it is well-suited for typical power requirements in Egypt and the Gulf. The contactor features reliable screw clamp terminals for secure wiring and includes an integrated 1 NO + 1 NC auxiliary contact for enhanced functionality. Designed to stringent IEC standards, the LC1D12BD ensures high performance, safety, and a mechanical durability of 30 Mcycles. Its compact dimensions (77 mm H x 45 mm W x 95 mm D) and IP20 front face protection facilitate seamless panel integration. This Schneider Electric contactor is a dependable solution for critical sectors like water treatment, oil and gas, cement production, food and beverage, and building services across the region. For a high-quality contactor offering proven reliability and long operational life, contact us today to request a quote for the LC1D12BD.
Details
- Brand: Schneider Electric
- Part number: LC1D12BD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D12BL contactor 12 A AC-3 3P with 24 V DC low consumption coil
- TeSys Deca LC1D12E7 contactor 12 A AC-3/3e 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC1D12ED contactor 12A AC-3 3P with 48V DC coil
- TeSys Deca LC1D12EL Contactor 12A AC-3 3P 48V DC coil
- TeSys Deca LC1D12F7 Contactor 12A AC-3 3P with 110V AC Coil
- TeSys Deca LC1D12FD contactor 3P 12A AC-3/3e 110V DC coil
- TeSys Deca LC1D12FE7 contactor 12 A AC-3 3P with 115 V AC 50/60Hz coil
- TeSys Deca LC1D12MD contactor 12 A AC-3 3P with 220 V DC coil
- TeSys Deca LC1D12N7 contactor 12A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D12P7 contactor, 3P(3NO), 12A AC-3, 230V AC 50/60Hz coil
- TeSys Deca LC1D12Q7 contactor 12 A AC-3/3e 3P with 380V AC 50/60Hz coil
- TeSys Deca LC1D12U7 contactor 12A AC-3 3P with 240V AC 50/60Hz coil
Specifications
- Depth
- 95 Mm
- Width
- 45 Mm
- Height
- 77 Mm
- Net weight
- 0.485 Kg
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Contactor application
- Resistive load, Motor control
- Electrical durability
- 2 Mcycles 12 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- Motor power kW (AC-3)
- 5.5 KW at 380/400 V AC 50/60 Hz
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D12BD
- Pole contact composition
- 3 NO
- Product or component type
- Contactor
- [Uc] control circuit voltage
- 24 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current AC-1
- 25 A (at <60 °C) at <= 440 V AC for power circuit
- [Ie] rated operational current AC-3
- 12 A (at <60 °C) at <= 440 V AC for power circuit
- [Ue] rated operational voltage Power circuit
- <= 690 V AC 25...400 Hz, <= 300 V DC
