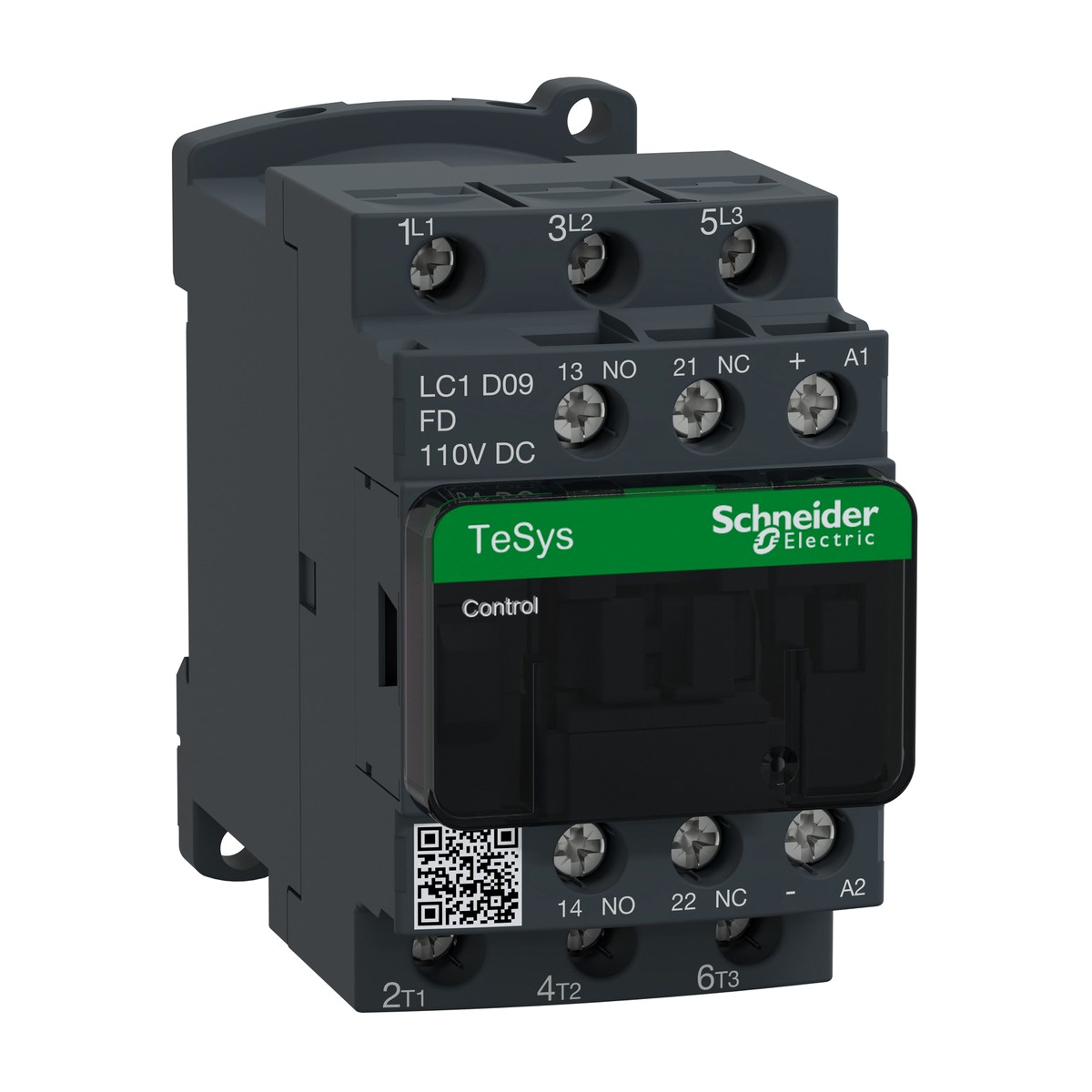

LC1D09FD
Schneider Electric LC1D09FD TeSys Deca contactor 9 A AC-3/3e 3P with 110 V DC coil. The Schneider Electric TeSys Deca LC1D09FD contactor is a robust and reliable three-pole power contactor designed for efficient motor control and switching of resistive loads in industrial and commercial panels. Part of the renowned TeSys Deca range, this LC1D series contactor features 3 normally open (3NO) main power poles and a 1 normally open + 1 normally closed (1NO+1NC) auxiliary contact configuration, ensuring versatile control options. It is rated for 9 A under AC-3/AC-3e utilization categories at up to 440 V AC, and 25 A for AC-1 resistive loads. The integrated 110 V DC coil offers precise and dependable operation, while screw clamp terminals simplify wiring. With an IP20 front face protection and a mechanical durability of 30 Mcycles, the LC1D09FD is built for demanding environments. This contactor is ideal for various applications across the Gulf and Egyptian industries, including motor starting in water treatment plants, control circuits in oil and gas facilities, automation in food and beverage production, and general load switching in building services and cement factories.
Details
- Brand: Schneider Electric
- Part number: LC1D09FD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D09MD contactor 9A AC-3/3e 3P with 220V DC coil
- TeSys Deca LC1D09N7 contactor 9A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D09P7 Contactor, 3P, 9A AC-3, 230V AC Coil
- TeSys Deca LC1D09Q7 contactor 9 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D09U7 Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC1D09V7 Contactor, 3P(3NO), 9A AC-3/3e, 400V AC 50/60Hz coil, screw clamp
- TeSys Deca LC1D12B7 contactor 12A AC-3 3P (3NO) with 24V AC 50/60Hz coil
- TeSys Deca LC1D12BD contactor 12A AC-3 3P 24V DC coil
- TeSys Deca LC1D12BL contactor 12 A AC-3 3P with 24 V DC low consumption coil
- TeSys Deca LC1D12E7 contactor 12 A AC-3/3e 3P with 48 V AC 50/60Hz coil
- TeSys Deca LC1D12ED contactor 12A AC-3 3P with 48V DC coil
- TeSys Deca LC1D12EL Contactor 12A AC-3 3P 48V DC coil
Specifications
- Net weight
- 0.48 Kg
- Terminal type
- screw clamp terminals
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-4, AC-3, AC-1, AC-3e
- Contactor application
- Resistive load, Motor control
- Mechanical durability
- 30 Mcycles
- Control circuit voltage
- 110 V DC
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D09FD
- Pole contact composition
- 3 NO
- Auxiliary contact composition
- 1 NO + 1 NC
- Rated operational current (AC-1)
- 25 A (at <60 °C) at <= 440 V AC
- Rated operational current (AC-3)
- 9 A (at <60 °C) at <= 440 V AC
- Motor power kW (AC-3, 380-400V AC)
- 4 KW
- Rated insulation voltage (Power circuit)
- 690 V conforming to IEC 60947-4-1
- Permissible ambient air temperature around the device
- -40…60 °C
