LC1D09BD

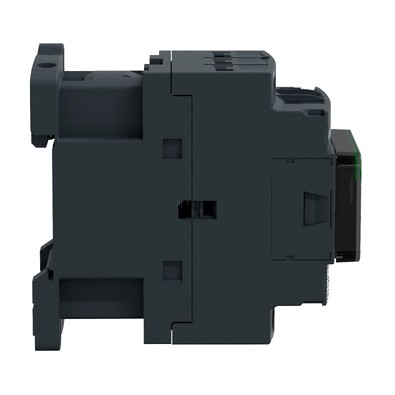

Schneider Electric LC1D09BD TeSys Deca contactor 9 A AC-3 3P with 24 V DC coil. The Schneider Electric TeSys Deca LC1D09BD contactor is a robust and reliable solution designed for efficient motor control and resistive load switching in industrial panels. This 3-pole (3 NO) contactor features a rated operational current of 9 A for AC-3 applications at up to 440 V AC, making it suitable for a wide range of machinery. Its 24 V DC control circuit voltage is perfectly suited for direct integration with PLC systems, ensuring precise and reliable operation. Equipped with screw clamp terminals for secure wiring, the LC1D09BD boasts an IP20 front face protection and impressive durability, including 30 Mcycles mechanical and 2 Mcycles electrical endurance for AC-3. Ideal for critical applications across Egypt and the Gulf, such as water treatment plants, HVAC systems, food and beverage processing, textile manufacturing, and building services, this Schneider Electric contactor ensures optimal performance and safety.
Details
- Brand: Schneider Electric
- Part number: LC1D09BD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- Schneider Electric TeSys Deca LC1D09BL contactor 9 A AC-3/3e 3P with 24 V DC low consumption coil
- TeSys Deca LC1D09E7 Contactor, 9A AC-3, 3P, 48V AC 50/60Hz Coil
- TeSys Deca LC1D09ED contactor 9A AC-3 3P with 48V DC coil
- TeSys Deca LC1D09EL contactor 9A AC-3 3P with 48V DC low consumption coil
- TeSys Deca LC1D09FD contactor 9 A AC-3/3e 3P with 110 V DC coil
- TeSys Deca LC1D09MD contactor 9A AC-3/3e 3P with 220V DC coil
- TeSys Deca LC1D09N7 contactor 9A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D09P7 Contactor, 3P, 9A AC-3, 230V AC Coil
- TeSys Deca LC1D09Q7 contactor 9 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D09U7 Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC1D09V7 Contactor, 3P(3NO), 9A AC-3/3e, 400V AC 50/60Hz coil, screw clamp
- TeSys Deca LC1D12B7 contactor 12A AC-3 3P (3NO) with 24V AC 50/60Hz coil
Specifications
- Depth
- 95 Mm
- Width
- 45 Mm
- Height
- 77 Mm
- Net Weight
- 0.48 Kg
- Product Type
- Contactor
- Poles Description
- 3P
- Utilisation Category
- AC-3, AC-3e, AC-1, AC-4
- Mechanical Durability
- 30 Mcycles
- Connections - Terminals
- Screw clamp terminals
- Control Circuit Voltage
- 24 V DC
- IP Degree of Protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D09BD
- Pole Contact Composition
- 3 NO
- Electrical Durability (AC-3)
- 2 Mcycles 9 A at Ue <= 440 V
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Motor Power (AC-3, 380/400 V AC)
- 4 KW
- Rated Operational Current (AC-3)
- 9 A (at <60 °C) at <= 440 V AC
- Rated Operational Voltage (Power Circuit)
- <= 690 V AC 25...400 Hz
- Conventional Free Air Thermal Current (Power Circuit)
- 25 A (at 60 °C)
