LC1D09ED

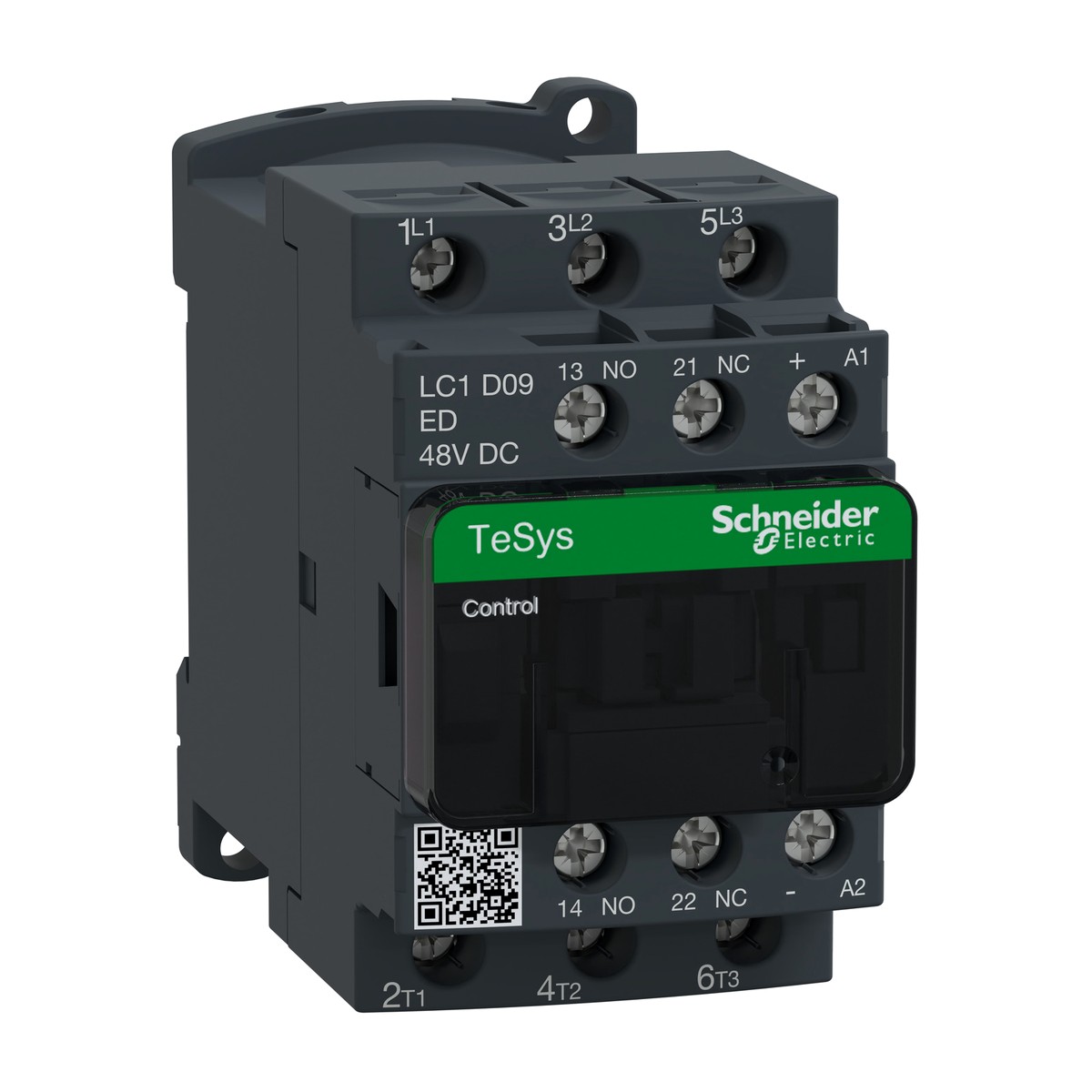

Schneider Electric LC1D09ED TeSys Deca contactor 9A AC-3 3P with 48V DC coil. The Schneider Electric LC1D09ED is a robust 3-pole TeSys Deca contactor designed for reliable motor and load switching applications. This essential electrical component features a 9A AC-3 rated operational current at up to 440V AC, making it suitable for a wide range of industrial duties. Its 48V DC control coil, equipped with a built-in bidirectional peak limiting diode suppressor, ensures precise and efficient operation. Versatile in its application, the LC1D09ED supports various utilisation categories including AC-1, AC-3, AC-3e, and AC-4, handling motor power up to 4 KW at 380-400V AC. It offers secure screw clamp terminals for both power and control circuits, simplifying installation. With an IP20 front face protection, excellent mechanical durability of 30 Mcycles, and an electrical durability of 2 Mcycles (AC-3 at 440V), this contactor is built for demanding environments. Its broad operating temperature range of -40 to 60 °C further enhances reliability. Ideal for critical systems in Egyptian and Gulf industries such as water treatment, oil and gas, cement production, food and beverage processing, textiles, and building services, the Schneider Electric LC1D09ED contactor provides dependable performance. Auxiliary contacts (1 NO + 1 NC) are included for flexible control configurations.
Details
- Brand: Schneider Electric
- Part number: LC1D09ED
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D09EL contactor 9A AC-3 3P with 48V DC low consumption coil
- TeSys Deca LC1D09FD contactor 9 A AC-3/3e 3P with 110 V DC coil
- TeSys Deca LC1D09MD contactor 9A AC-3/3e 3P with 220V DC coil
- TeSys Deca LC1D09N7 contactor 9A AC-3/3e 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D09P7 Contactor, 3P, 9A AC-3, 230V AC Coil
- TeSys Deca LC1D09Q7 contactor 9 A AC-3 3P with 380 V AC 50/60Hz coil
- TeSys Deca LC1D09U7 Contactor 9A AC-3 3P with 240V AC 50/60Hz coil
- TeSys Deca LC1D09V7 Contactor, 3P(3NO), 9A AC-3/3e, 400V AC 50/60Hz coil, screw clamp
- TeSys Deca LC1D12B7 contactor 12A AC-3 3P (3NO) with 24V AC 50/60Hz coil
- TeSys Deca LC1D12BD contactor 12A AC-3 3P 24V DC coil
- TeSys Deca LC1D12BL contactor 12 A AC-3 3P with 24 V DC low consumption coil
- TeSys Deca LC1D12E7 contactor 12 A AC-3/3e 3P with 48 V AC 50/60Hz coil
Specifications
- Net weight
- 0.48 Kg
- Motor power kW
- 4 KW at 380...400 V AC 50/60 Hz (AC-3)
- Mounting support
- Rail, Plate
- Protective cover
- With
- Poles description
- 3P
- Utilisation category
- AC-3, AC-1, AC-4, AC-3e
- Electrical durability
- 2 Mcycles 9 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D09ED
- [Uc] control circuit voltage
- 48 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz, Power circuit: <= 300 V DC
- Permissible ambient air temperature around the device
- -40…60 °C
